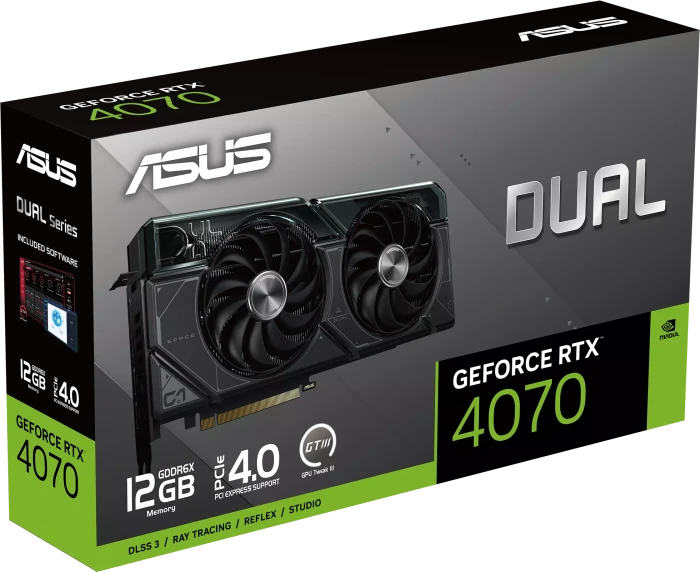

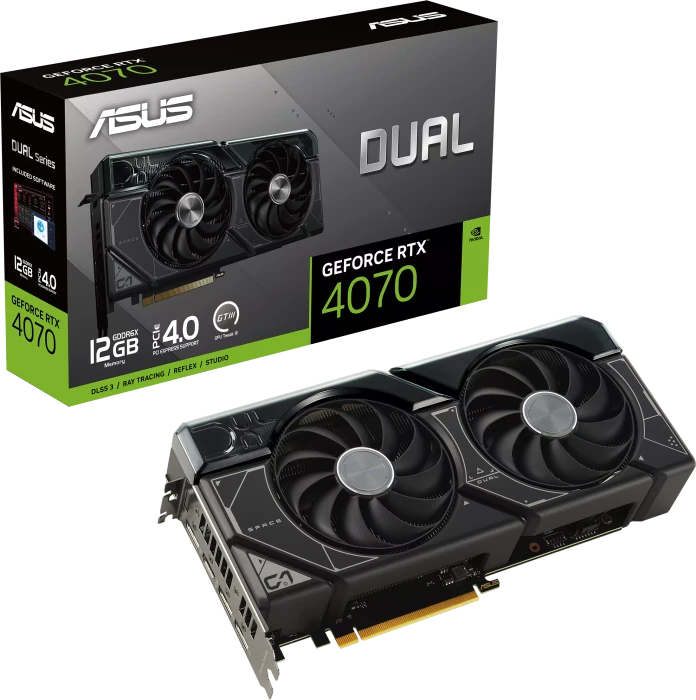

ASUS Dual GeForce RTX 4070, DUAL-RTX4070-12G, 12GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz (Standard-Profil), 1920MHz (OC-Profil)
- Takt Boost
- 2475MHz (Standard-Profil), 2505MHz (OC-Profil)
- Übertaktung
- +30MHz Boost (OC-Profil)
- Kühlung
- 2x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 200W (NVIDIA)
- Stromanschlüsse
- 1x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode)
- Gesamthöhe
- Triple Slot (2.56 Slots)
GRATISVERSAND.
ASUS Dual GeForce RTX 4070 12GB GDDR6X, IP5X, Auto-Extreme Technologie, 144-Stunden-Validierungsprogramm, HDMI 2.1a, DP 1.4a
(Preis kann jetzt höher sein!)
- Modell
- NVIDIA GeForce RTX 4070
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz (Standard-Profil), 1920MHz (OC-Profil)
- Takt Boost
- 2475MHz (Standard-Profil), 2505MHz (OC-Profil)
- Übertaktung
- +30MHz Boost (OC-Profil)
- Kühlung
- 2x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 200W (NVIDIA)
- Stromanschlüsse
- 1x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode)
- Gesamthöhe
- Triple Slot (2.56 Slots)
- Abmessungen
- 267.01x133.94x51.13mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 233 TOPS (FP8), 116.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 466 TOPS (FP8), 233 TOPS (FP16)
- GPU-Rechenleistung
- 29.44 TFLOPS (FP16), 29.44 TFLOPS (FP32), 0.46 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD104 (AD104-250-A1/AD104-251-A1)
- Chip-Ausbau
- 76.7% aktive Recheneinheiten (46/60 SM)
- Chip-Konfiguration
- 46SM (5888SP/184TMU/64ROP), 46 RT-Cores, 184 Tensor-Cores, 36MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 294mm², monolithisch, 35.8 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 116.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4070 Ti
GeForce RTX 4070 SUPER
GeForce RTX 4070
RTX 4000 SFF Ada
RTX 4000 Ada
L4 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 12.04.2023, Verkaufsstart: 13.04.2023, UVP: 599 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 - 12GB GDDR6X - Desktop
- Letztes Preisupdate
- Gelistet seit
- 13.04.2023, 19:05
Bewertung für ASUS Dual GeForce RTX 4070, DUAL-RTX4070-12G, 12GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu ASUS Dual GeForce RTX 4070, DUAL-RTX4070-12G, 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
guru3d.com: ASUS GeForce RTX 4070 DUAL edition - Okay cooling and performance at MSRP (translate)
The DUAL GeForce RTX 4070 is an MSRP-targeted product, showcasing reference clock frequencies and performance within a 1% margin compared to the Founder's Edition card. With its notable performance in the 2560x1440 resolution range, the ASUS DUAL GeForce RTX 4070 is an fair option for users who desire an elegant design without sacrificing quality. Though not the fastest card on the market, ASUS provides flexibility for customization, allowing an 8% increase in the power limiter to boost the clock speed to 2.9 GHz. Paired with GDDR6 memory running at 23 Gbps, the ASUS DUAL GeForce RTX 4070 offers promising tweakable performance as well, reaching 6% over the founder edition card (but that one tweaks just as well). This card offers three DisplayPort and one HDMI output options, as well as an attractive backplate design. The already impressive factory-tuned performance can be further boosted, particularly when playing games that support DLSS(3). The RTX 4070 excels in providing excellent performance, energy efficiency, and visual quality, positioning itself as a more environmentally friendly alternative to the 4080/4090 graphics cards. With HDMI 2.1 support and a generous 12GB VRAM, the card effortlessly handles high-resolution gaming and intricate creative tasks. While priced similarly to the founder edition, this card is an appealing option for those who value both performance and style. In the end, this is a really proper 4070 baseline product. All AIB partners have a hard time battling that founder edition card from NVIDIA, though, at $599 it is gaming the most silent and great design products with that same baseline performance and tweakability. It's a tough call to make. We, however, find this MSRP model to be among the better ones, and as such it comes recommended (pricing aside from the discussion of course).
-
techpowerup.com: ASUS GeForce RTX 4070 Dual Review (translate)
Averaged over the 25 games in our test suite, at 1440p resolution, the ASUS RTX 4070 Dual ends up a tiny 1% slower than the NVIDIA RTX 4070 Founders Edition. This is the case for all cards tested today, they are all running slightly lower clocks than the FE, despite all having the same base and boost clock rating, with the same power limit. Binning does play a role in the clocks the NVIDIA Boost algorithm selects, so maybe NVIDIA is putting the best GPUs on the FE, while other AICs reserve those for their factory-overclocked models. Either way, these differences are negligible in daily use, there's no way you'll be able to notice such a tiny difference.
- Serienübergreifende Testberichte
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
