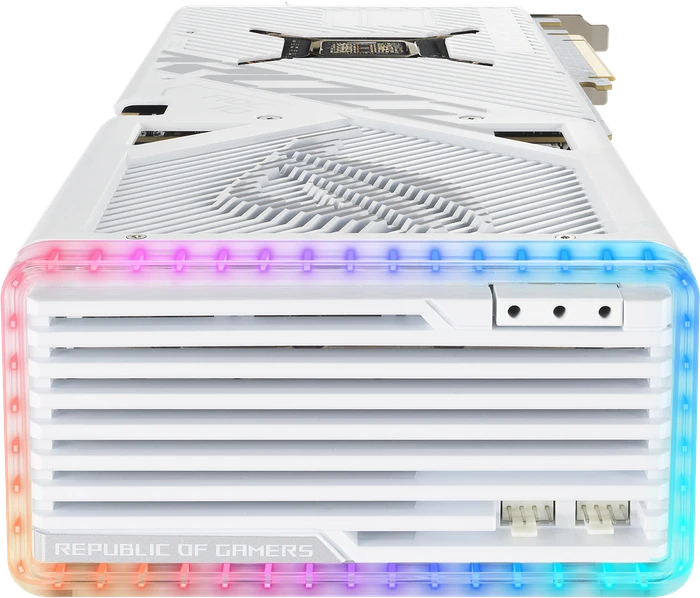

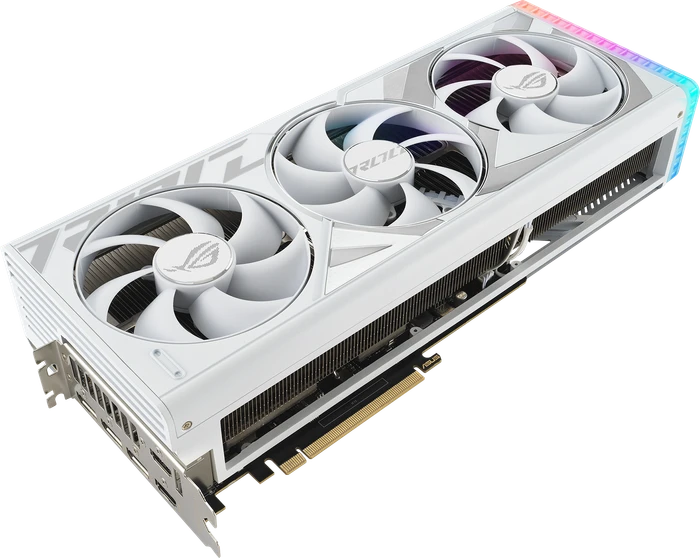

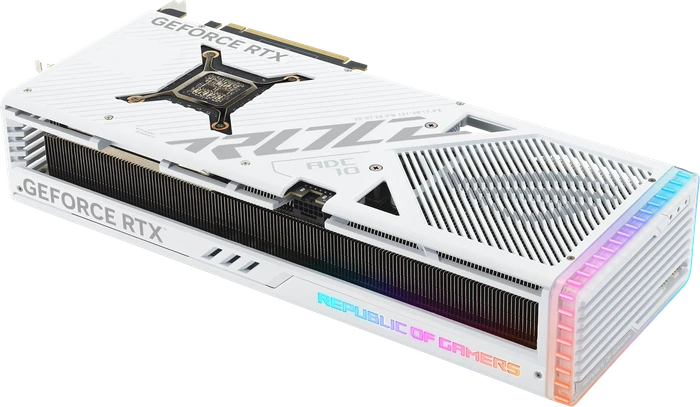

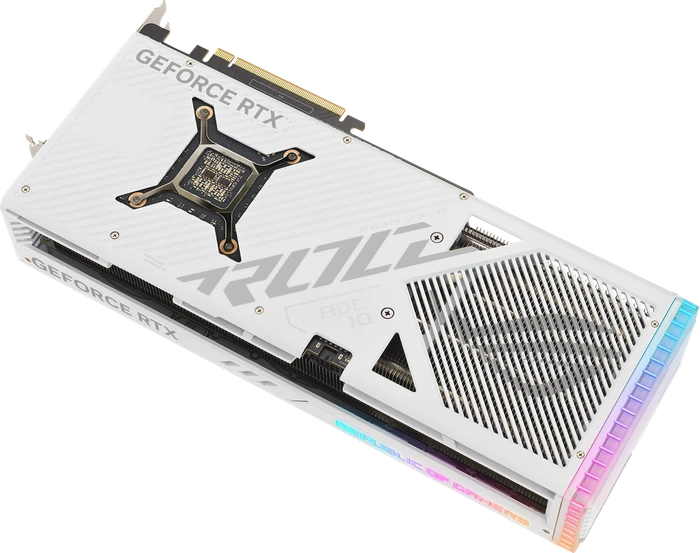

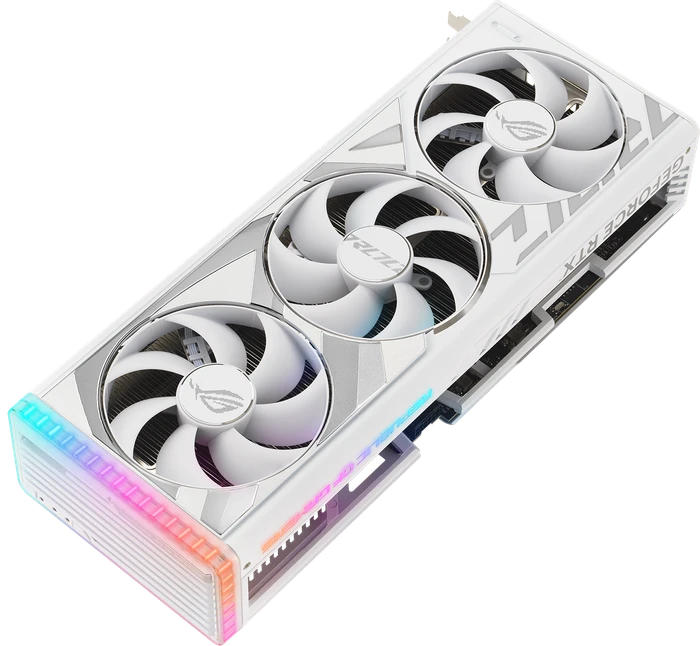

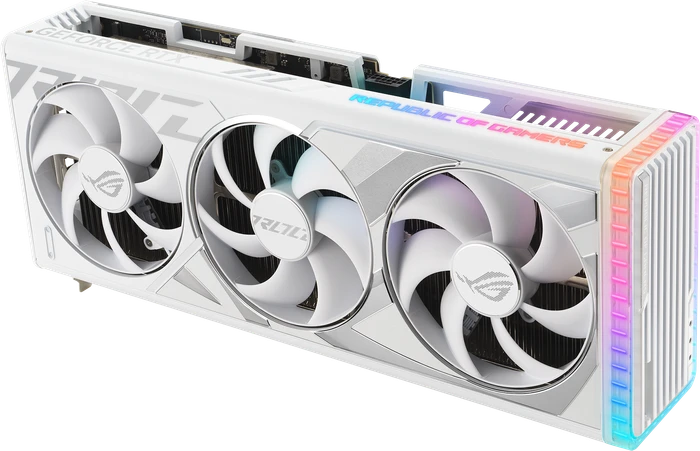

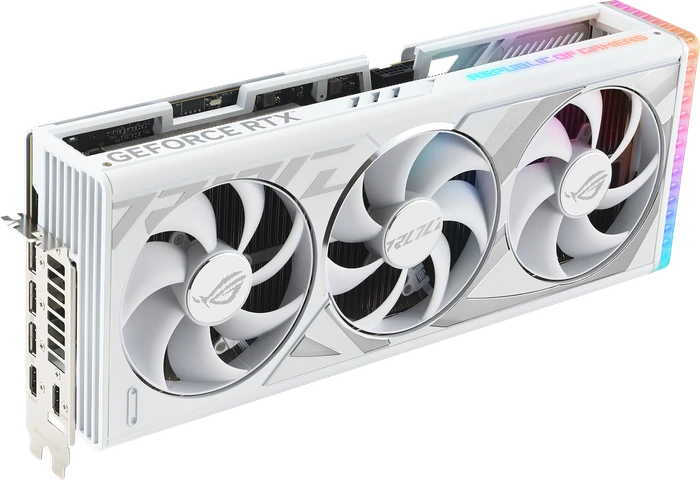

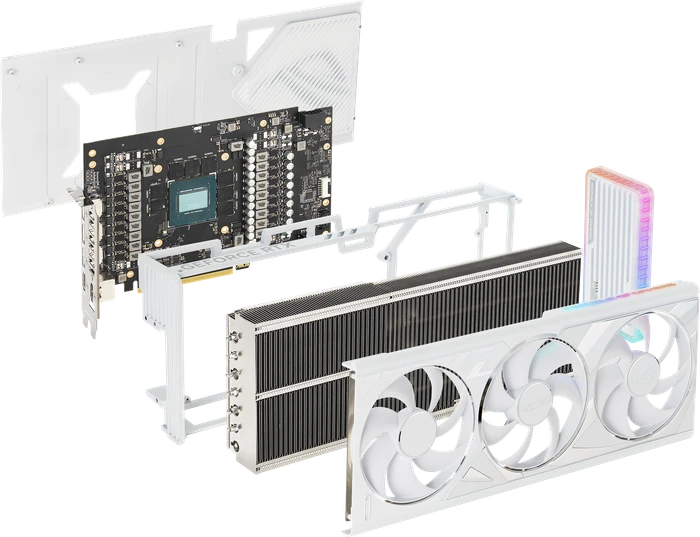

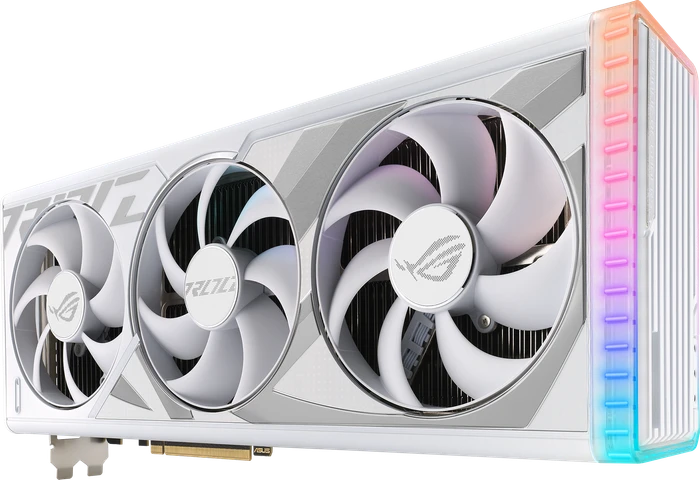

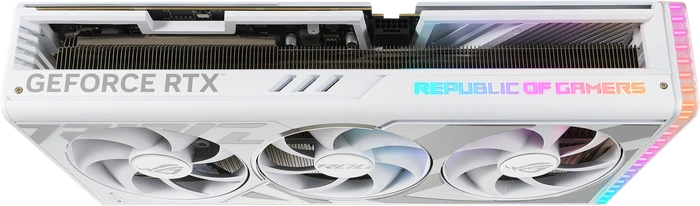

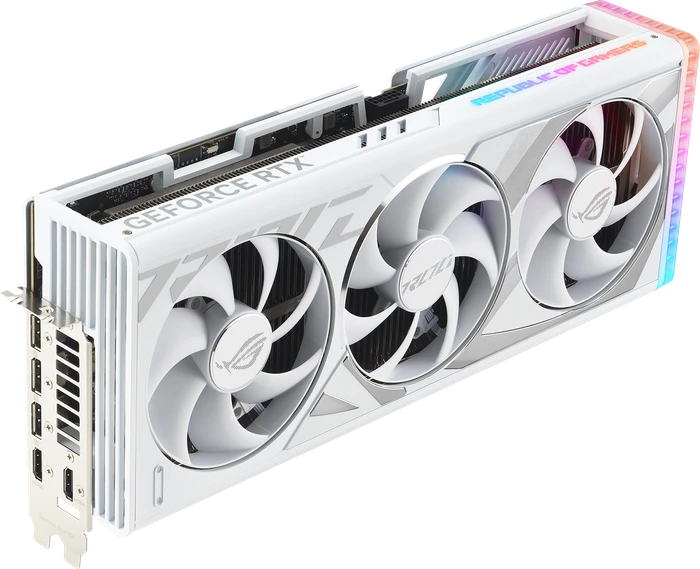

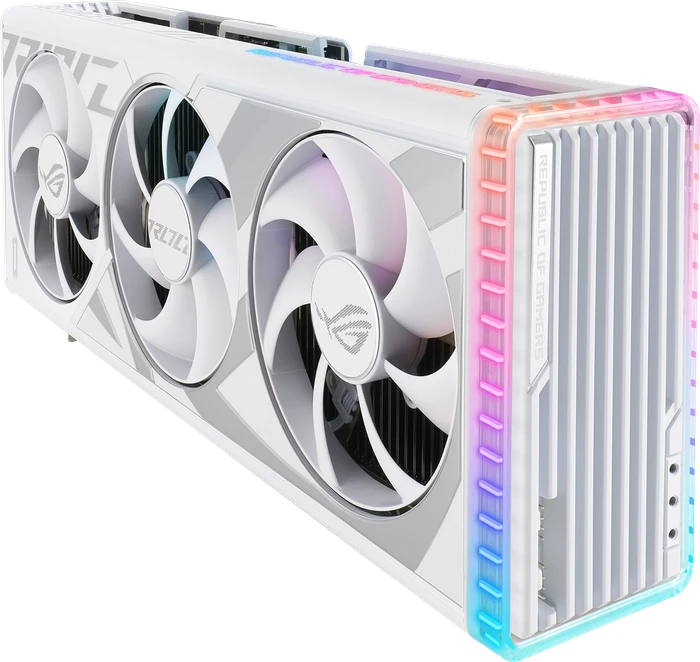

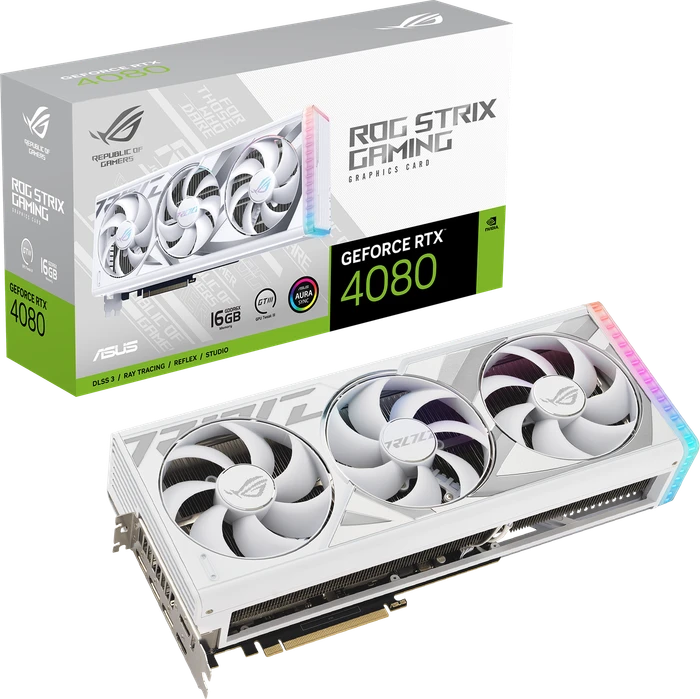

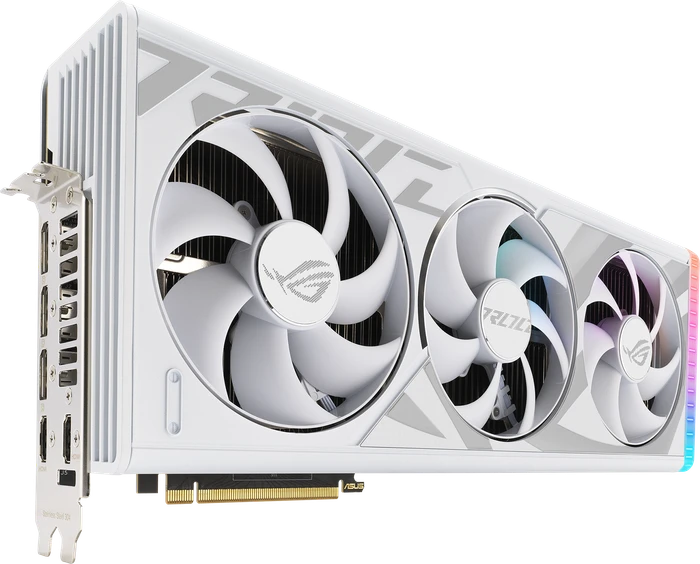

ASUS ROG Strix GeForce RTX 4080, ROG-STRIX-RTX4080-16G-WHITE, 16GB GDDR6X, 2x HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4080
- Speicher
- 16GB GDDR6X, 256bit, 22.4Gbps, 1400MHz, 717GB/s
- Takt Basis
- 2205MHz (Standard-Profil), 2205MHz (OC-Profil)
- Takt Boost
- 2505MHz (Standard-Profil), 2535MHz (OC-Profil)
- Übertaktung
- +30MHz Boost (OC-Profil)

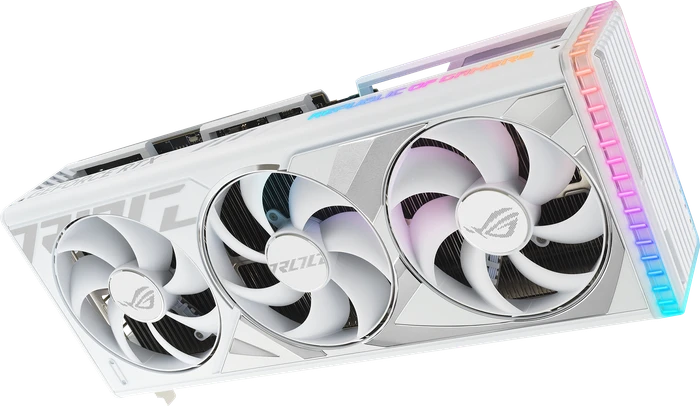

- Kühlung
- 3x Axial-Lüfter (110mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 320W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)

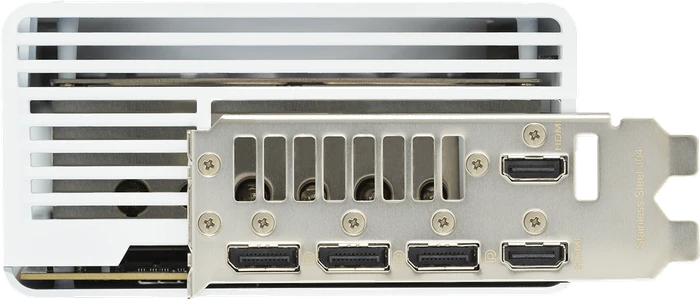

- Anschlüsse
- 2x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten

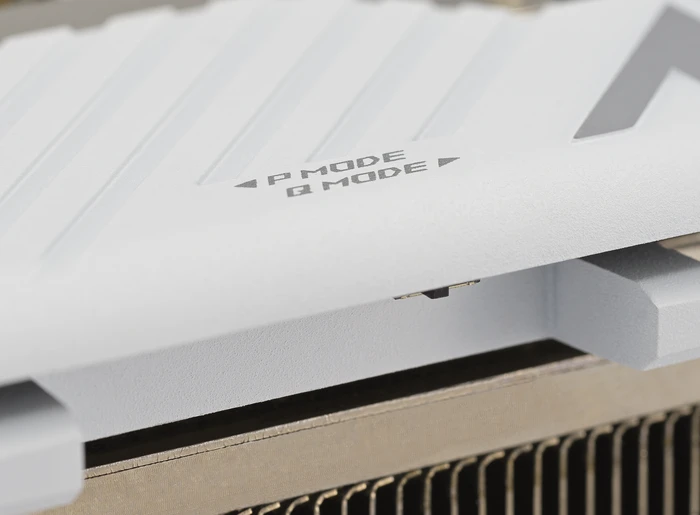

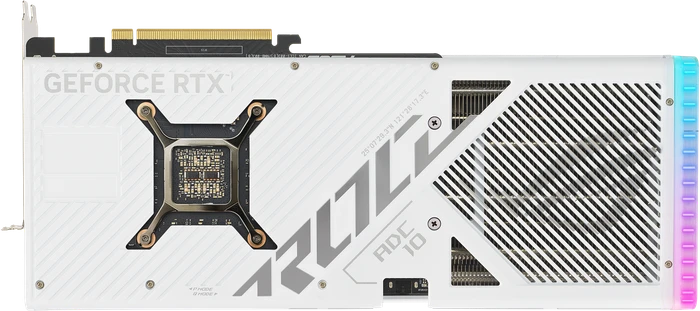

- Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), White Build-kompatibel (weiße Farbgebung), Lüftersteuerung (2x 4-Pin), Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
- Gesamthöhe
- Quad Slot (3.5 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-9)
ASUS TUF Gaming GeForce RTX 4080 OC, TUF-RTX4080-O16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IB0-M0NA00ASUS GeForce RTX 4080 Noctua OC Edition, RTX4080-O16G-NOCTUA, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IB2-M0NA00ASUS TUF Gaming GeForce RTX 4080, TUF-RTX4080-16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IB1-M0NA00ASUS ROG Strix GeForce RTX 4080 OC, ROG-STRIX-RTX4080-O16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IC0-M0NA00ASUS ProArt GeForce RTX 4080 OC, PROART-RTX4080-O16G, 16GB GDDR6X, HDMI, 3x DP
90YV0IX1-M0NA00ASUS ProArt GeForce RTX 4080, PROART-RTX4080-16G, 16GB GDDR6X, HDMI, 3x DP
90YV0IX0-M0NB00ASUS ROG Strix GeForce RTX 4080 OC, ROG-STRIX-RTX4080-O16G-WHITE, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IC3-M0NA00ASUS ROG Strix GeForce RTX 4080, ROG-STRIX-RTX4080-16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
90YV0IC1-M0NA00Ähnliche Produkte (Top-10 in PCIe)
ASUS Prime Radeon RX 9070 XT OC, PRIME-RX9070XT-O16G, 16GB GDDR6, HDMI, 3x DP
90YV0L71-M0NA00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00ASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RGIGABYTE GeForce RTX 5080 Windforce OC SFF 16G, 16GB GDDR7, HDMI, 3x DP
GV-N5080WF3OC-16GDXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9- Modell
- NVIDIA GeForce RTX 4080
- Speicher
- 16GB GDDR6X, 256bit, 22.4Gbps, 1400MHz, 717GB/s
- Takt Basis
- 2205MHz (Standard-Profil), 2205MHz (OC-Profil)
- Takt Boost
- 2505MHz (Standard-Profil), 2535MHz (OC-Profil)
- Übertaktung
- +30MHz Boost (OC-Profil)
- Kühlung
- 3x Axial-Lüfter (110mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 320W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 2x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), White Build-kompatibel (weiße Farbgebung), Lüftersteuerung (2x 4-Pin), Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
- Gesamthöhe
- Quad Slot (3.5 Slots)
- Abmessungen
- 357.6x149.3x70.1mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 390 TOPS (FP8), 195 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 780 TOPS (FP8), 390 TOPS (FP16)
- GPU-Rechenleistung
- 48.64 TFLOPS (FP16), 48.64 TFLOPS (FP32), 0.76 TFLOPS (FP64)

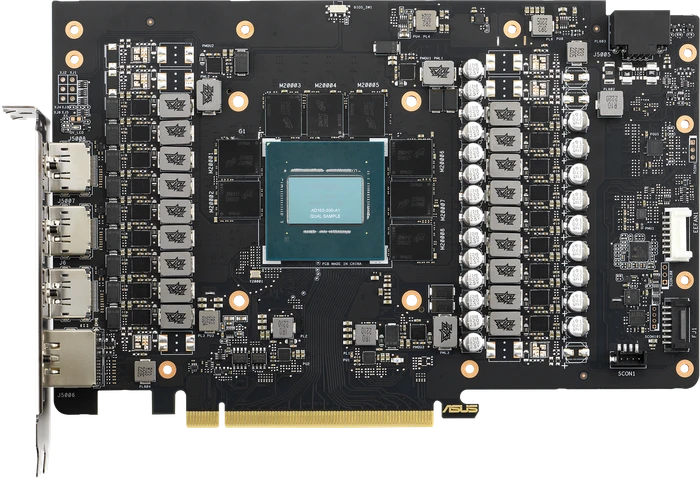

- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-300-A1/AD103-301-A1)
- Chip-Ausbau
- 95% aktive Recheneinheiten (76/80 SM)
- Chip-Konfiguration
- 76SM (9728SP/304TMU/112ROP), 76 RT-Cores, 304 Tensor-Cores, 64MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 195 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 20.09.2022, Verkaufsstart: 16.11.2022, UVP: 1.199 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4080 - 16GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 19.12.2022, 15:12
-
Stand: 22.09.2022 .jpg [358.34 KB]
Bewertung für ASUS ROG Strix GeForce RTX 4080, ROG-STRIX-RTX4080-16G-WHITE, 16GB GDDR6X, 2x HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu ASUS ROG Strix GeForce RTX 4080, ROG-STRIX-RTX4080-16G-WHITE, 16GB GDDR6X, 2x HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
-
overclock3d.net: ASUS RTX 4080 ROG Strix Review (translate)
The Strix RTX 4080 is 90 MHz fast than the next best at stock. The peak speed is less than this gain, with the Strix 60 MHz ahead of the next best. However, it is in the world of average clock speed where the gains are to be found. We thought the 2760 MHz the Nvidia Founders Edition obtained was impressive, and the 2800 MHz of the Gigabyte Aero was even better, the ASUS Strix achieves 2881 MHz average. This shows up time and again in our testing where the Strix wasn't just a tiny bit better, occasionally swapping places with other cards. Nope. It was to be found at the upper end of our graph and basically stayed there.
-
guru3d.com: ASUS ROG GeForce RTX 4080 STRIX Gaming review (translate)
ASUS's ROG Strix GeForce RTX 4080 OC Edition graphics card is a knockout, and the revamped design is the card's calling card. This card's striking configuration departs from the familiar appearance of prior ROG Strix products, guaranteeing that you will not be able to take your eyes off it. We're impressed and surprised to notice what STRIX brings to the table. First off though, you'll need space to fit this card in your PC; 36cm, 2.4kg and 3.5 slots thick hits a specific panic button on my end. But in the end, all values returned are right with low temps, low noise and high performance. I am, however, not amused about the coil whine we got from this card; it was pretty bad. Some will hate that; others are not bothered, I guess. From a hardware and performance point of view, the GeForce RTX 4080 is downright fantastic. However, we live in challenging times, with a war close to the EU border, and soaring energy prices, life has gotten much harder and expensive. That does make products like those shown today harder to defend; then again we can't blame NVIDIA for the state of the world in 2022. We hope to see affordable low-energy products sooner rather than later from NVIDIA. As a piece of hardware all by itself, we can only applaud the 4080. The ADA GPU architecture can perform skillfully and excellently. A good chunk of extra shader cores brings in nearly 1.5x raw shader performance and even better Raytracing and Tensor core performance. Underlying technologies like Shader Execution Reordering (SER) and DLSS 3.0 make the new product and Series 4000 shine.The GeForce RTX 4080 offers staggering numbers. Starting at $1199, however, it's very expensive. If you have the wallet leniency and play games in Ultra HD or at the very least start at a monitor resolution of 2560x1440, we can't argue that it'll be a great addition towards any enthusiast-class gaming rig. Take Microsoft Flight Simulator 2020 combined with DLSS 3.0, you can fly at 100+ FPS in the highest resolutions. Cyberpunk at UHD with raytracing and DLSS3 quickly passes 100 FPS. This purebred Ultra HD card shines in that area, whether shading (regularly rendered games) or hybrid ray-tracing + DLSS3 is used. Compared to the mighty 4090, this still is a more economical product series offering massive performance.
