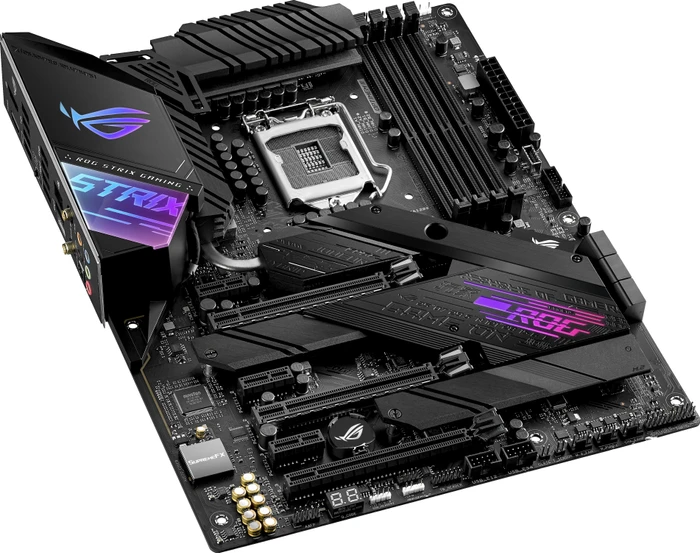

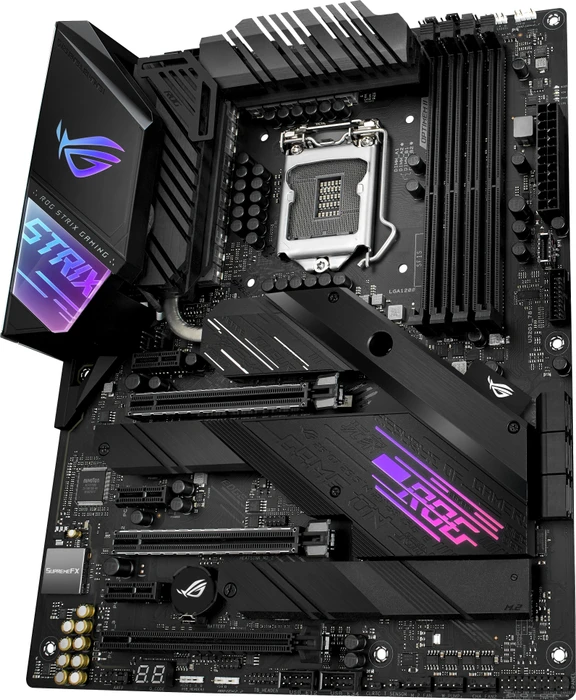

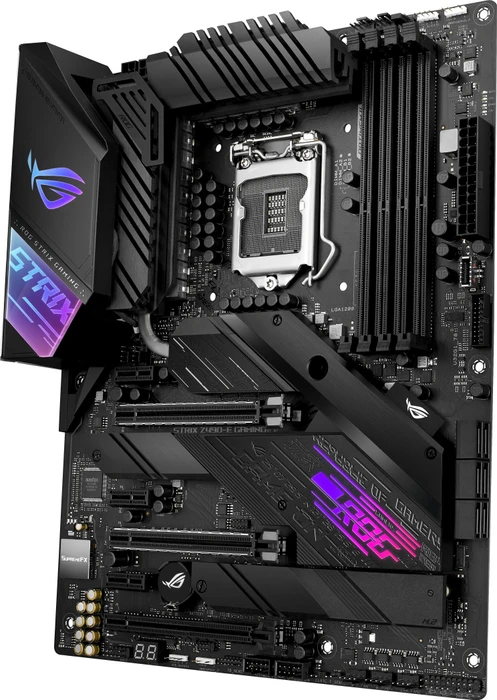

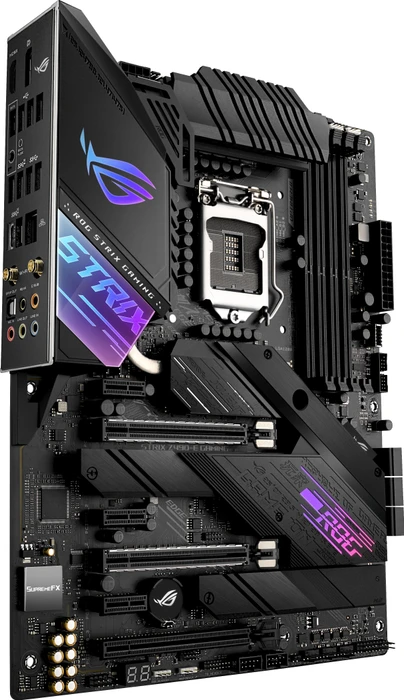

ASUS ROG Strix Z490-E Gaming
90MB12P0-M0EAY0- Formfaktor
- ATX
- Sockel
- Intel 1200
- Chipsatz
- Intel Z490
- CPU-Kompatibilität
- Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000
- RAM
- 4x DDR4 DIMM, dual PC4-38400U/DDR4-4800 (OC), max. 128GB (UDIMM)
- Erweiterungsslots
- 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 3x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, belegt mit WiFi+BT-Modul)
- Anschlüsse extern

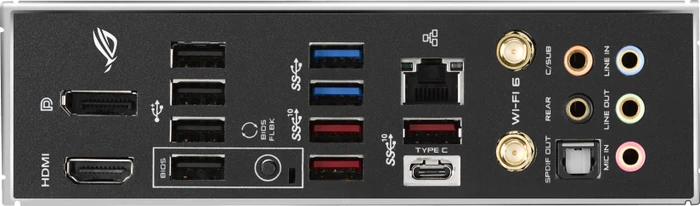

- 1x HDMI 1.4b (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s, Z490), 3x USB-A 3.1 (10Gb/s, Z490), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Intel I225-V), 5x Klinke, 1x Toslink, 2x Antennenanschluss (RP-SMA)
- Anschlüsse intern
- 1x USB-C 3.1 Key-A Header (10Gb/s, Z490), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (Z490), 1x Thunderbolt-Header 13-Pin (14-1)
- Header Kühlung
- 2x CPU-Lüfter 4-Pin, 4x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Pumpe 4-Pin, 1x Thermal-Sensor
- Header Beleuchtung
- 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches
- USB BIOS Flashback (extern)
- Audio
- 7.1 (Realtek ALC1220/ASUS SupremeFX), DTS Sound Unbound
Stand:
Filiale Innsbruck: kein Liefertermin
Filiale Klagenfurt: kein Liefertermin
Versandlager: kein Liefertermin
Stand:
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
27 Produkteigenschaften
- Formfaktor
- ATX
- Sockel
- Intel 1200
- Chipsatz
- Intel Z490
- CPU-Kompatibilität
- Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000
- RAM
- 4x DDR4 DIMM, dual PC4-38400U/DDR4-4800 (OC), max. 128GB (UDIMM)
- Erweiterungsslots
- 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 3x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, belegt mit WiFi+BT-Modul)

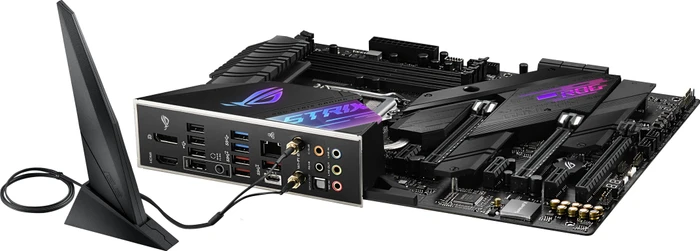

- Anschlüsse extern
- 1x HDMI 1.4b (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s, Z490), 3x USB-A 3.1 (10Gb/s, Z490), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Intel I225-V), 5x Klinke, 1x Toslink, 2x Antennenanschluss (RP-SMA)
- Anschlüsse intern
- 1x USB-C 3.1 Key-A Header (10Gb/s, Z490), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (Z490), 1x Thunderbolt-Header 13-Pin (14-1)
- Header Kühlung
- 2x CPU-Lüfter 4-Pin, 4x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Pumpe 4-Pin, 1x Thermal-Sensor
- Header Beleuchtung
- 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches
- USB BIOS Flashback (extern)
- Audio
- 7.1 (Realtek ALC1220/ASUS SupremeFX), DTS Sound Unbound
- Grafik
- iGPU
- Wireless
- Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX201), Bluetooth 5.2
- RAID-Level
- 0/1/5/10 (Z490)
- Multi-GPU
- NVIDIA 2-Way-SLI (x8/x8), AMD 3-Way-CrossFireX (x8/x8, x8/x8/x4)
- Stromanschlüsse
- 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
- VRM
- 16 virtuelle Phasen (14+2), 8 reale Phasen (7+1), PWM-Controller: ASP1900B (NCP81610, max. 8 Phasen)
- MOSFETs CPU
- 14x 50A SiC639
- MOSFETs SoC
- 2x 50A SiC639
- Beleuchtung
- RGB, 2 Zonen (Chipsatz-Kühler, I/O-Abdeckung)
- BIOS
- 1x 24MB (192Mb)
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (Segmentanzeige), Diagnostic LED (LED-Indikatoren), I/O-Blende integriert, 2x M.2-Passivkühler, Onboard TPM 2.0 Unterstützung (Intel PTT, zusätzlicher Herstellerlink beachten)
- Herstellergarantie
- drei Jahre (Abwicklung über Händler)
- USB-Schreibweise
- Link
- Letztes Preisupdate
- Gelistet seit
- 06.05.2020, 14:09
2 Dokumente
-
Stand: 25.05.2020 .pdf [4.87 MB]
-
Stand: 25.05.2020 .pdf [5.31 MB]
4 Weiterführende Links
7 Testberichte
-
-
guru3d.com: ASUS ROG Strix Z490-E Gaming review (translate)
I've been writing a lot about the price level of Z490 boards, 299 USD is still a lot of money for a motherboard I think it's safe to say that for the Z490 STRIX this is a reasonable sum of money at best. You get that nice power delivery, awesome looks, and 90% of the features that a premium board offers. Platform wise you'll get added features like AX Wifi and an Ethernet configuration on the form of 2.5, but not 10 Gbit ethernet jacks. Connectivity-wise in terms of your PCIe slots for your graphics subsystem you are looking at a full x16 Gen 3 lanes for one graphics card. While the platform is PCIe Gen 4.0 ready the reality remains that Z490 will only survive two generation s of processors, so Rocket Lake-S is the next series that will finally bring PCIe Gen 4.0. Going from Z390 to Z490 is not going to bring you massive differences platform wise other than a new series processor. We really do doubt that the upgrade from Coffee lake to Comet lake is worth this kind of money really, coming from older generations that might be different. But platform wise you'll get some added features like AX Wifi and a more luxurious Ethernet configuration on the form of that 2.5 ethernet jack. The ROG STRIX Z490-E Gaming offering 90% of the features of what the premium 400~500 USD boards offer. You get one 2.5 Gbps Ethernet jack but do still get AX WIFI6. Recommended? Sure, if you find it worth the pricetag of course.
-
-
-
-
techpowerup.com: ASUS ROG STRIX Z490-E Gaming Review (translate)
The ASUS ROG STRIX Z490-E Gaming is a great all-around board. It provides a rich feature set that includes WiFi 6, 2.5 Gb/s LAN, and an integrated I/O shield, as well as SLI support. When it comes to looks, the ASUS ROG STRIX Z490-E Gaming is quintessentially ASUS by featuring an excellent RGB implementation as well as a design that is neutral enough to make for easy parts matching—all while looking interesting enough to still catch the eye.
