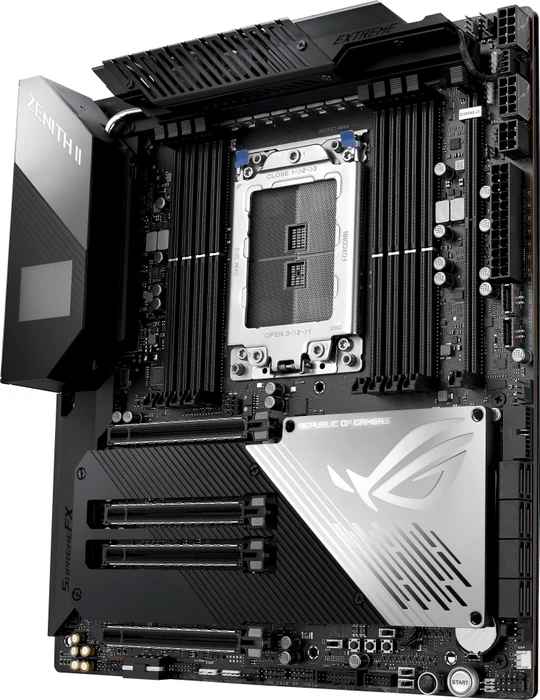

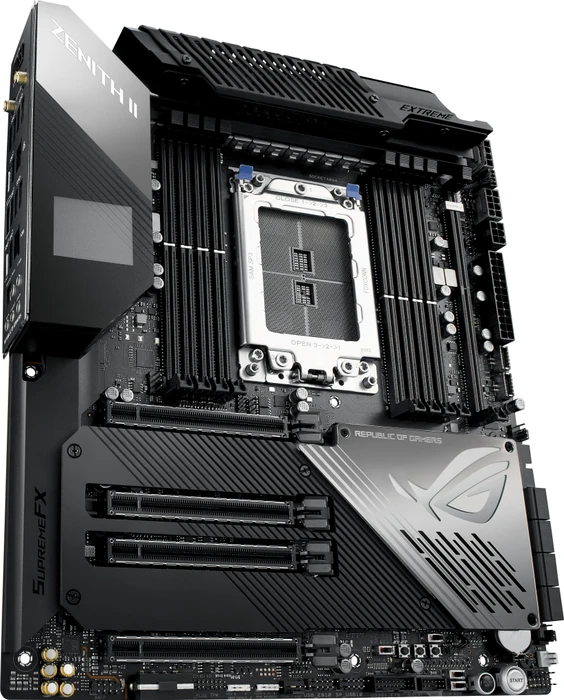

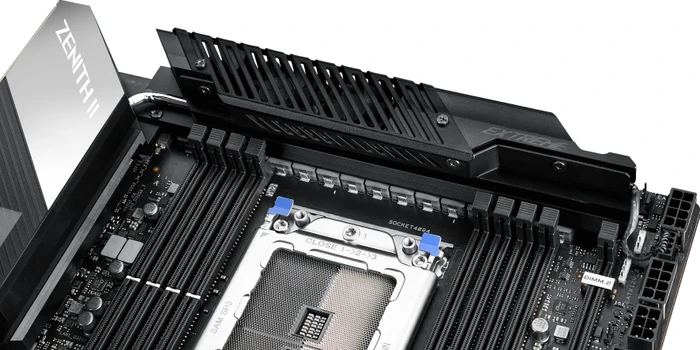

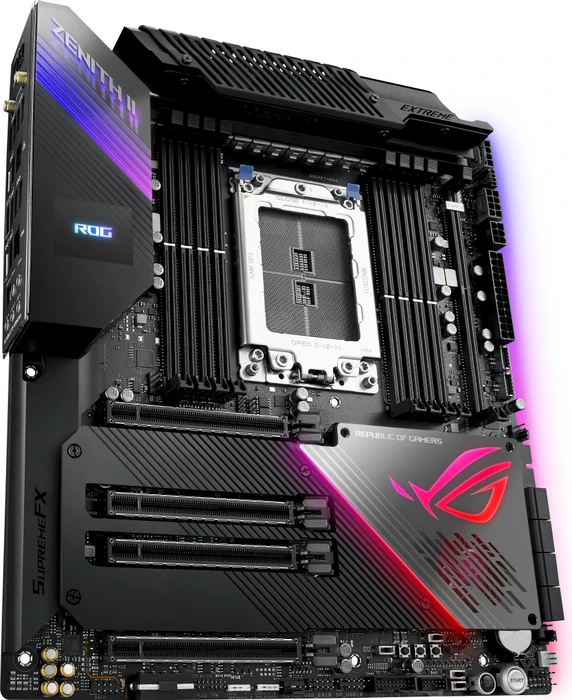

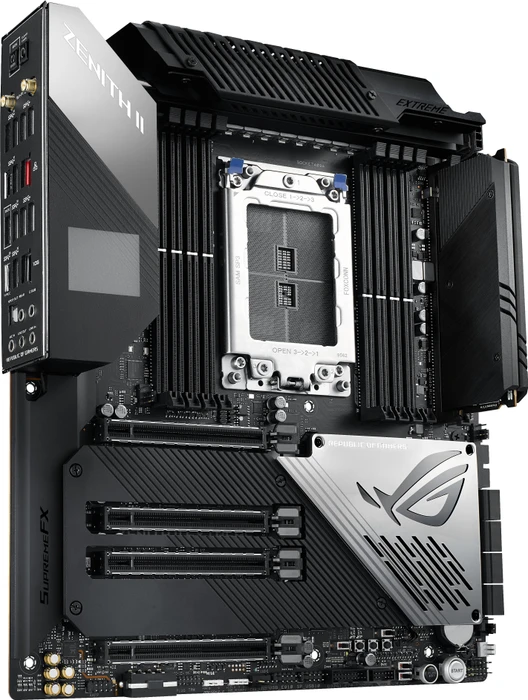

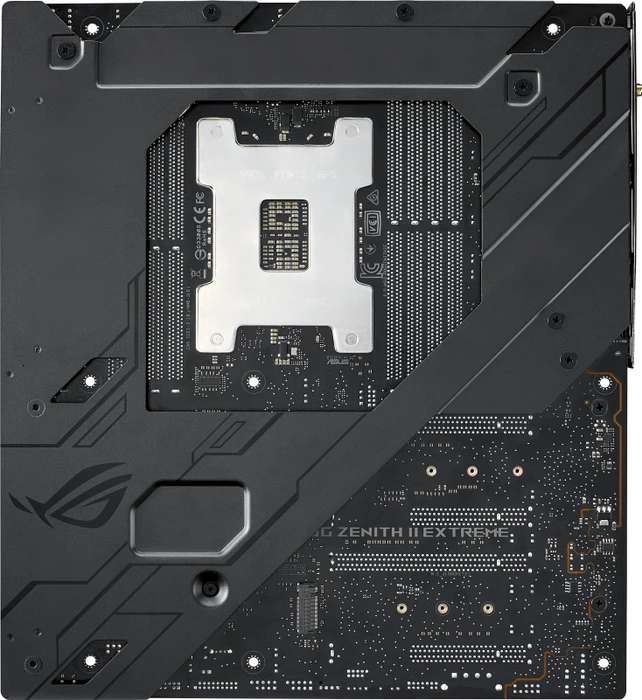

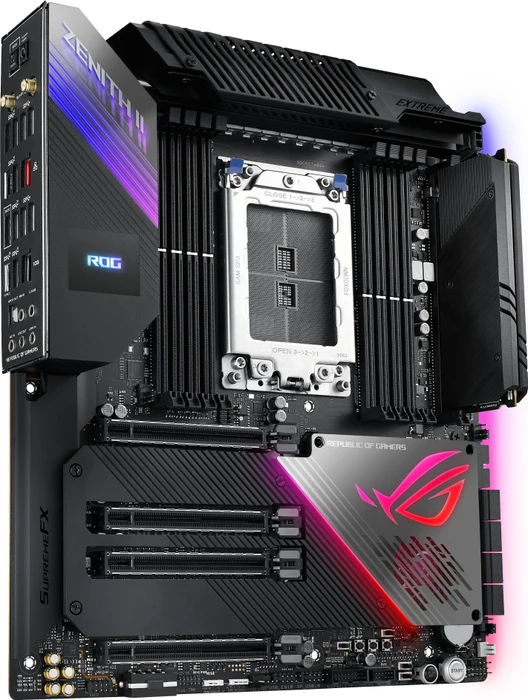

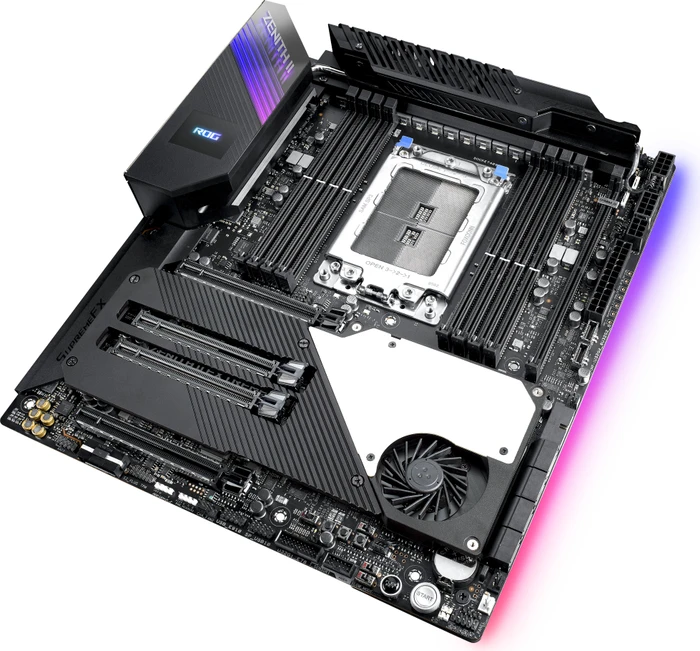

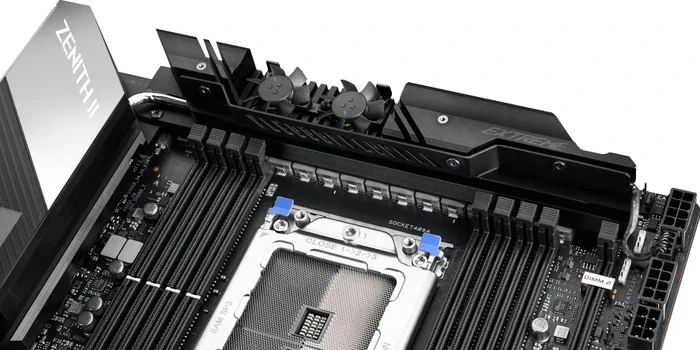

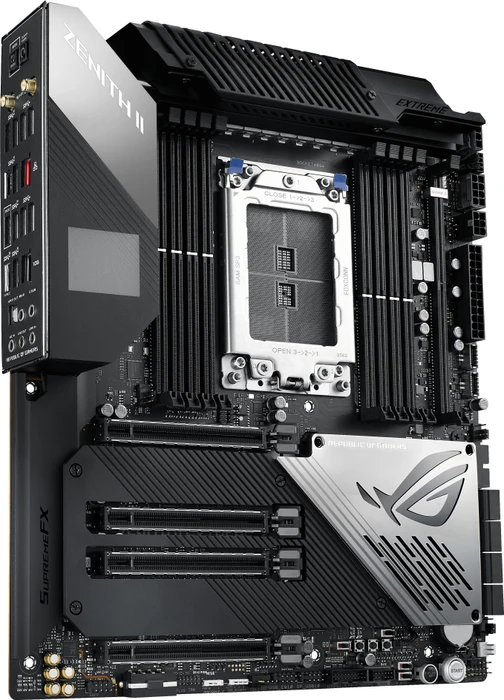

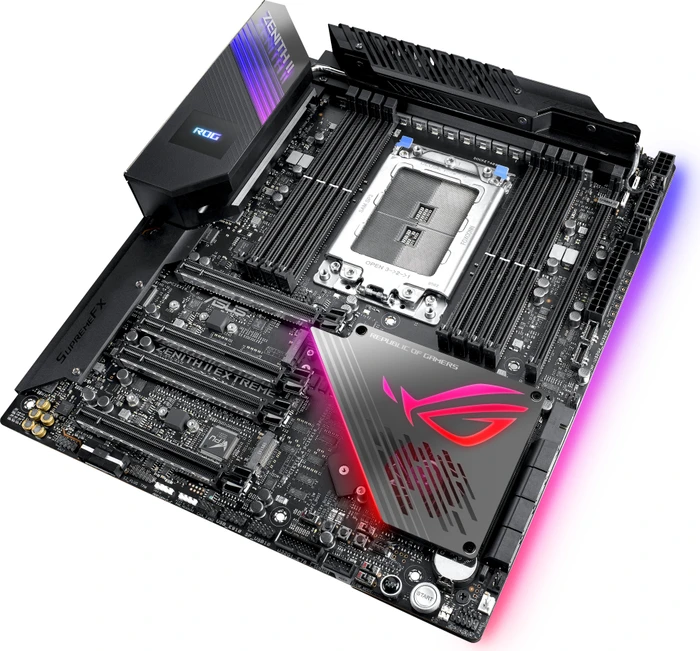

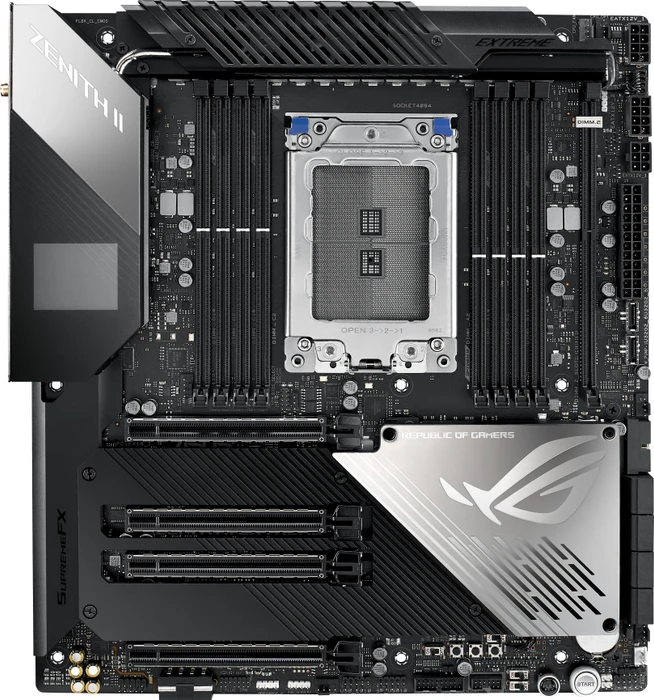

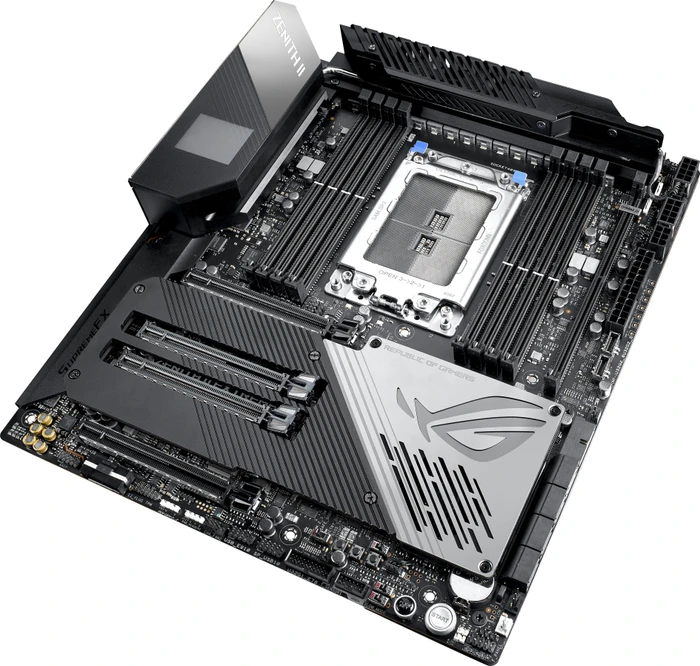

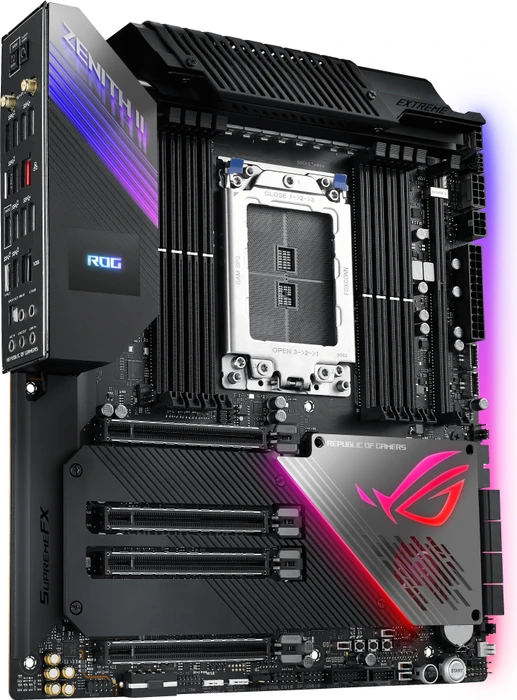

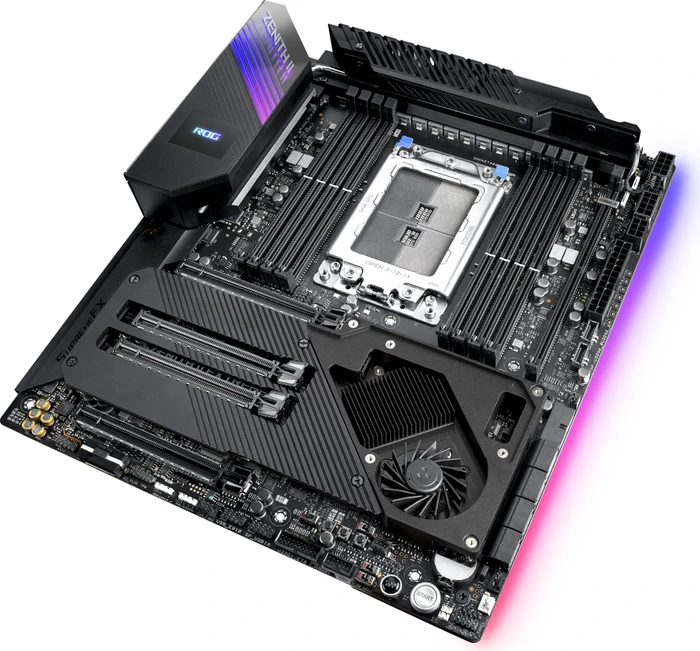

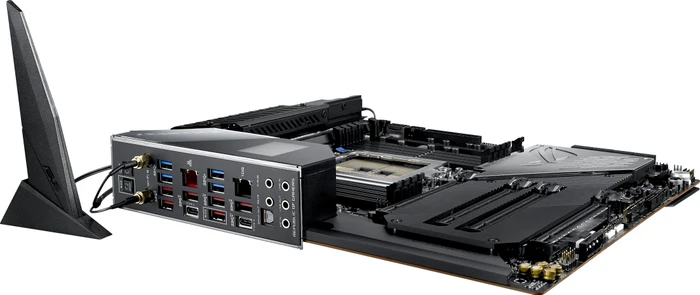

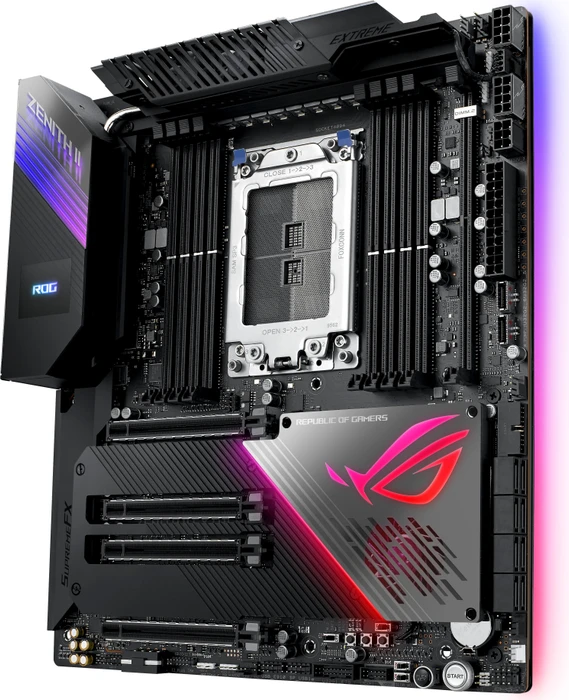

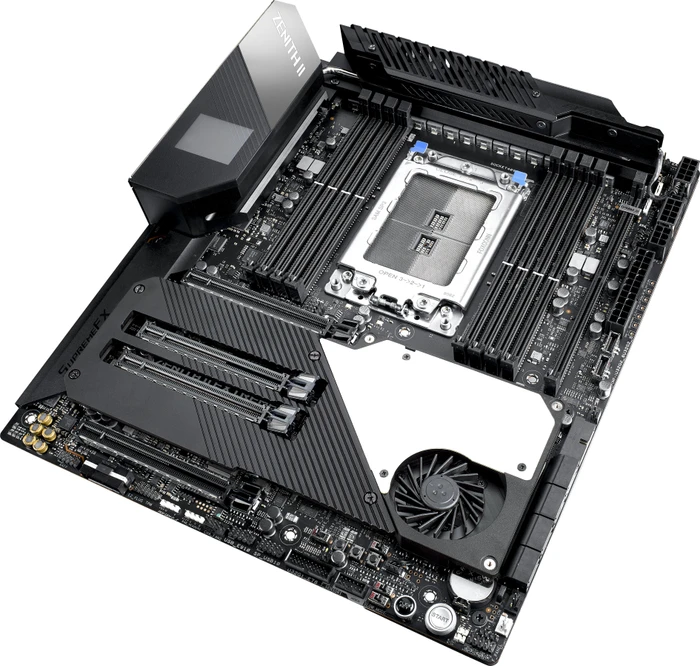

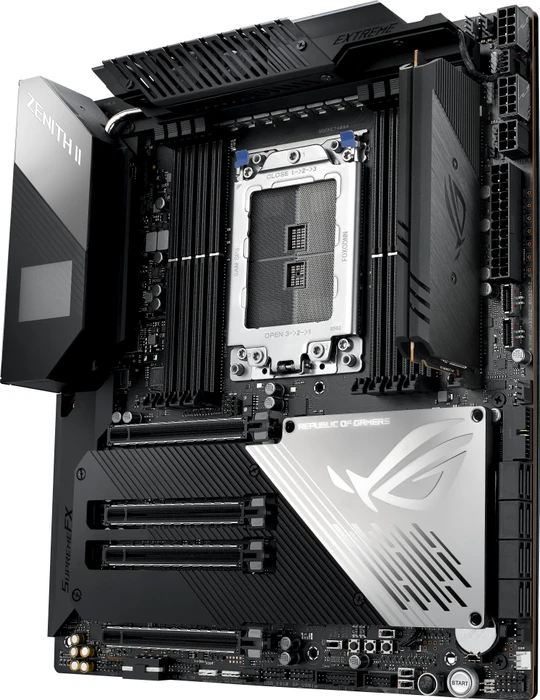

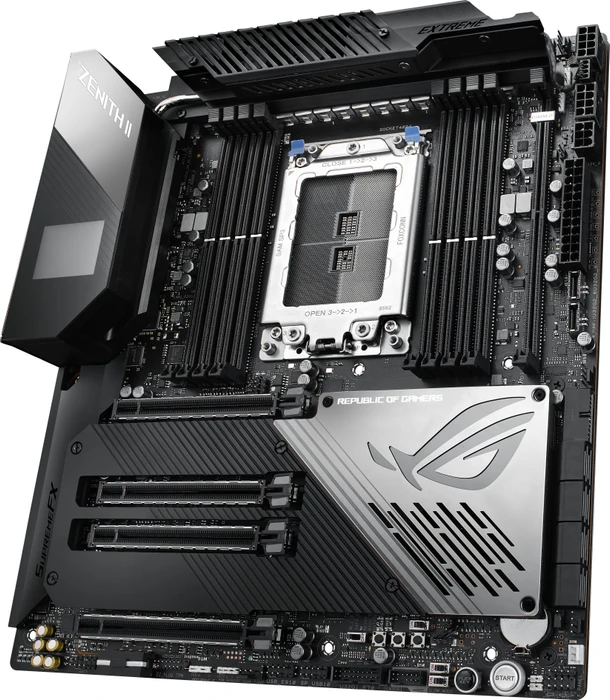

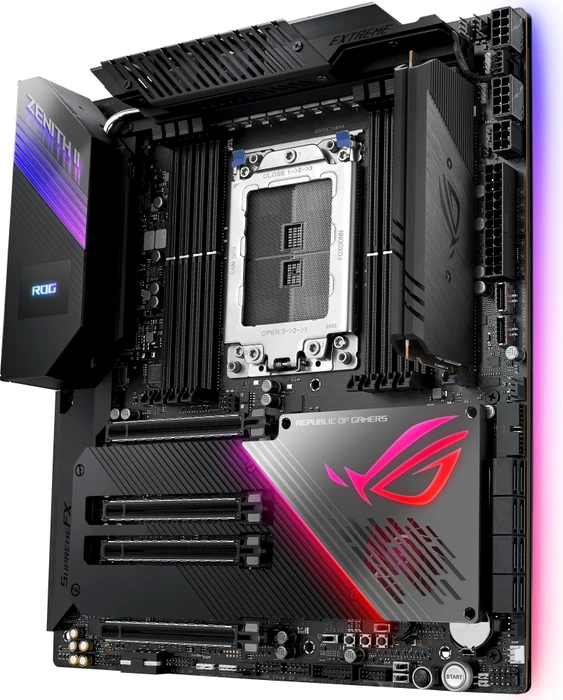

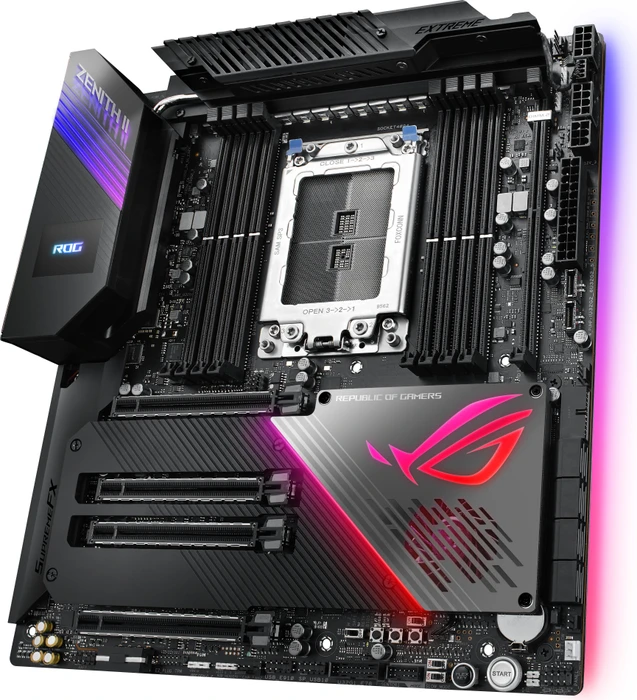

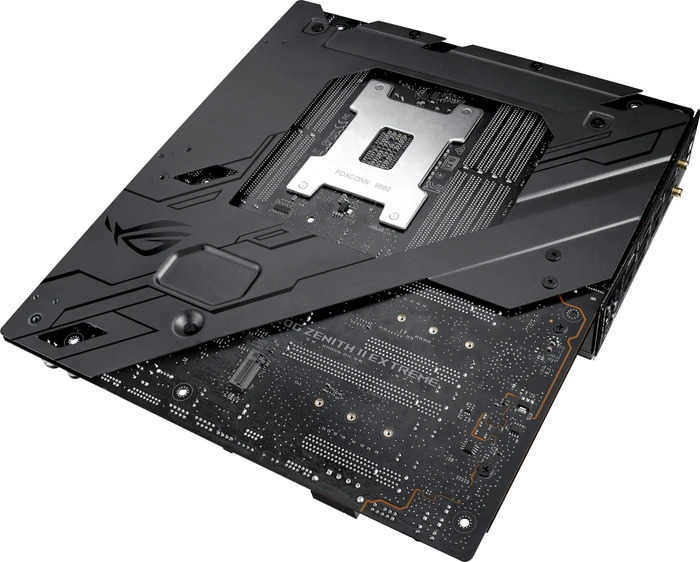

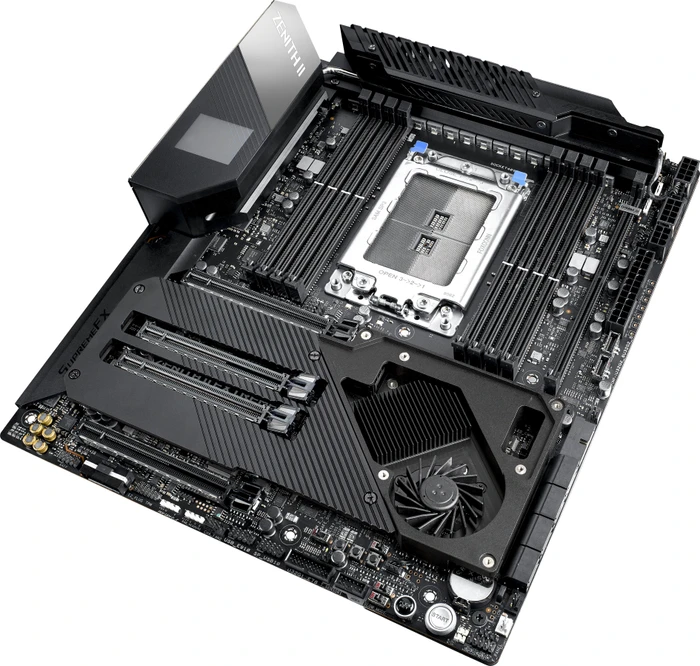

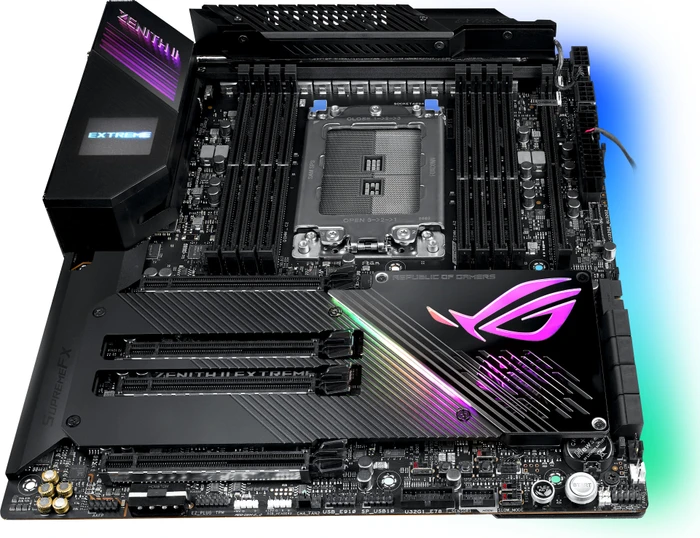

ASUS ROG Zenith II Extreme (AMD sTRX4)
- Formfaktor
- E-ATX
- Sockel
- AMD sTRX4
- Chipsatz
- AMD TRX40
- CPU-Kompatibilität
- Ryzen Threadripper 3000, CPU-Kompatibilitätsliste
- RAM
- 8x DDR4 DIMM-Slots, Quad Channel, max. 256GB UDIMM Non-ECC+ECC
- RAM-Datenrate
- DDR4-3200 (Ryzen Threadripper 3000), max. DDR4-4733 OC
- ECC-Unterstützung
- ja, Chipsatz mit ECC-Validierung

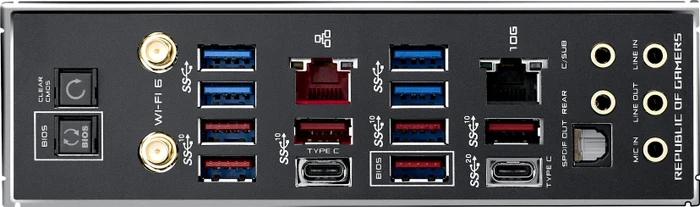

- Anschlüsse extern
- 1x USB-C 3.2 (20Gb/s, ASMedia ASM3242), 1x USB-C 3.1 (10Gb/s, PCH), 6x USB-A 3.1 (10Gb/s, PCH), 4x USB-A 3.0 (5Gb/s, ASMedia), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (10GBase-T, Marvell AQtion AQC107), 1x RJ-45 (1000Base-T, Intel I211-AT), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 4x PCIe 4.0 x16 (2x x16, 2x x8)
- M.2-Slots
- 2x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242, DIMM.2), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (TRX40), 4x SATA 6Gb/s (ASMedia)
- Anschlüsse intern - USB
- 2x USB 3.1 Header Key-A (10Gb/s, ASMedia, 2x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, ASMedia, 4x USB-A), 1x USB 2.0 Header 9-Pin (480Mb/s, 2x USB-A, TRX40), 1x USB 2.0 Header 4-Pin (480Mb/s, 1x USB-A, TRX40)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in Mainboards)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B550M Gaming X WIFI6 (AMD AM4)
GIGABYTE B650 Eagle AX (AMD AM5)
GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
GIGABYTE B850 Gaming WIFI6 (AMD AM5)
ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0ASUS ProArt X870E-Creator WiFi (AMD AM5)
90MB1IG0-M0EAY0ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZ- Formfaktor
- E-ATX
- Sockel
- AMD sTRX4
- Chipsatz
- AMD TRX40
- CPU-Kompatibilität
- Ryzen Threadripper 3000, CPU-Kompatibilitätsliste
- RAM
- 8x DDR4 DIMM-Slots, Quad Channel, max. 256GB UDIMM Non-ECC+ECC
- RAM-Datenrate
- DDR4-3200 (Ryzen Threadripper 3000), max. DDR4-4733 OC
- ECC-Unterstützung
- ja, Chipsatz mit ECC-Validierung
- Anschlüsse extern
- 1x USB-C 3.2 (20Gb/s, ASMedia ASM3242), 1x USB-C 3.1 (10Gb/s, PCH), 6x USB-A 3.1 (10Gb/s, PCH), 4x USB-A 3.0 (5Gb/s, ASMedia), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (10GBase-T, Marvell AQtion AQC107), 1x RJ-45 (1000Base-T, Intel I211-AT), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 4x PCIe 4.0 x16 (2x x16, 2x x8)
- M.2-Slots
- 2x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242, DIMM.2), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (TRX40), 4x SATA 6Gb/s (ASMedia)
- Anschlüsse intern - USB
- 2x USB 3.1 Header Key-A (10Gb/s, ASMedia, 2x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, ASMedia, 4x USB-A), 1x USB 2.0 Header 9-Pin (480Mb/s, 2x USB-A, TRX40), 1x USB 2.0 Header 4-Pin (480Mb/s, 1x USB-A, TRX40)
- Anschlüsse intern - sonstige
- 1x TPM Header, 1x ASUS Node Header
- Anschlüsse intern - Kühlung
- 2x CPU-Lüfter 4-Pin PWM, 3x Lüfter 4-Pin PWM, 2x Pumpe 4-Pin PWM, 1x Durchfluss-Sensor Header, 1x Waterblock-Sensor Header
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe, 1x 4-Pin Molex
- Anschlüsse intern - Beleuchtung
- 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches
- Clear-CMOS-Button (extern), USB BIOS Flashback (extern), BIOS-Switch (intern), FlexKey-Button (intern), MemOK-Switch (intern), Pause-Switch (intern), Power-Button (intern), Retry-Button (intern), SafeBoot-Button (intern), SlowMode-Switch (intern)
- Audio
- Realtek ALC1220, DAC (ESS ES9018Q2C), DTS Sound Unbound, ASUS SupremeFX
- Netzwerk
- Marvell AQtion AQC107 (10Gb/s), Intel I211-AT (1Gb/s)
- Grafik
- N/A
- RAID-Level
- 0/1/10 (TRX40)
- Wireless
- Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX200), Bluetooth 5.2
- VRM-Design
- 16+0, 16 virtuelle CPU-Phasen (2x8+0), 8 reale CPU-Phasen (8+0)
- MOSFETs VCORE
- 16x 70A TDA21472 (SPS)
- MOSFETs SOC/VCCGT
- 0x
- PWM-Controller
- ASP1405I (IR35201, max. 8 Phasen)
- Beleuchtung
- RGB, 3 Zonen (Chipsatz-Kühler, I/O-Abdeckung, Seite rechts)
- BIOS
- Dual-BIOS
- Segment
- HEDT
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), Diagnostic LED (Segmentanzeige), I/O-Blende integriert, Backplate, Spannungsmesspunkte, Display, 4x M.2-Passivkühler, unterstützt NVIDIA 3-Way-SLI (x16/x16, x16/x16/x8)/AMD 3-Way-CrossFireX (x16/x16, x16/x16/x8)
- Garantie
- 3 Jahre
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 12.11.2019, 14:51
-
igorslab.de: Wer es gern bunt treibt: der ultimative RGB-Guide für alle, die nach einer Erleuchtung suchen
-
pcgameshardware.de: AMD Ryzen Threadripper 3000: Der neue Sockel TRX4 im Detail
-
computerbase.de: RGB-LED-Plattformen im Test: Aura, RGB Fusion, Mystic Light und iCUE im Vergleich
-
asus.com: ASUS Motherboards Ready for Windows 11
-
asmedia.com.tw: ASM3242
-
wi-fi.org: Wi-Fi Alliance - Wi-Fi (MAC/PHY) technologies
1 Bewertung für ASUS ROG Zenith II Extreme (AMD sTRX4)
Teilen Sie uns Ihre Meinung zu ASUS ROG Zenith II Extreme (AMD sTRX4) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
-
techpowerup.com: AMD Ryzen Threadripper 3rd Gen Overclocking Deep Dive, feat. ASUS ROG Zenith II Extreme (translate)
That AMD's new Ryzen Threadripper 3000 is "hard to overclock" is a myth purported by people who don't understand overclocking beyond multipliers, voltages, and basic memory timings. Even without any overclocking, the third-generation Ryzen Threadripper line represents the very best in client-segment computing power. At $1,400, the Ryzen Threadripper 3960X is the fastest piece of silicon I've ever used; it never runs out of steam no matter what I throw at it, and I'm sure it will be a potent tool in the hands of creators for whom time is money.
-
techpowerup.com: ASUS ROG Zenith II Extreme Review (translate)
The ASUS ROG Zenith II Extreme is a true sight to behold, with a sophisticated black and chrome finish. The RGB LEDs are the best I have seen on any board, and that is before accounting for the OLED display, which is both pretty and practical. While boards of this caliber garner certain expectations of quality and attention to detail, the ASUS ROG Zenith II Extreme goes above and beyond. ASUS pulled out all the stops when designing this new HEDT flagship, and it shows no matter where you look. Of course, its looks are not what make the ASUS ROG Zenith II "Extreme."
-
anandtech.com: Home> Motherboards The ASUS ROG Zenith II Extreme TRX40 Motherboard Review: The Second Coming (translate)
The ASUS ROG Zenith II Extreme has an MSRP of $850 and is one of two models at the price point. The ASUS model focuses on refining the previous Zenith model for the PCIe 4.0 TRX40 chipset and does so very well. Allowing users to use up to five PCIe 4.0 x4 M.2 drives simultaneously while supporting up to 256 GB of DDR4-4733 memory across its eight slots gives users a solid foundation to build a ridiculously powerful desktop system. AMD has re-invigorated the HEDT market with its Threadripper 3000 processors, with the madness set to continue next year when the Threadripper 3990X with 64-cores is unleashed; the ASUS ROG Zenith II Extreme is one such board that enthusiasts will be chomping at the bit to put Threadripper 3000 to full use.
-
-
-
