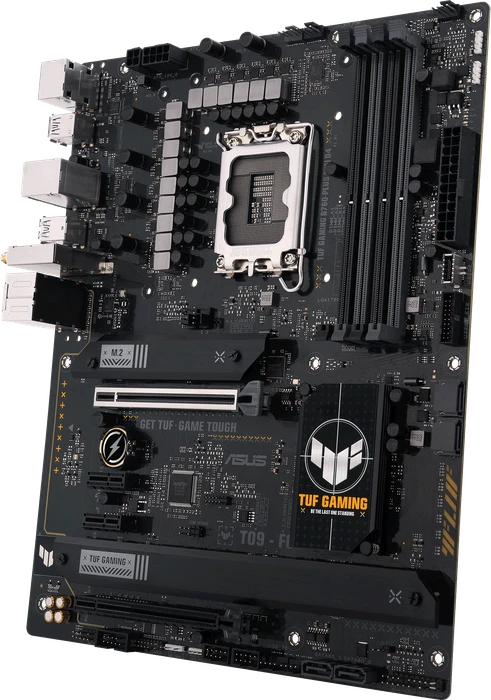

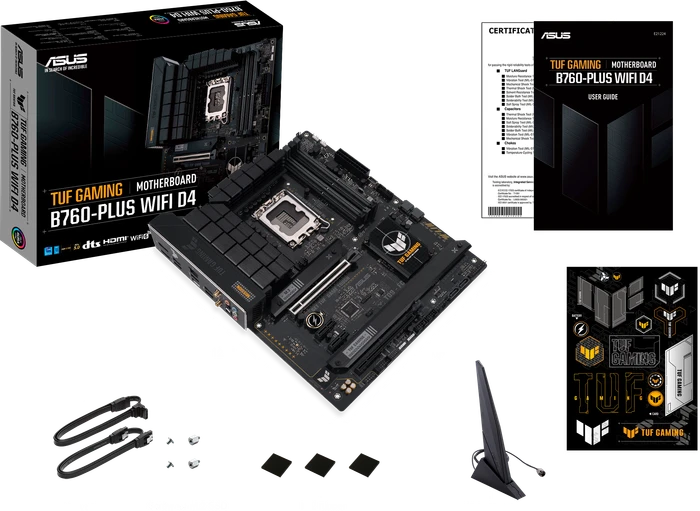

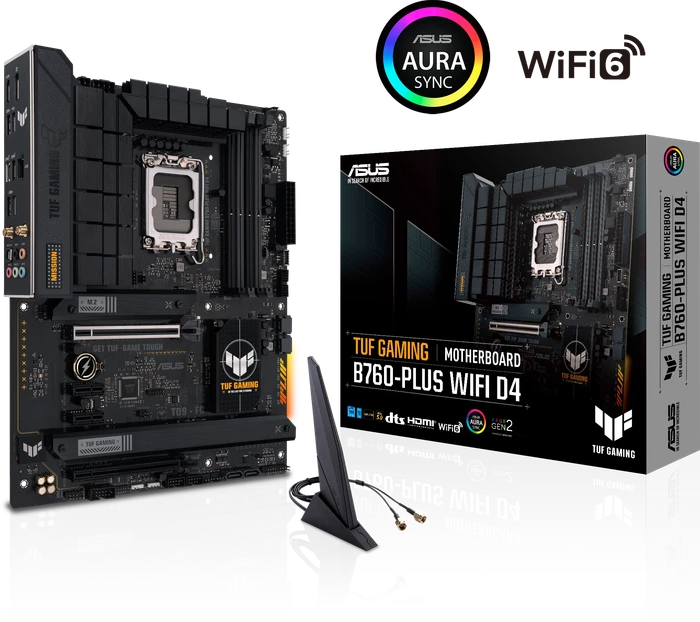

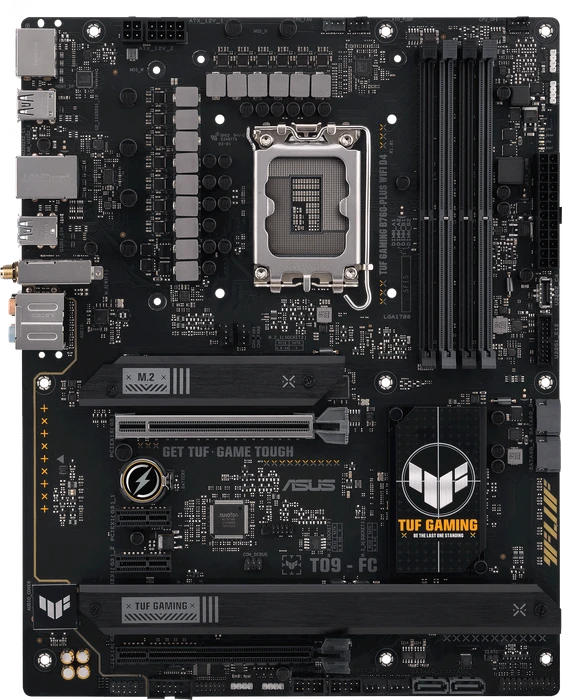

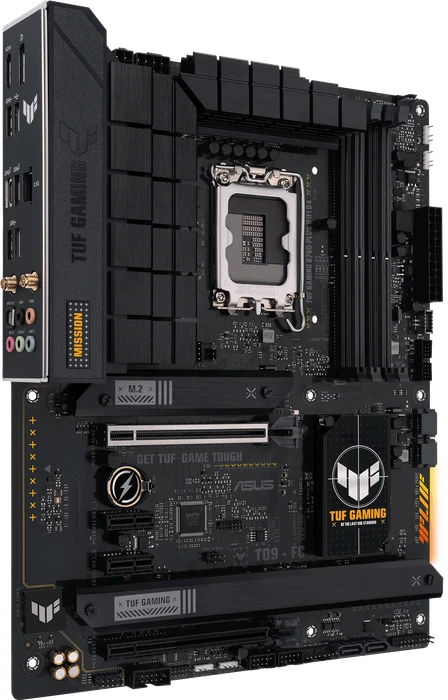

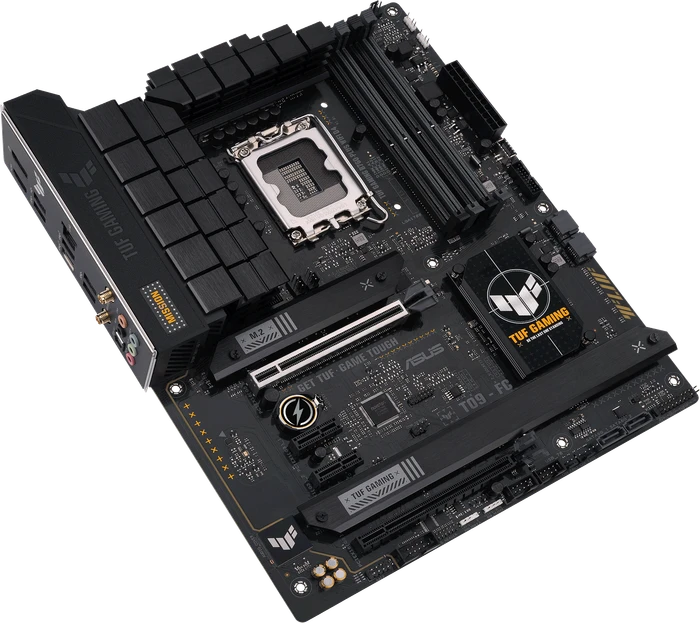

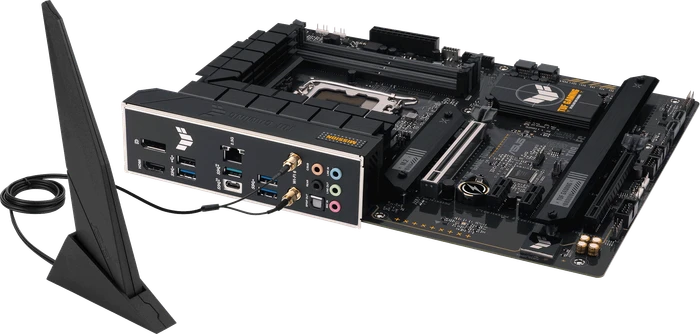

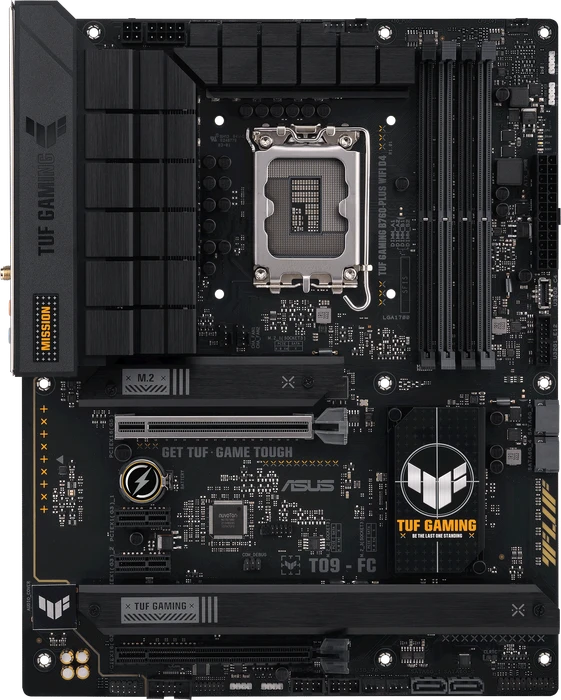

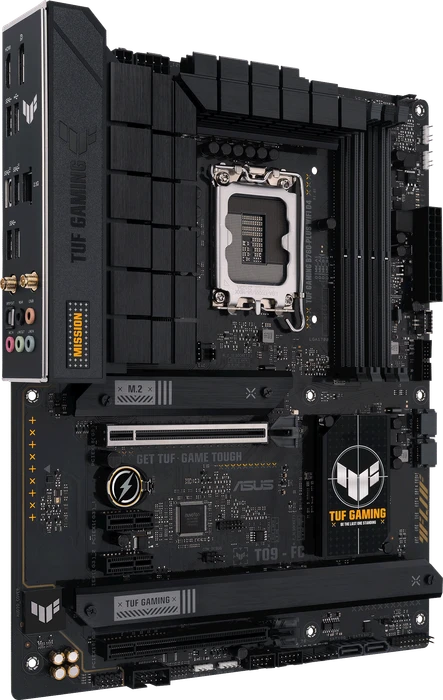

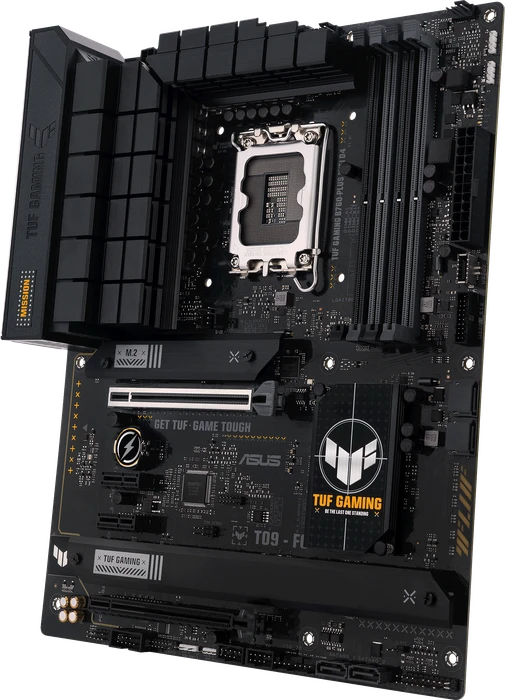

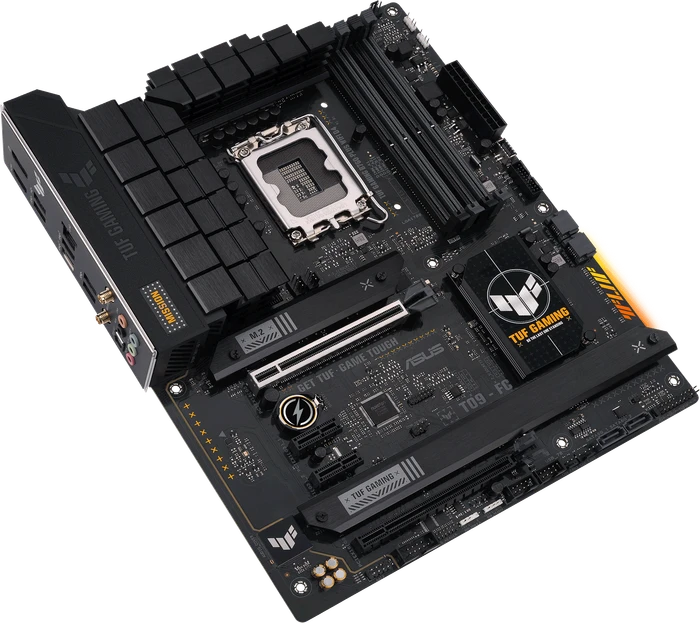

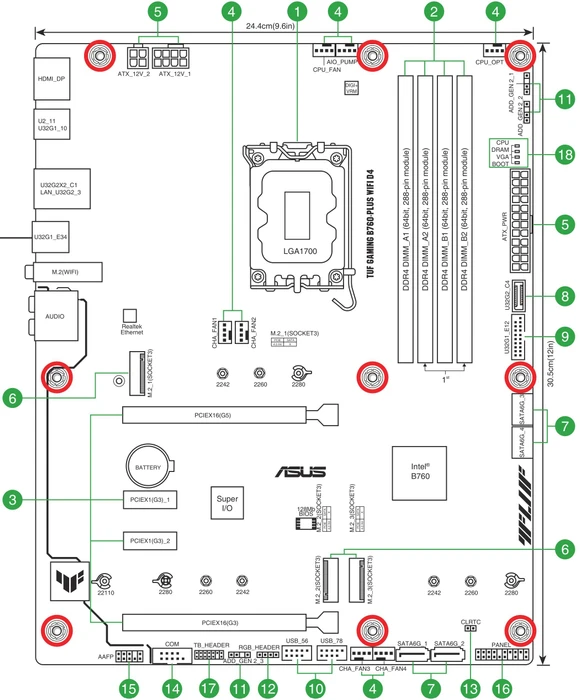

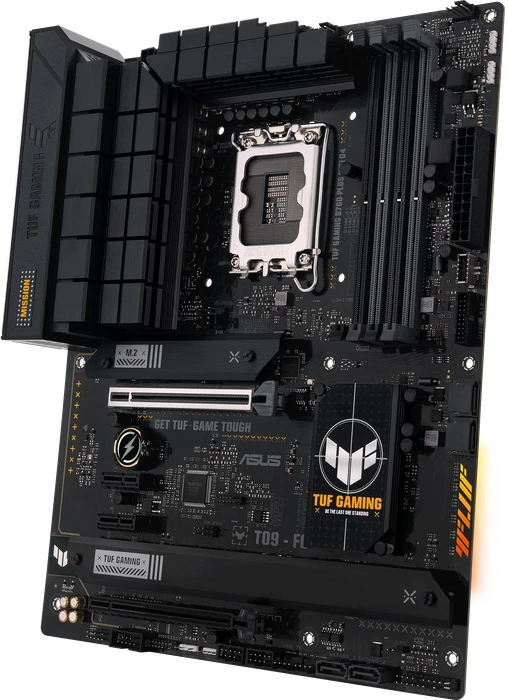

ASUS TUF Gaming B760-Plus WIFI D4 (Intel 1700)

90MB1DF0-M0EAY0 / 90MB1DF0-M1EAY0 | Besuche den ASUS Showroom
Info beim Hersteller
Alle 44 Varianten anzeigen
Formfaktor
ATX
Sockel
Intel 1700 (LGA1700)
Chipsatz
Intel B760
RAM
4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
RAM-Datenrate
DDR4-3200 (Celeron G6000/​Pentium Gold G7000/​Core i-12000/​Core i-13000/​Core i-14000), max. DDR4-5333 OC
RAM-Profile
Intel XMP 2.0
ECC-Unterstützung
nein
Anschlüsse extern

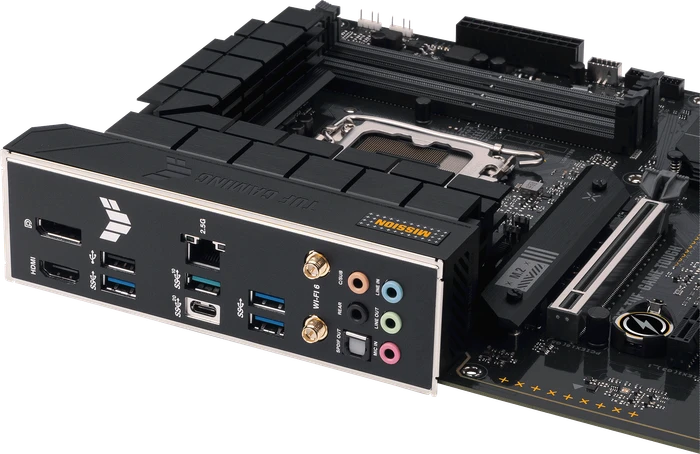

1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/​s), 1x USB-A 3.1 (10Gb/​s), 3x USB-A 3.0 (5Gb/​s), 1x USB-A 2.0 (480Mb/​s), 1x Toslink S/​PDIF Out, 5x 3.5mm Klinke (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
M.2-Slots
2x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
4x SATA 6Gb/s (B760)
Anbieter aus:
Anbieter
Händlerbewertung
Verfügbarkeit / Versandkosten*
Produktbezeichnung des Händlers
Es gibt derzeit keine Anbieter für dieses Produkt (mit diesen Filterkriterien) in der gewählten Region.
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.

Weitere Varianten (Top-10)

Ähnliche Produkte (Top-10 in Mainboards)

Formfaktor
ATX
Sockel
Intel 1700 (LGA1700)
Chipsatz
Intel B760
RAM
4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
RAM-Datenrate
DDR4-3200 (Celeron G6000/​Pentium Gold G7000/​Core i-12000/​Core i-13000/​Core i-14000), max. DDR4-5333 OC
RAM-Profile
Intel XMP 2.0
ECC-Unterstützung
nein

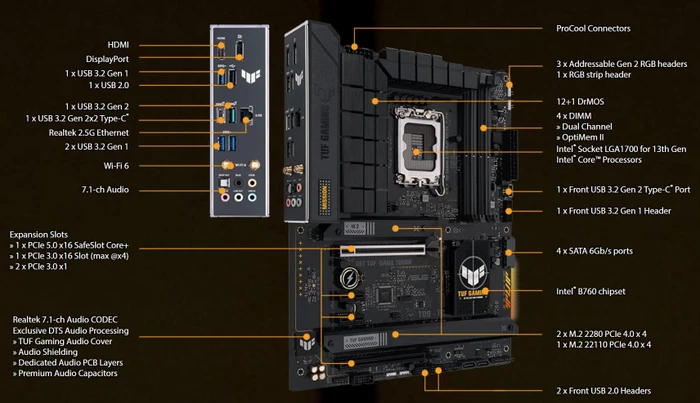

Anschlüsse extern
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/​s), 1x USB-A 3.1 (10Gb/​s), 3x USB-A 3.0 (5Gb/​s), 1x USB-A 2.0 (480Mb/​s), 1x Toslink S/​PDIF Out, 5x 3.5mm Klinke (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
M.2-Slots
2x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
4x SATA 6Gb/s (B760)
Anschlüsse intern - USB
1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)
Anschlüsse intern - sonstige
1x seriell Header, 1x Thunderbolt Header 13-Pin, 1x Chassis Intrusion Header, 1x COM Debug Header
Anschlüsse intern - Kühlung
2x CPU-Lüfter 4-Pin PWM, 4x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM
Anschlüsse intern - Stromversorgung
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Anschlüsse intern - Beleuchtung
1x 4-Pin RGB (+12V/​G/​R/​B, max. 3A), 3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)
Audio
Realtek ALC897, DTS Audio Processing
Netzwerk
Realtek (2.5Gb/​s)
Grafik
iGPU
RAID-Level
0/​1/​5/​10 (B760)
Wireless
Wi-Fi 6 (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Intel AX201), Bluetooth 5.2
VRM-Design
12+1, 13 virtuelle CPU-Phasen (2x6+1), 7 reale CPU-Phasen (6+1)
MOSFETs VCORE
12x 55A AOZ5316NQI (DrMOS)
MOSFETs SOC/VCCGT
1x 55A AOZ5316NQI (DrMOS)
PWM-Controller
ASP2100 (RT3628AE, max. 9 Phasen)
Beleuchtung
RGB, 1 Zone (Seite rechts)
BIOS
1x 16MB (128Mb)
Segment
Mainstream
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/​O-Blende integriert, 3x M.2-Passivkühler
Garantie
3 Jahre
USB-Schreibweise
Link
Letztes Preisupdate
-
Gelistet seit
08.01.2023, 14:48
Laden ...

Bewertung für ASUS TUF Gaming B760-Plus WIFI D4 (Intel 1700)

Teilen Sie uns Ihre Meinung zu ASUS TUF Gaming B760-Plus WIFI D4 (Intel 1700) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.
Laden ...
  • englisch
    eteknix.com: ASUS TUF Gaming B760-Plus WiFi D4 Motherboard Review (translate)

    ASUS has a lot of great motherboards under their name, but while their STRIX and Maximus series may appeal to enthusiasts with thick wallets, I’ve long been a fan of the often more affordable, but still feature-packed TUF Gaming series. With their robust build quality that really puts the “tough” in TUF, consistent dark black and yellow highlights aesthetics, and catering to the features your typical PC user and gamers need without going too crazy, it’s easy to see why.

  • englisch
    guru3d.com: ASUS TUF Gaming B760-PLUS WIFI D4 review (translate)

    Although the ASUS TUF Gaming B760 motherboard boasts impressive features, there are some drawbacks to consider. For example, the PCIe configuration, which is intriguing with its PCIe 5.0 signals for the GPU, unfortunately leaves other slots operating at a limited PCIe 3.0 x4 speed. This may not be ideal for high-bandwidth expansion cards, although it's worth questioning if they're really necessary. Additionally, the motherboard's temperature should be kept in mind, particularly if unlocked CPUs are being used, as proper cooling is essential. On a more positive note, the motherboard does support DDR4 memory, which can save users money if they already have DDR4 modules or can easily purchase them at a low cost. Furthermore, the ASUS TUF Gaming B760-Plus WiFi D4 offers multiple M.2 slots and USB ports for new components and peripherals, as well as a Gen5 x16 slot that allows for future graphics card upgrades. Its all-black design gives it a sleek and professional look that most consumers will appreciate. The ASUS TUF Gaming B760-Plus WiFi D4 is an affordable option for consumers to use Intel's powerful 13th-gen CPUs, with a lower price point than most of its competitors. While it may not have as many features as Z790 motherboards, it still offers a lot at a reasonable price, and the option to reuse DDR4 memory is a great bonus. Overall, this motherboard is an excellent choice for those looking for a high-quality motherboard at an affordable price.
