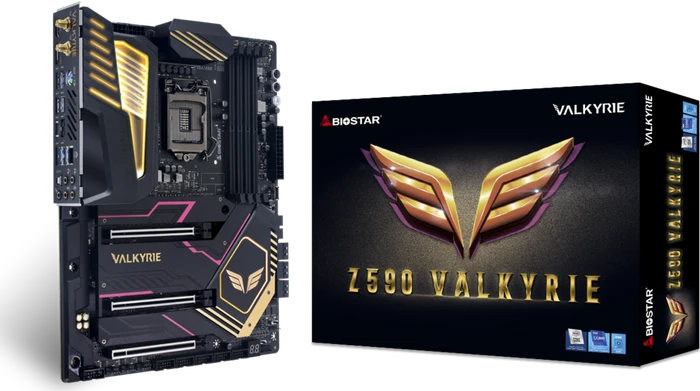

Biostar Z590 Valkyrie (Intel 1200)
- Formfaktor
- ATX
- Sockel
- Intel 1200 (LGA1200)
- Chipsatz
- Intel Z590
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-5000 OC
- RAM-Profile
- Intel XMP 2.0
- ECC-Unterstützung
- nein

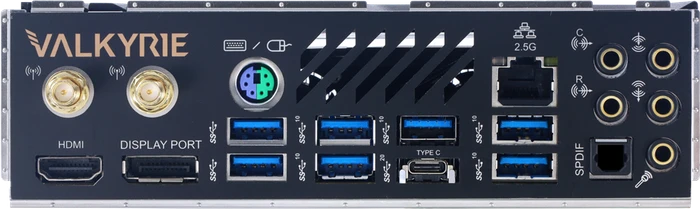

- Anschlüsse extern
- 1x DisplayPort 1.4a (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 5x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s, PCH), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek RTL8125B), 2x Antennenanschluss RP-SMA, 1x PS/2 Combo
- PCIe-Slots
- 2x PCIe 4.0 x16 (1x x16, 1x x8), 1x PCIe 3.0 x16 (x4)
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280, Rückseite), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (2230), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z590)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in Mainboards)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B550M Gaming X WIFI6 (AMD AM4)
GIGABYTE B650 Eagle AX (AMD AM5)
GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
GIGABYTE B850 Gaming WIFI6 (AMD AM5)
ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0ASUS ProArt X870E-Creator WiFi (AMD AM5)
90MB1IG0-M0EAY0ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZ- Formfaktor
- ATX
- Sockel
- Intel 1200 (LGA1200)
- Chipsatz
- Intel Z590
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-5000 OC
- RAM-Profile
- Intel XMP 2.0
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x DisplayPort 1.4a (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 5x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s, PCH), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek RTL8125B), 2x Antennenanschluss RP-SMA, 1x PS/2 Combo
- PCIe-Slots
- 2x PCIe 4.0 x16 (1x x16, 1x x8), 1x PCIe 3.0 x16 (x4)
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280, Rückseite), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (2230), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z590)
- Anschlüsse intern - USB
- 1x USB 3.2 Header Key-A (20Gb/s, 1x USB-C, Z590), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
- Anschlüsse intern - sonstige
- 1x seriell Header, 1x TPM Header, 1x Thunderbolt Header 10-Pin, 1x Speaker Header
- Anschlüsse intern - Kühlung
- 1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/Pumpe 4-Pin PWM, 5x Lüfter 4-Pin PWM
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung
- 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
- Buttons/Switches
- BIOS-Switch (intern), Clear-CMOS-Button (intern), LN2-Switch (intern), Power-Button (intern), Reset-Button (intern)
- Audio
- Realtek ALC1220
- Netzwerk
- Realtek RTL8125B (2.5Gb/s)
- Grafik
- iGPU
- RAID-Level
- 0/1/5/10 (Z590)
- Wireless
- nur Anschluss für WLAN-Antenne (ohne Modul)
- VRM-Design
- 20+1, 21 virtuelle CPU-Phasen (2x10+1), 11 reale CPU-Phasen (10+1)
- MOSFETs VCORE
- 20x 90A ISL99390 (SPS)
- MOSFETs SOC/VCCGT
- 1x 90A ISL99390 (SPS)
- PWM-Controller
- ISL69269 (max. 12 Phasen)
- Beleuchtung
- RGB, 2 Zonen (Chipsatz-Kühler, I/O-Abdeckung)
- BIOS
- Dual-BIOS
- Segment
- Mainstream
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (Segmentanzeige), I/O-Blende integriert, Backplate, 1x M.2-Passivkühler, unterstützt AMD 2-Way-CrossFireX (x8/x8)
- Garantie
- 3 Jahre
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 15.04.2021, 16:44
-
Stand: 15.04.2021 .pdf [3.29 MB]
-
Stand: 15.04.2021 .pdf [17.39 MB]
Bewertung für Biostar Z590 Valkyrie (Intel 1200)
Teilen Sie uns Ihre Meinung zu Biostar Z590 Valkyrie (Intel 1200) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
-
hardwareinside.de: BIOSTAR Z590 VALKYRIE im Test
Das BIOSTAR Z590 VALKYRIE ist aktuell zu einem Preis von ca. 320 € im Handel erhältlich. Bei einem solchen Preis sind die Erwartungen hoch und das Z590 VALKYRIE kann sie auch zu einem Großteil erfüllen. Vor allem das Design, die sehr gute Spannungsversorgung sowie vielen USB-Anschlüsse können überzeugen. Dennoch verdient sich das Z590 VALKYRIE eine Empfehlung von uns.
-
overclockers.com: BIOSTAR Z590 VALKYRIE Motherboard Review (translate)
The Biostar Z590 Valkyrie may be lacking in some ways, such as a single Realtek 2.5 Gbs LAN and the lack of wireless connectivity (but include the antenna??!). That said, it still has a lot to offer any user, starting with a solid 20+2-phase power section, 8-layer PCB, and actively cooled heatsinks. The Valkyrie can also run multi-card setups listing AMD CFX support. In total, there are three M.2 sockets and six SATA ports on the data storage front along with 17 possible USB connections and Thunderbolt 4 compatibility. RGB lighting is scattered across the motherboard with a large Valkyrie wing logo on the I/O cladding and enough RGB/ARGB headers for expansion to keep any RGB LED aficionado happy.
-
techpowerup.com: BIOSTAR Z590 Valkyrie Review (translate)
At first glance, the BIOSTAR Z590 Valkyrie slots into the mainstream category with three M.2 slots, 2.5 Gb/s LAN, and a healthy complement of storage options, though it is lacking WiFi out of the box. On the other hand, the Z590 Valkyrie features a top-tier 21-phase VRM with 90 A power stages and even dual BIOS. When it comes to looks, the BIOSTAR Z590 Valkyrie is quite striking with a black and gold theme that's been spiced up with neon pink accents. The end result is as divisive as it is striking.
