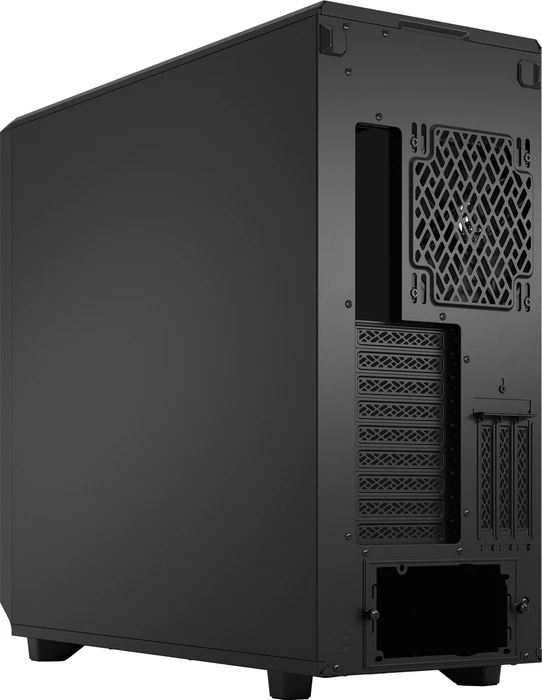

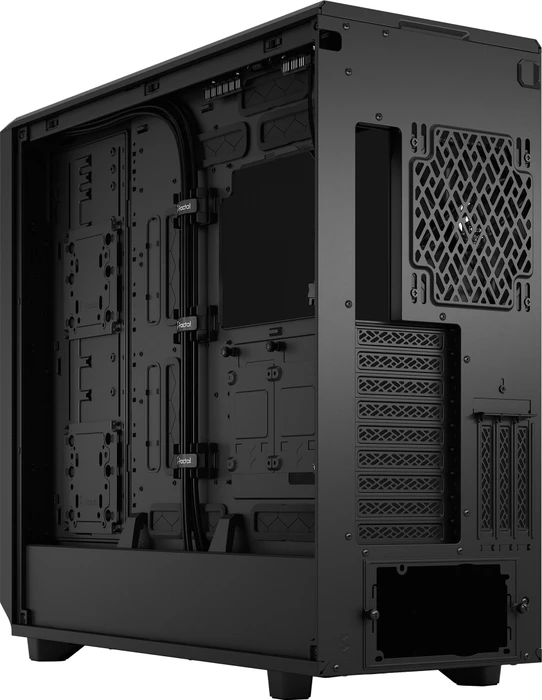

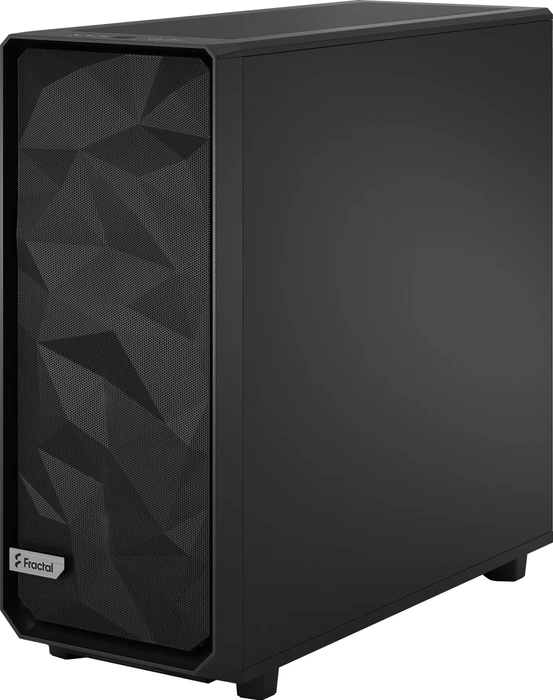

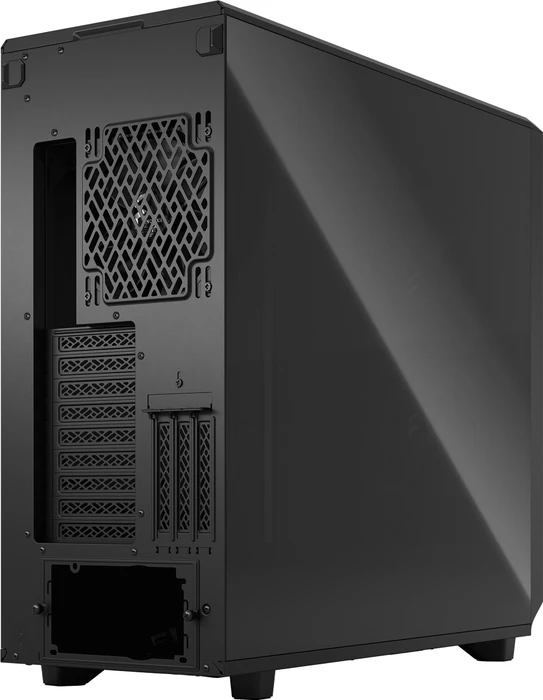

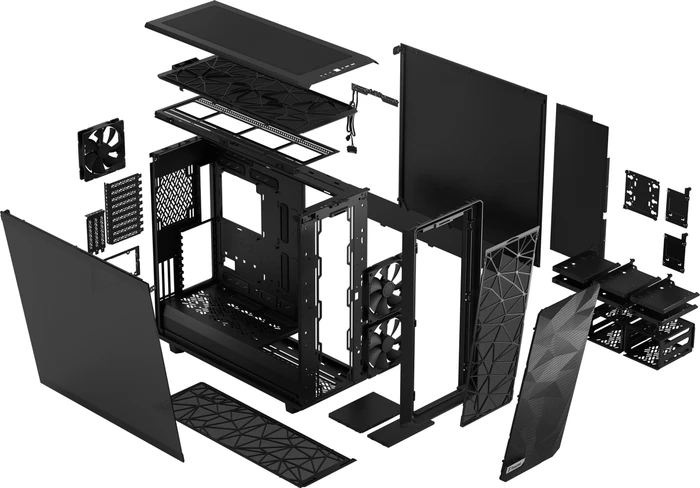

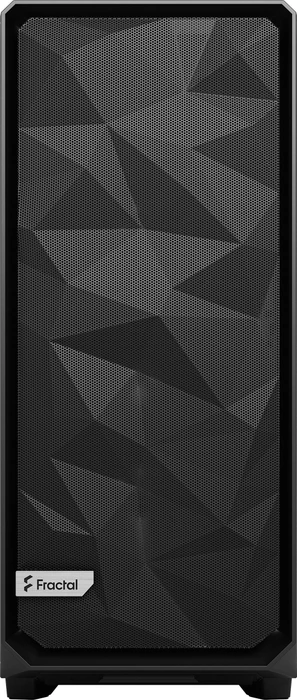

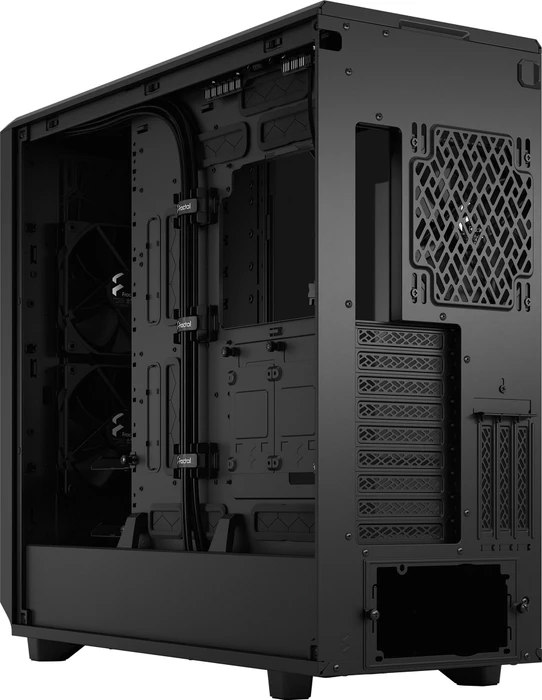

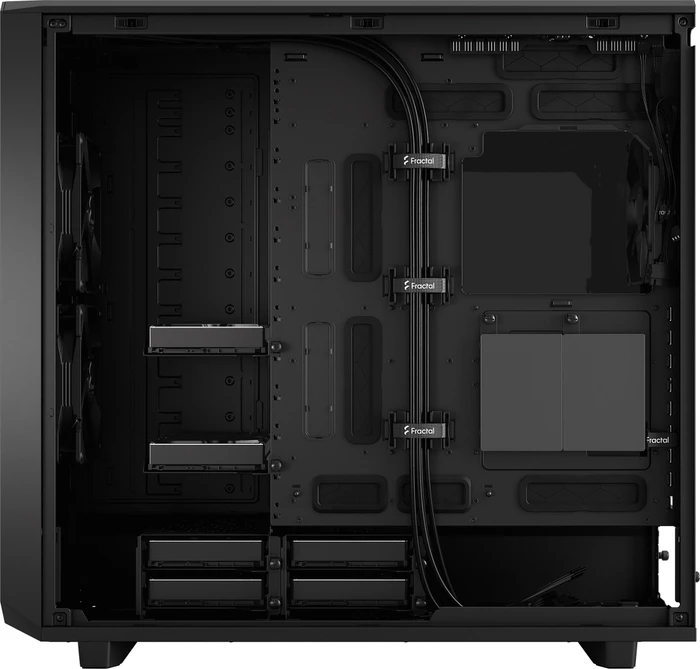

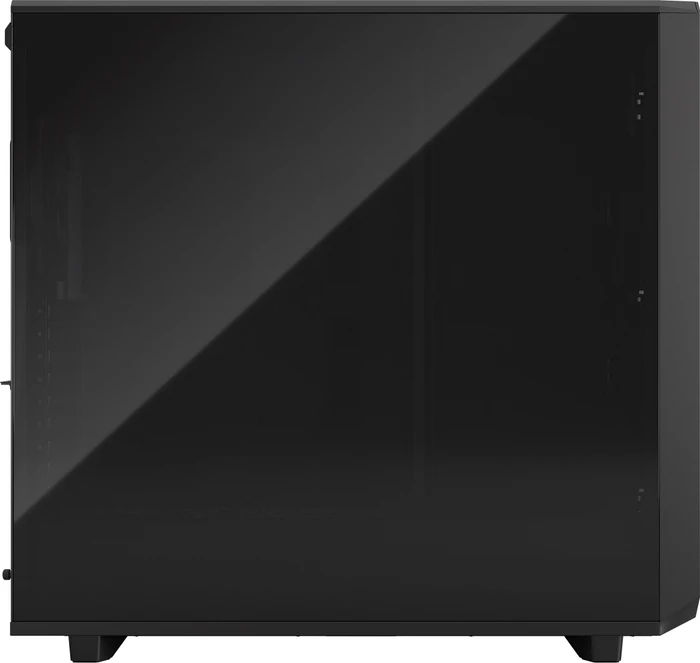

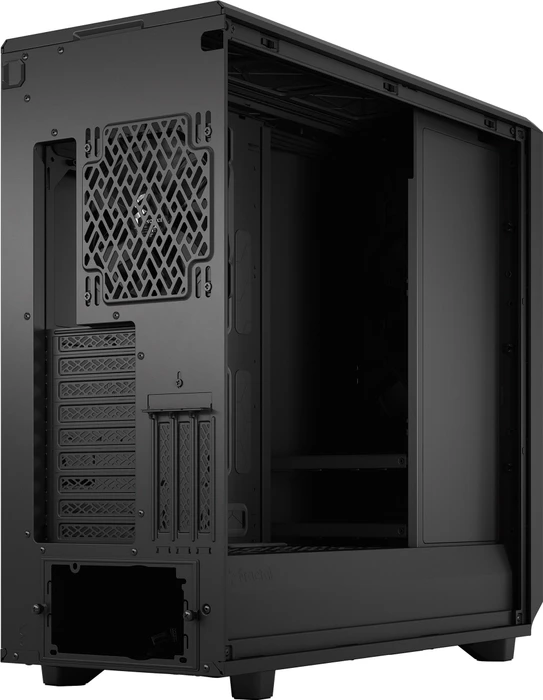

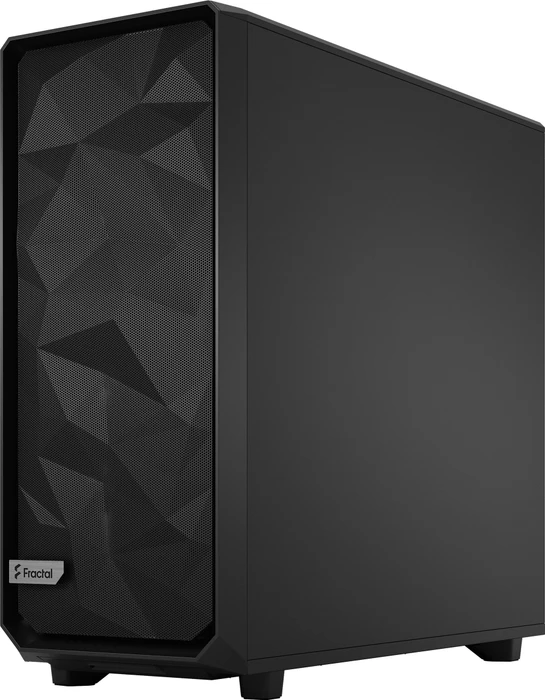

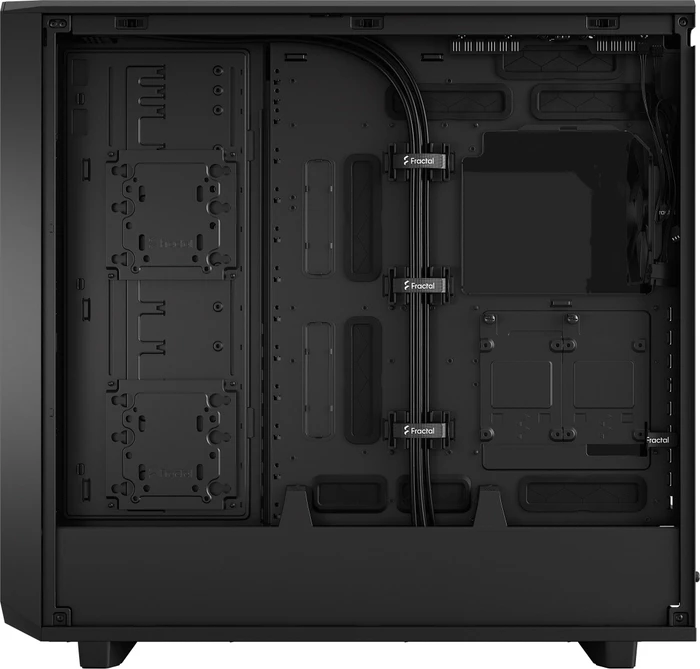

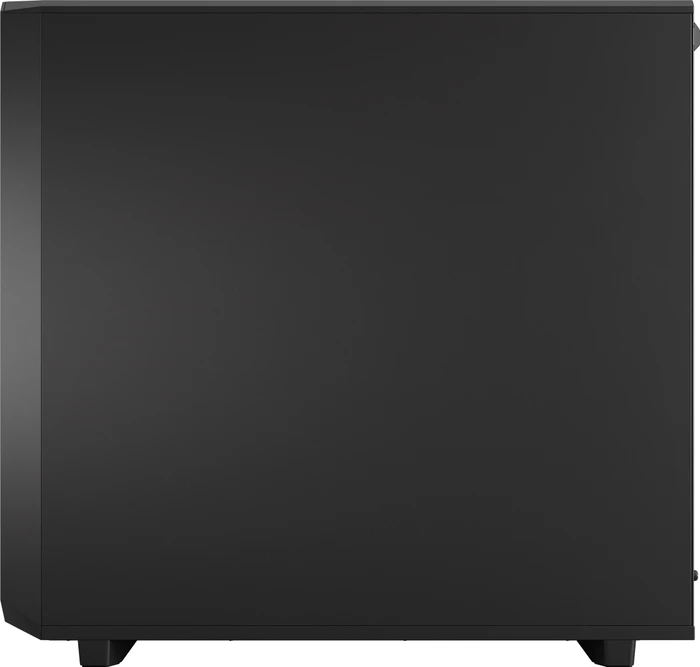

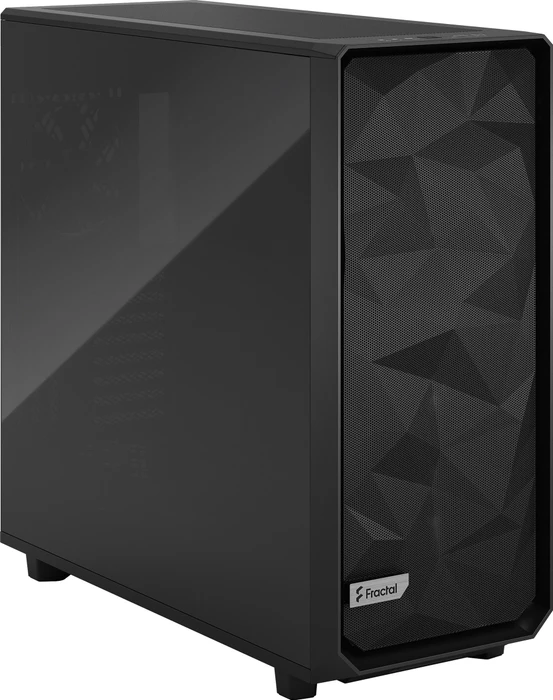

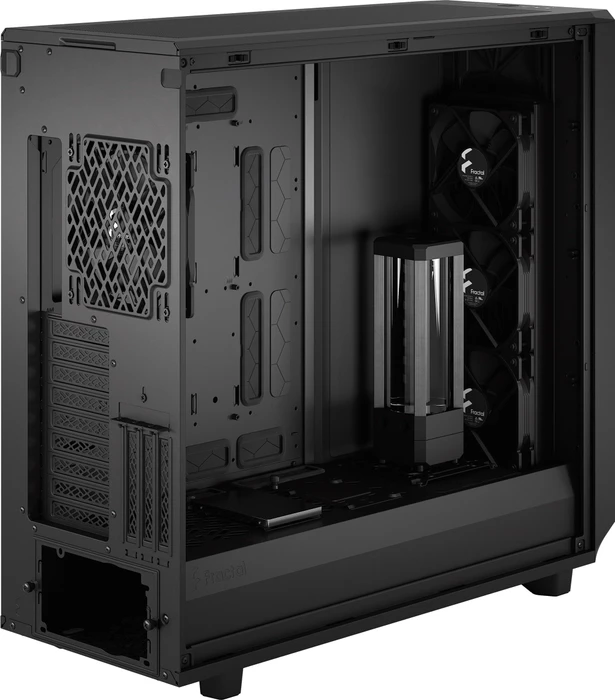

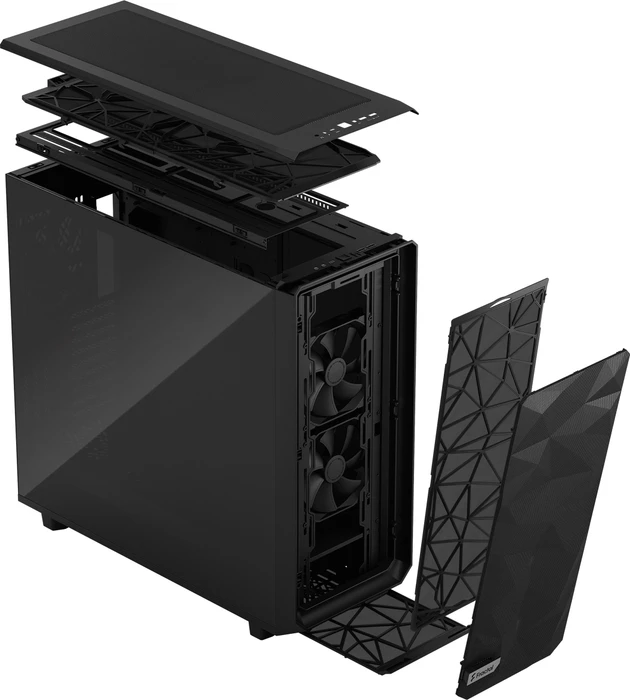

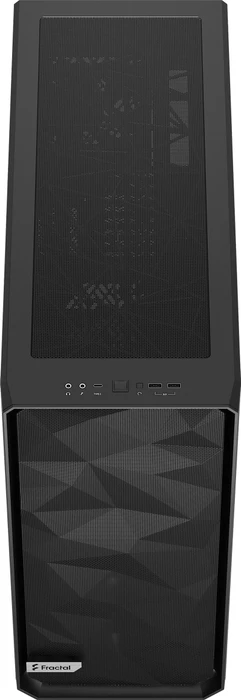

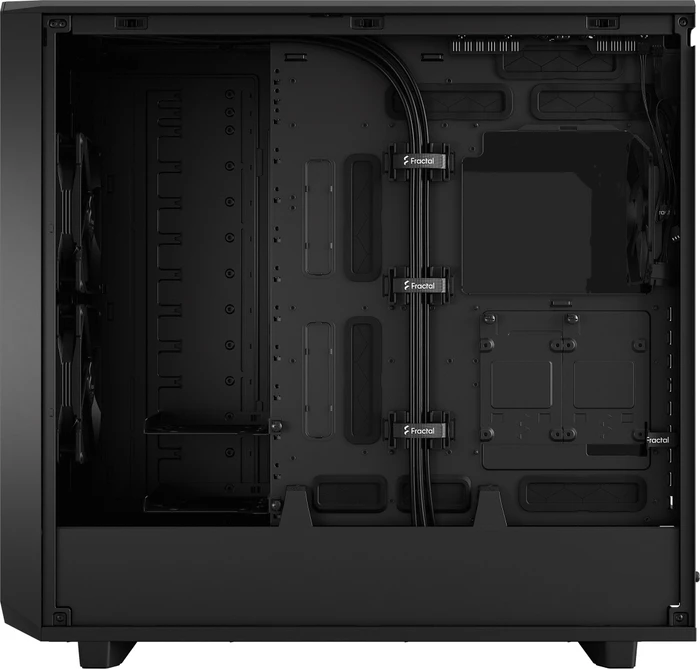

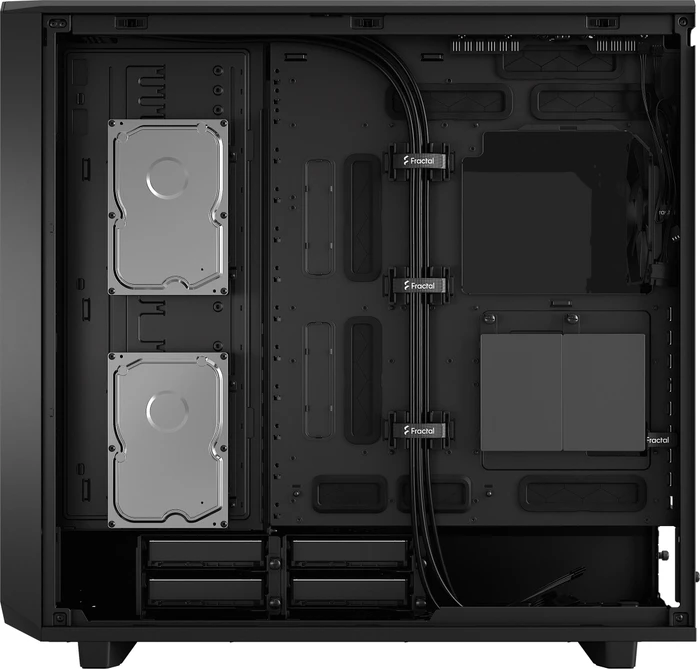

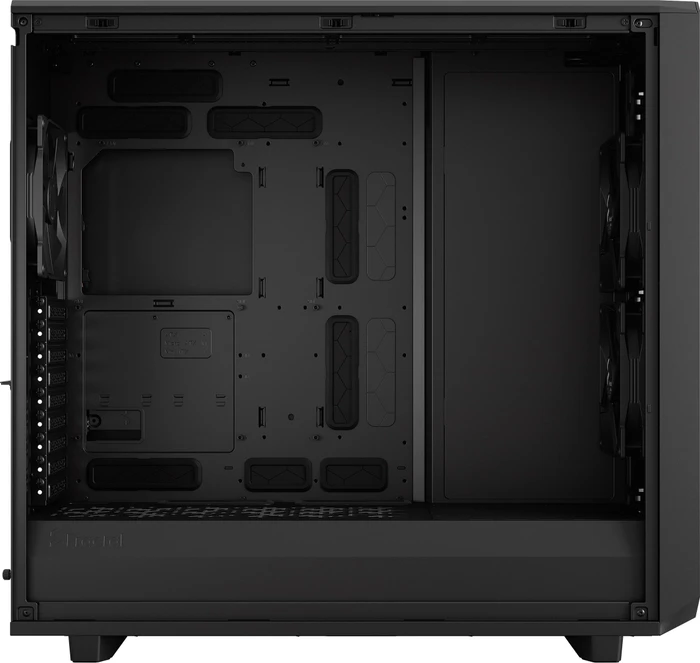

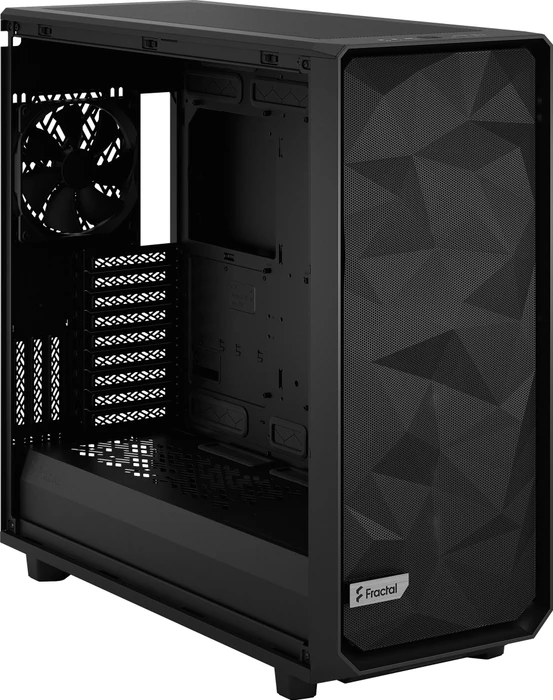

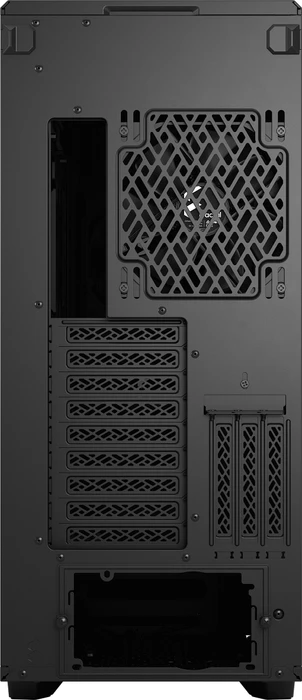

Fractal Design Meshify 2 XL Black TG Dark Tint, Glasfenster
- Gehäusetyp
- Big-Tower
- Volumen
- 81.50l
- Abmessungen (BxHxT)
- 240x566x600mm (BxHxT)
- Mainboard
- bis EE-ATX
Unterstützte Mainboards: Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (SSI CEB, 12"x10.5")/E-ATX (SSI EEB, 12"x13")/EE-ATX (13.68"x13") - Netzteil
- ATX (max. 250mm tief)
Position: unten - CPU-Kühler
- max. 185mm Höhe
- Grafikkarten
- max. 340mm (505mm ohne HDD-Käfig mit Frontlüfter, 530mm ohne HDD-Käfig ohne Frontlüfter)
- Anschlüsse
- 1x USB-C 3.2 via USB-Header Key-A (20Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm Klinke Line-Out, 1x 3.5mm Klinke Line-In
gesamt: 3x USB (2x USB-A, 1x USB-C), 2x Audio (2x Klinke) - PCI-Steckplätze
- 12 (3x Riser Card)
- Mainboard-Ausrichtung
- nach links; Anschlüsse hinten
- Front I/O Position
- Gehäuseseite: oben, Höhe: Front, Position: mittig
- Radiatorgrößen
- 120/140/240/280/360/420/480mm vorne, 120/140/240/280/360/420/480mm oben, 120mm hinten, 120/140/240/280mm unten
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-2)
Fractal Design Meshify 2 XL Black TG Light Tint, Glasfenster
FD-C-MES2X-02Ähnliche Produkte (Top-10 in PC-Gehäuse)
be quiet! Pure Base 501 Airflow Black, schallgedämmt
BG074GameMax Infinity Mini BK, Glasfenster
Fractal Design North XL Charcoal Black TG Dark, Glasfenster
FD-C-NOR1X-02Phanteks EX5-PLUS Black, Glasfenster
PH-EX526P_DBK01be quiet! Light Base 600 LX Black, schwarz, Glasfenster
BGW67Lian Li SUP01 Black, schwarz, Glasfenster
SUP01XLian Li O11 Dynamic Mini V2, schwarz, Glasfenster
O11DMIV2XPhanteks XT Pro Ultra Black, schwarz, Glasfenster
PH-XT523P1_DBK01Lian Li O11 Vision Compact, schwarz, Glasfenster
O11VPXFractal Design North Charcoal Black TG Dark, Glasfenster
FD-C-NOR1C-02- Gehäusetyp
- Big-Tower
- Volumen
- 81.50l
- Abmessungen (BxHxT)
- 240x566x600mm (BxHxT)
- Mainboard
- bis EE-ATX
Unterstützte Mainboards: Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (SSI CEB, 12"x10.5")/E-ATX (SSI EEB, 12"x13")/EE-ATX (13.68"x13") - Netzteil
- ATX (max. 250mm tief)
Position: unten - CPU-Kühler
- max. 185mm Höhe
- Grafikkarten
- max. 340mm (505mm ohne HDD-Käfig mit Frontlüfter, 530mm ohne HDD-Käfig ohne Frontlüfter)
- Anschlüsse
- 1x USB-C 3.2 via USB-Header Key-A (20Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm Klinke Line-Out, 1x 3.5mm Klinke Line-In
gesamt: 3x USB (2x USB-A, 1x USB-C), 2x Audio (2x Klinke) - PCI-Steckplätze
- 12 (3x Riser Card)
- Mainboard-Ausrichtung
- nach links; Anschlüsse hinten
- Front I/O Position
- Gehäuseseite: oben, Höhe: Front, Position: mittig
- Radiatorgrößen
- 120/140/240/280/360/420/480mm vorne, 120/140/240/280/360/420/480mm oben, 120mm hinten, 120/140/240/280mm unten
- Lüfter (vorne)
- 2x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A) oder 3x 140mm (optional) oder 4x 120mm (optional)
- Lüfter (hinten)
- 1x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A)
- Lüfter (links)
- N/A
- Lüfter (rechts)
- N/A
- Lüfter (oben)
- 3x 140mm (optional) oder 4x 120mm (optional)
- Lüfter (unten)
- 2x 140mm (optional)
- Lüfter (sonstige)
- N/A
- Intern
- 6x 2.5"/3.5", 2x 2.5", 12x 2.5"/3.5" (optional), 3x 2.5" (optional)
gesamt: max. 23x 2.5" (8x im Lieferumfang), max. 18x 3.5" (6x im Lieferumfang) - Farbe
- schwarz, innen schwarz; Herstellerbezeichnung: Black TG Dark Tint
- Beleuchtung
- ohne Beleuchtung
- Besonderheiten
- integrierte Lüftersteuerung, Kabelmanagement, Staubfilter, Grafikkarte vertikal montierbar, Sichtfenster aus Glas
- Design/Layout
- Meshfront
- Gewicht
- 14.10kg
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 11.11.2020, 17:32
-
Stand: 11.11.2020 .pdf [582.33 KB]
-
Stand: 22.02.2024 .pdf [30.32 MB]
-
Stand: 11.11.2020 .jpg [301.49 KB]
-
fractal-design.com: Informationen zur Garantie
-
support.fractal-design.com: Difference in tint levels between tempered glass versions
-
fractal-design.com: Warranty information
-
youtube.com: Fractal Design: How To - Meshify 2/XL Tempered Glass Panel Transit Lock
-
youtube.com: Fractal Design: How to - Meshify 2/XL Drive Cage Relocation
-
youtube.com: Fractal Design: How to - Meshify 2/XL Front Panel Removal
-
youtube.com: Fractal Design: How to - Meshify 2/XL Internal Layout Conversion
-
youtube.com: Fractal Design: How to - Meshify 2/XL Radiator Bracket
-
youtube.com: Fractal Design: How to - Meshify 2/XL Filter Removal
-
youtube.com: Gamers Nexus: "E-ATX" Is A Lie: How Motherboard Makers Ruined Form Factors
-
Information beim Hersteller (deutsch)
-
Information beim Hersteller (englisch)
12 Bewertungen für Fractal Design Meshify 2 XL Black TG Dark Tint, Glasfenster
Teilen Sie uns Ihre Meinung zu Fractal Design Meshify 2 XL Black TG Dark Tint, Glasfenster mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
nikktech.com: Fractal Design Meshify 2 XL Computer Case Review (translate)
I’m quite picky when it comes to PC towers, whenever i need to choose one to house one of my test rigs that is. Just imagine that the previous tower to house my Intel Z390 test rig (and probably my Z590 system which I’ll be replacing it with) was the be quiet! Dark Base Pro 900 Rev.2. Well, the Meshify 2 XL actually delivers the same and more and so aside excellent build quality and interior space enough for even the largest hardware components around it also looks very nice and packs several useful features (such as the side panel latching mechanism, Nexus+ fan hub, the versatile - although optional - drive tray configuration and the removable air-filters). My sole objection with Fractal is over the non-RGB fans used which is a shame since the Meshify 2 XL would look great with A/RGB fans.
-
youtube.com: Gamers Nexus: Extra Large Case: Fractal Meshify 2 XL Case Review for "E-ATX" / SSI-EEB
The Fractal Meshify 2 XL is a larger version of the Fractal Meshify 2, which we already positively reviewed. The Meshify 2 XL uses its additional space to support more drives (up to 18) or water cooling components, with support for large radiators. This has the Meshify 2 XL as more of a competitor to the Lian Li O11 XL or Enthoo Pro than to the mid-tower cases that the non-XL competes with.
-
gamersnexus.net: Fractal Meshify 2 XL Large Case Review: "E-ATX" / SSI-EEB Enclosure (translate)
The Meshify 2 XL is an XL Meshify 2 or a meshified Define 7 XL. From either perspective, it’s not something wildly different. We can certainly recommend buying it over the Define 7 XL because of the increased ventilation, but there’s no reason to choose the Meshify 2 XL over the Meshify 2 unless parts won’t fit in the smaller case, which is already larger than a typical mid-tower.
-
overclock3d.net: Fractal Meshify 2/ Meshify 2 XL Review (translate)
It is hard not to be impressed with what Fractal is offering with their Meshify 2 and Meshify 2 XL. These cases are clearly close cousins of the Define 7 and its XL counterpart. Still, they come with more attractive pricepoints and design changes which cater the enclosures more towards gamers and overclockers and less towards professional and workstations users. Both cases offer distinctive looks, and both offer users an excellent feature set.
