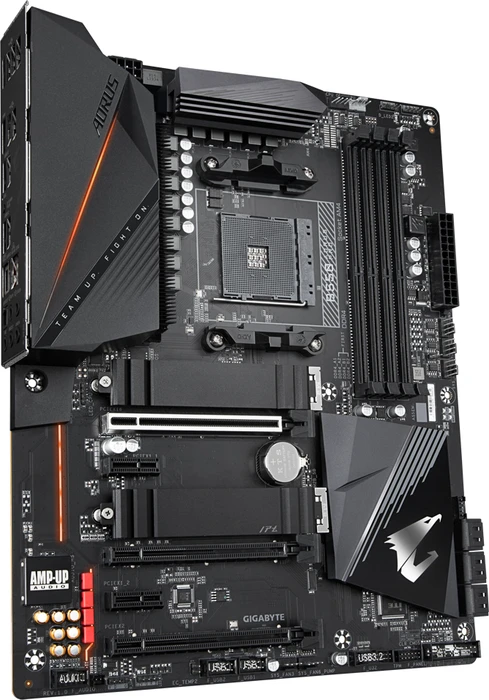

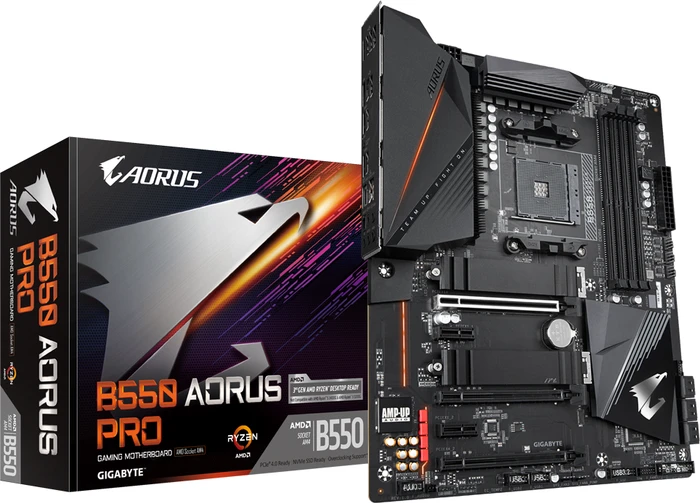

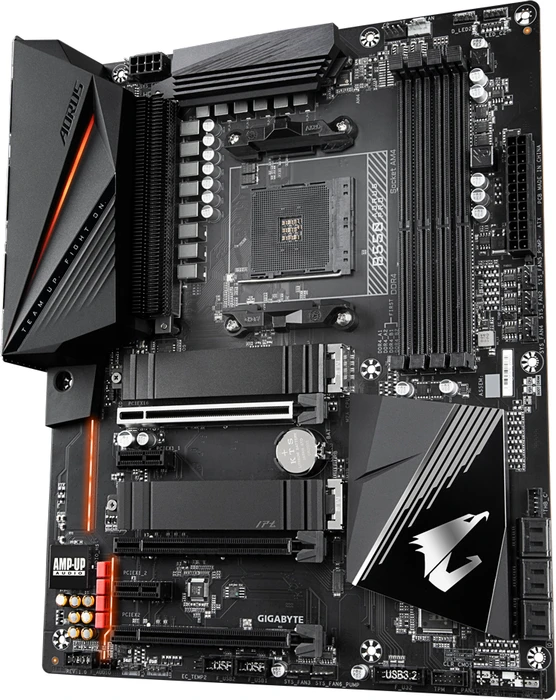

GIGABYTE B550 AORUS Pro
- Formfaktor
- ATX
- Sockel
- AMD AM4
- Chipsatz
- AMD B550
- CPU-Kompatibilität
- Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, ohne TDP-Einschränkung (Hersteller-Liste)
- RAM
- 4x DDR4 DIMM, dual PC4-43200U/DDR4-5400 (OC), max. 128GB (UDIMM)
- Erweiterungsslots
- 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x2), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242)
- Anschlüsse extern
- 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s, B550), 2x USB-A 3.1 (10Gb/s, B550), 3x USB-A 3.0 (5Gb/s), 6x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125B), 5x Klinke, 1x Toslink
- Anschlüsse intern
- 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x TPM-Header
- Header Kühlung
- 1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/Pumpe 4-Pin, 2x Lüfter/Pumpe 4-Pin, 4x Lüfter 4-Pin, 2x Thermal-Sensor
- Header Beleuchtung
- 3x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
- Buttons/Switches
- USB BIOS Flashback/Q-Flash Plus (extern)
- Audio
- 7.1 (Realtek ALC1220)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-10)
GIGABYTE B550 Gaming X V2
GIGABYTE B550 AORUS Elite V2
GIGABYTE B550M DS3H
GIGABYTE B550 AORUS Elite AX V2 (Rev. 1.1)
GIGABYTE B550I AORUS Pro AX (Rev. 1.0)
GIGABYTE B550M AORUS Elite
GIGABYTE B550 Gaming X
GIGABYTE B550M DS3H AC
GIGABYTE B550M K
Ähnliche Produkte (Top-10 in AMD Sockel AM4)
GIGABYTE B550 Gaming X V2
MSI B550-A Pro
MSI MPG B550 Gaming Plus
ASUS ROG Strix B550-A Gaming
GIGABYTE B550 AORUS Elite V2
ASRock B550M Pro4
GIGABYTE B550M DS3H
GIGABYTE B550 AORUS Elite AX V2 (Rev. 1.1)
ASUS ROG Strix B550-F Gaming WIFI II
ASUS Prime B450M-A II
27 Produkteigenschaften
- Formfaktor
- ATX
- Sockel
- AMD AM4
- Chipsatz
- AMD B550
- CPU-Kompatibilität
- Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, ohne TDP-Einschränkung (Hersteller-Liste)
- RAM
- 4x DDR4 DIMM, dual PC4-43200U/DDR4-5400 (OC), max. 128GB (UDIMM)
- Erweiterungsslots
- 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x2), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242)

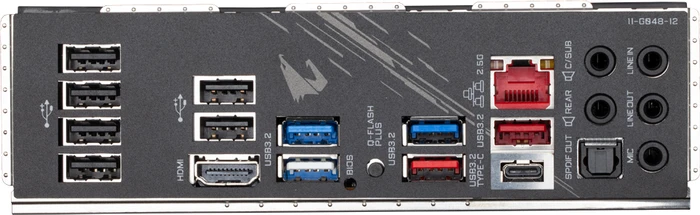

- Anschlüsse extern
- 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s, B550), 2x USB-A 3.1 (10Gb/s, B550), 3x USB-A 3.0 (5Gb/s), 6x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125B), 5x Klinke, 1x Toslink
- Anschlüsse intern
- 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (B550), 1x TPM-Header
- Header Kühlung
- 1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/Pumpe 4-Pin, 2x Lüfter/Pumpe 4-Pin, 4x Lüfter 4-Pin, 2x Thermal-Sensor
- Header Beleuchtung
- 3x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
- Buttons/Switches
- USB BIOS Flashback/Q-Flash Plus (extern)
- Audio
- 7.1 (Realtek ALC1220)
- Grafik
- iGPU
- Wireless
- N/A
- RAID-Level
- 0/1/10 (B550)
- Multi-GPU
- N/A
- Stromanschlüsse
- 1x 24-Pin ATX, 1x 8-Pin EPS12V
- VRM
- 14 virtuelle Phasen (12+2), 8 reale Phasen (6+2), PWM-Controller: RAA229004 (max. 8 Phasen)
- MOSFETs CPU (VCORE)
- 12x 50A SiC651C
- MOSFETs SoC (VCCGT)
- 2x 50A SiC651ACD
- Beleuchtung
- RGB, 2 Zonen (I/O-Abdeckung, Audio-Signalweg)
- BIOS
- 1x 32MB (256Mb)
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/O-Blende integriert, 2x M.2-Passivkühler, ECC-Unterstützung, Onboard TPM 2.0 Unterstützung (AMD fTPM)
- Herstellergarantie
- drei Jahre (ab Produktionsdatum, Abwicklung über Fachhändler)
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 22.05.2020, 11:27
1 Dokument
-
Stand: 22.05.2020 .pdf [13.13 MB]
11 Weiterführende Links
-
hardwareluxx.de: AMD 3rd Gen AM4 Mainboards & VRM Liste (X570, PRO565, B550, A520)
-
youtu.be: Die Grafikkarte mit DISPLAY! AORUS RX 6800 XT Master + Ryzen 9 5900X
-
youtu.be: Ich bekomme einen NEUEN COMPUTER gesponsort! RINGLIFE Vlog
-
computerbase.de: AMD B550-Chipsatz auf Mainboard im Test
-
igorslab.de: Wer es gern bunt treibt: der ultimative RGB-Guide für alle, die nach einer Erleuchtung suchen
-
pcgameshardware.de: [PLUS] OC-Vergleich: Welches AM4-Mainboard für Ryzen 2000 / Ryzen 3000?
-
computerbase.de: RGB-LED-Plattformen im Test: Aura, RGB Fusion, Mystic Light und iCUE im Vergleich
-
hardwareluxx.de: PGA AM4 B350 / X370 / B450 / X470 VRM Liste
-
computerbase.de: StoreMI & FuzeDrive im Test: (Kostenloser) HDD-Turbo für Systeme mit AMD Ryzen
-
gigabyte.com: The BIOS of GIGABYTE Motherboards Features TPM 2.0 Function to Support Windows 11 Upgrade
-
docs.google.com: VRM: X570/X470/X370/B550/B450/B350/A520/A320 Motherboards
9 Testberichte
-
-
guru3d.com: Gigabyte B550 Aorus Pro review (translate)
Gigabyte offers a nice B550 motherboard with the Aorus Pro. I just wish the B550 series overall would be a notch cheaper. My gut feeling tells me that if this board would be priced 150 SUD< it would have been a hit. I mean, decent features, good looks, proper performance and satisfactory VRM, but it is just that. The audio is Realtek 1220 based backed with WIMA capacitors. Next to that, you'll have an abundance of USB 3.2 connectivity at your disposal making this board really feature-rich. Of course, the VRM design is majestic, even after 15 minutes of 100% load on a 12-core processor I could place my hand on the VRM heatsink, it remains luke-warm. The overall performance is in line with X570, and memory support is great. With B550 AMD still allowed partial PCIe Gen 4.0 support on one M2 slot and your graphics card (x16 lanes), which is great to see. In closing I can keep things simple, this is your normal mainstream motherboard that will tick all the boxes you need to build even a powerful PC. Compared to X570 the differences are harder to spot compared to previous generations. Its feature set is more than sufficient for all your needs. If pricing would come down a bit, it would be a very recommended product as other then pricing it's delivering on all fronts.
-
-
techpowerup.com: Gigabyte B550 AORUS Pro Review (translate)
The Gigabyte B550 AORUS Pro is a well built, practical board with great features, including 2.5 Gb/s LAN, a powerful VRM, and an integrated I/O shield. When it comes to looks, the Gigabyte B550 AORUS Pro may not turn heads like some more flashy designs, but the neutral gray and black theme of the B550 AORUS Pro has an appeal of its own and will be an easy fit in almost any build.
-
-
-
