GIGABYTE Z790 AORUS Elite AX-W (Intel 1700)

Testbewertung: 82
aus 1 Testbericht
Info beim Hersteller
Alle 30 Varianten anzeigen
Formfaktor
ATX
Sockel
Intel 1700 (LGA1700)
Chipsatz
Intel Z790
RAM
4x DDR5 DIMM-Slots, Dual Channel, max. 256GB UDIMM Non-ECC
RAM-Datenrate
DDR5-4800 (Celeron G6000/​Pentium Gold G7000/​Core i-12000), DDR5-4800/​DDR5-5600 (Core i-13000/​Core i-14000), max. DDR5-7600 OC
RAM-Profile
Intel XMP 3.0
ECC-Unterstützung
nein
Anschlüsse extern
1x DisplayPort 1.2 (HDCP 2.3, iGPU), 1x HDMI 2.1 TMDS (HDCP 2.3, iGPU), 1x USB-C 3.2 (20Gb/​s), 2x USB-A 3.1 (10Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x USB 3.0 (5Gb/​s), 1x Toslink S/​PDIF Out, 2x 3.5mm Klinke (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4)
M.2-Slots
3x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280), 1x M.2/​M-Key (PCIe 4.0 x4/​SATA, 22110/​2280), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
6x SATA 6Gb/s (Z790)
Anbieter aus:
Anbieter
Händlerbewertung
Verfügbarkeit / Versandkosten*
Produktbezeichnung des Händlers
Es gibt derzeit keine Anbieter für dieses Produkt (mit diesen Filterkriterien) in der gewählten Region.
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.

Weitere Varianten (Top-10)

Ähnliche Produkte (Top-10 in Mainboards)

Formfaktor
ATX
Sockel
Intel 1700 (LGA1700)
Chipsatz
Intel Z790
RAM
4x DDR5 DIMM-Slots, Dual Channel, max. 256GB UDIMM Non-ECC
RAM-Datenrate
DDR5-4800 (Celeron G6000/​Pentium Gold G7000/​Core i-12000), DDR5-4800/​DDR5-5600 (Core i-13000/​Core i-14000), max. DDR5-7600 OC
RAM-Profile
Intel XMP 3.0
ECC-Unterstützung
nein

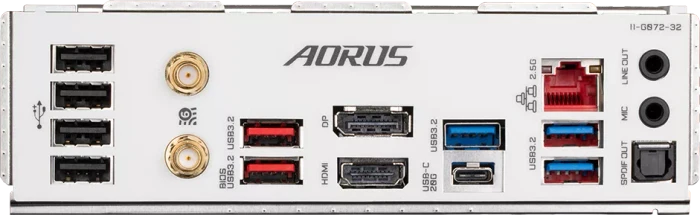

Anschlüsse extern
1x DisplayPort 1.2 (HDCP 2.3, iGPU), 1x HDMI 2.1 TMDS (HDCP 2.3, iGPU), 1x USB-C 3.2 (20Gb/​s), 2x USB-A 3.1 (10Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x USB 3.0 (5Gb/​s), 1x Toslink S/​PDIF Out, 2x 3.5mm Klinke (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4)
M.2-Slots
3x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280), 1x M.2/​M-Key (PCIe 4.0 x4/​SATA, 22110/​2280), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
6x SATA 6Gb/s (Z790)

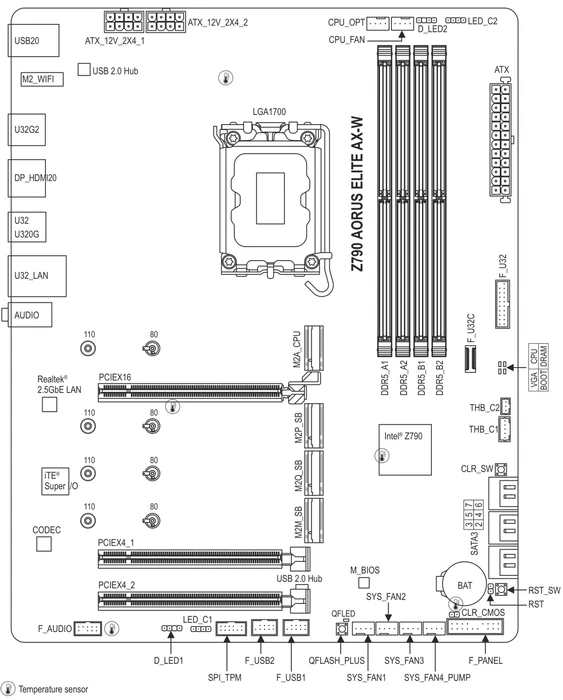

Anschlüsse intern - USB
1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)
Anschlüsse intern - sonstige
1x TPM Header, 1x Thunderbolt Header 5-Pin, 1x RTD3 Header, 1x Chassis Intrusion Header
Anschlüsse intern - Kühlung
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/​Pumpe 4-Pin PWM, 3x Lüfter 4-Pin PWM, 1x Lüfter/​Pumpe 4-Pin PWM
Anschlüsse intern - Stromversorgung
1x 24-Pin ATX, 2x 8-Pin EPS12V
Anschlüsse intern - Beleuchtung
2x 4-Pin RGB (+12V/​G/​R/​B, max. 2A), 2x 3-Pin ARGB (+5V/​DATA/​GND, max. 5A)
Buttons/Switches
Clear-CMOS-Button (intern), Power-Button (intern), Reset-Button (intern), USB BIOS Flashback/​Q-Flash Plus (intern)
Audio
Realtek ALC897
Netzwerk
Realtek RTL8125BG (2.5Gb/​s)
Grafik
iGPU
RAID-Level
0/​1/​5/​10 (Z790)
Wireless
Wi-Fi 6E (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Intel AX211), Bluetooth 5.3
VRM-Design
16+1+1, 17 virtuelle CPU-Phasen (2x8+1), 9 reale CPU-Phasen (8+1)
MOSFETs VCORE
16x 70A FDFM5062 (SPS)
MOSFETs SOC/VCCGT
1x 60A NCP303160 (DrMOS)
MOSFETs Sonstige
1x
PWM-Controller
NCP81530R (max. 10 Phasen)
Beleuchtung
RGB, 1 Zone (Chipsatz-Kühler)
BIOS
1x 32MB (256Mb)
Segment
Mainstream
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/​O-Blende integriert, White Build-kompatibel (PCB primär schwarz), 4x M.2-Passivkühler, unterstützt AMD 2-Way-CrossFireX (x16/​x4)
Garantie
3 Jahre (Info)
USB-Schreibweise
Link
Letztes Preisupdate
-
Gelistet seit
19.05.2023, 19:01
Laden ...

Bewertung für GIGABYTE Z790 AORUS Elite AX-W (Intel 1700)

Teilen Sie uns Ihre Meinung zu GIGABYTE Z790 AORUS Elite AX-W (Intel 1700) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.
Laden ...
  • englisch
    geekawhat.com: Gigabyte Z790 AORUS Elite AX Review – A Reasonably Priced DDR5 Board! (translate)
    Testbewertung:
    Testbewertung: 82
    Originalwertung: 4.1/5

    Gigabyte’s Z790 AORUS Elite AX is one of the cheapest DDR5 motherboards we’ve ever looked at in the office. Despite sporting the much more expensive generation of RAM, Gigabyte has managed to keep costs down while still offering a competitive amount of features for consumers to sink their teeth into. You’ve got access to a PCI-E 5.0 ready GPU slot, set to handle the next generation of graphics cards, while offering plenty of Gen4 compatible M.2 slots for those looking to pick up some blazing fast storage. The design is somewhat more simplistic by reducing the amount of heatsinks seen on the board, but what it lacks in aesthetic, it makes up for in features. Overall I’m very happy with this board. Although DDR5 isn’t quite worth upgrading to as of yet, we’ll be seeing significant returns with motherboards like the AORUS Elite AX when DDR5 starts to provide a big performance boost in both gaming and workstation applications.

  • englisch
    eteknix.com: Gigabyte Z790 Aorus Elite AX Motherboard Review (translate)

    Yes, this is by far one of the best performance and value options for Z790 right now. With support for the latest and greatest hardware, and the fact that it not only looks fantastic but also delivered impressive performance across the board, the Gigabyte Z790 Elite AX gets top marks all round from me.

  • englisch
    overclockers.com: Gigabyte Z790 AORUS Elite AX Motherboard Review (translate)

    Gigabyte Z790 AORUS Elite AX is a good motherboard but leaves some mixed feelings. On the one hand, it gives everything that most gamers need, it’s fast and overclocks well. On the other hand, when we start to analyze all the features and components, then we get the feeling that something is missing and it could be better. I assume that computer enthusiasts will be picky about the audio codec, lack of double-side thermal cooling for three M.2 SSD, only a few fast USB ports, and some more things mentioned in the review, which are less important. However, most users won’t call it a disadvantage considering the motherboard’s price. Newegg sells the Gigabyte Z790 AORUS Elite AX (DDR5) for $259.99. This is clearly a great deal, especially for less picky users.

  • englisch
    overclock3d.net: Gigabyte Z790 Aorus Elite AX Review (translate)

    Performance is decent, connectivity is decent, and the looks are fine enough. It's easily enough to win our OC3D Gamers Choice award as an relatively affordable way to get in to the Z790 sphere. Just when you think about Aorus, and especially when you see the Aorus Master, you wonder how little motherboard you can get and still be under the Aorus umbrella.
