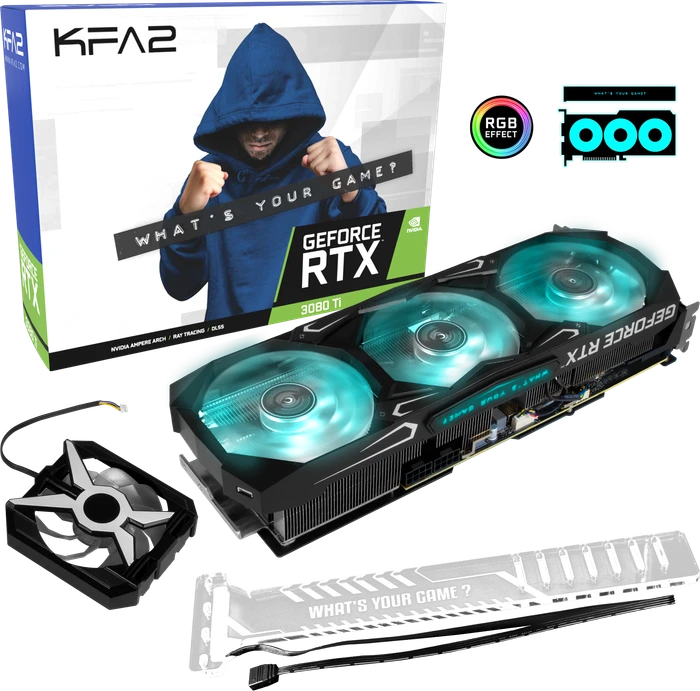

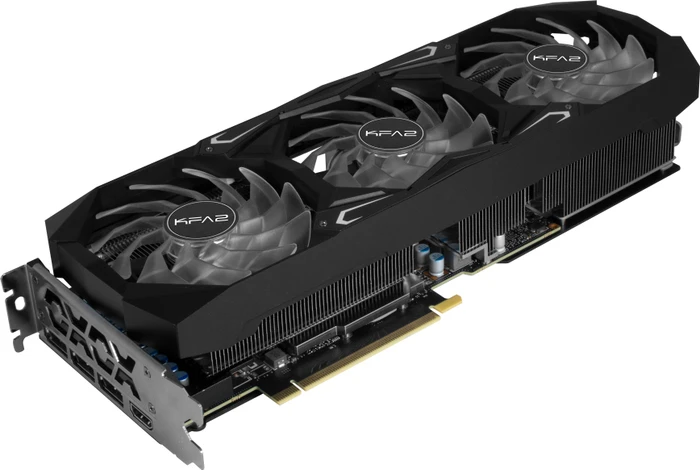

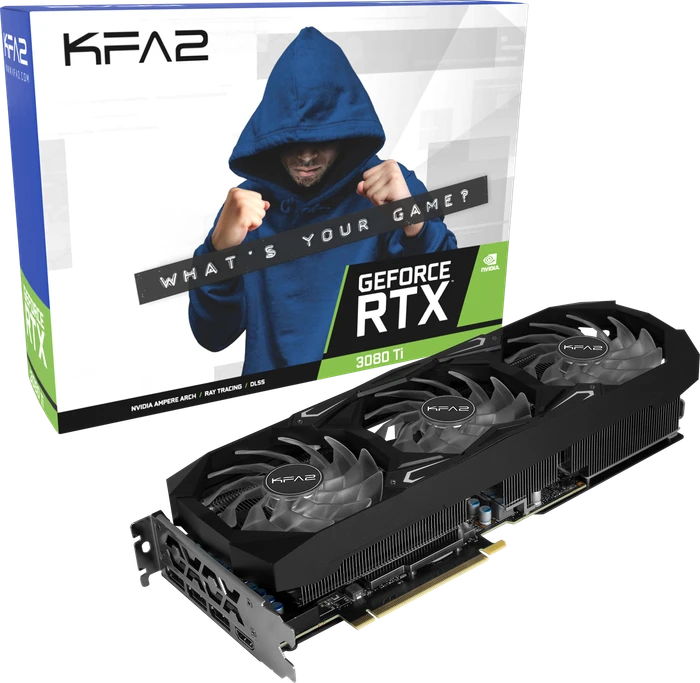

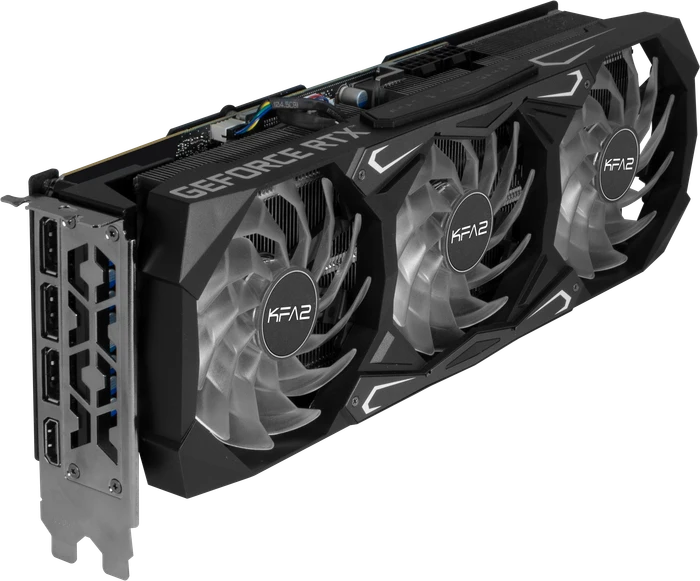

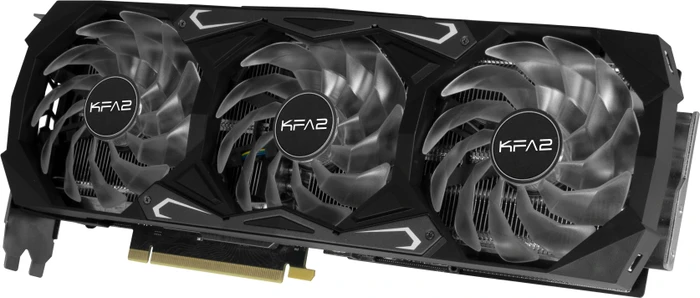

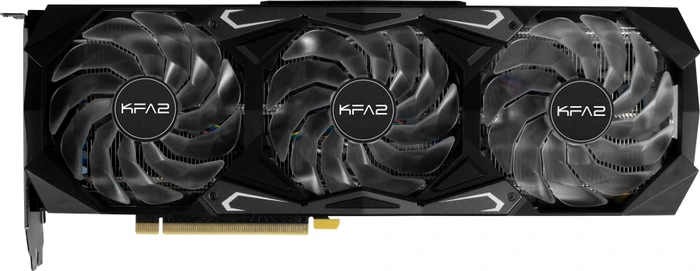

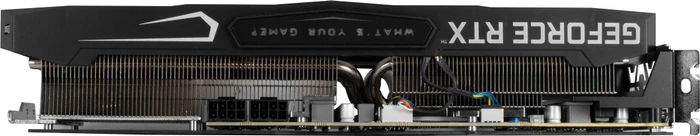

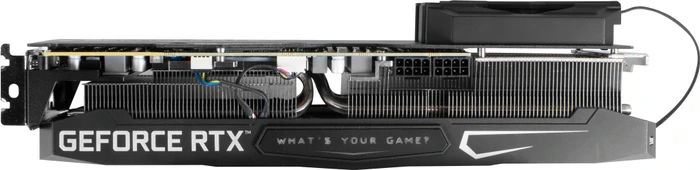

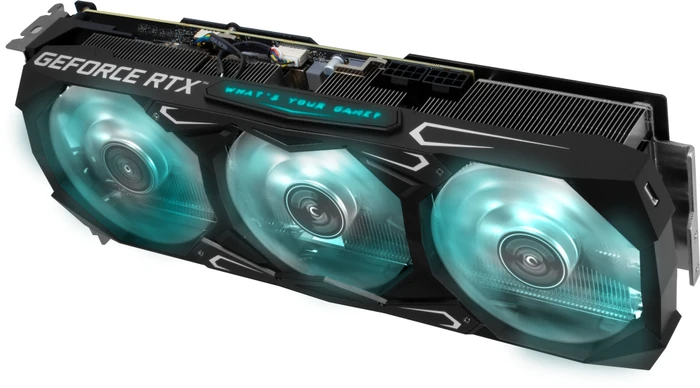

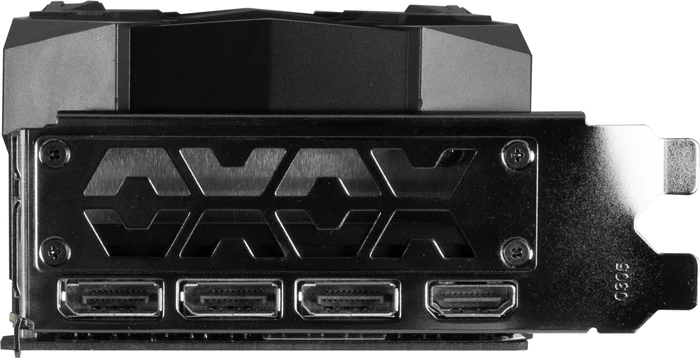

KFA2 GeForce RTX 3080 Ti SG (1-Click OC), 12GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 3080 Ti
- Speicher
- 12GB GDDR6X, 384bit, 19Gbps, 1188MHz, 912GB/s
- Takt Basis
- 1365MHz (Standard-Profil), 1365MHz (OC-Profil)
- Takt Boost
- 1695MHz (Standard-Profil), 1710MHz (OC-Profil)
- Übertaktung
- +45MHz Boost (OC-Profil), +30MHz Boost (Standard-Profil)
- Kühlung
- 3x Axial-Lüfter (92mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 350W (NVIDIA)
- Stromanschlüsse
- 2x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten

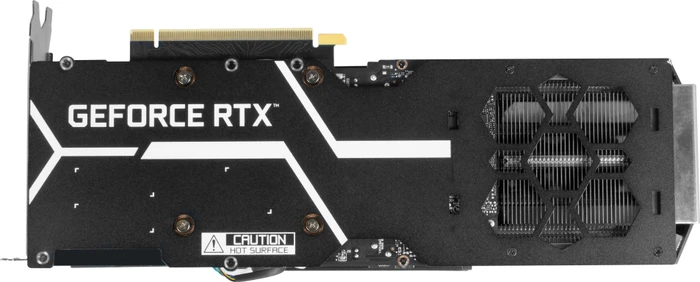

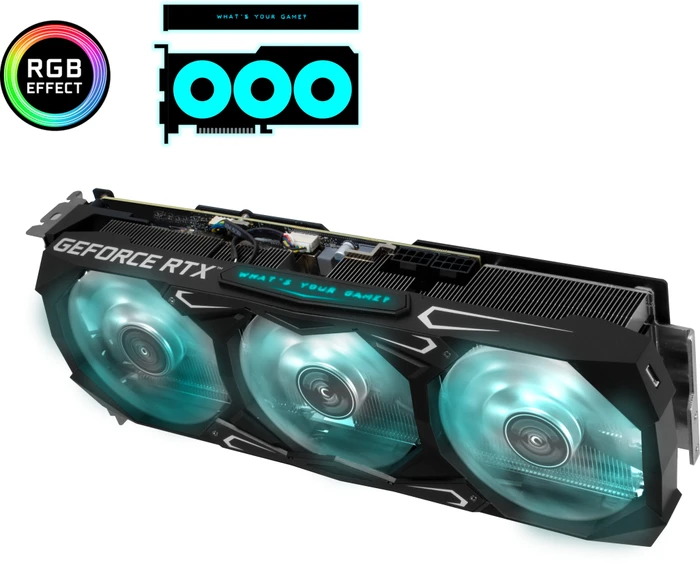

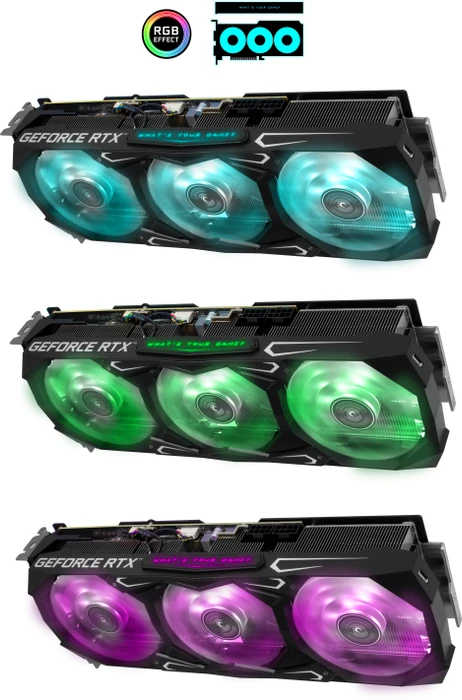

- mit LHR (Lite Hash Rate), Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode)
- Gesamthöhe
- Triple Slot
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00ASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RGIGABYTE GeForce RTX 5080 Windforce OC SFF 16G, 16GB GDDR7, HDMI, 3x DP
GV-N5080WF3OC-16GDXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9- Modell
- NVIDIA GeForce RTX 3080 Ti
- Speicher
- 12GB GDDR6X, 384bit, 19Gbps, 1188MHz, 912GB/s
- Takt Basis
- 1365MHz (Standard-Profil), 1365MHz (OC-Profil)
- Takt Boost
- 1695MHz (Standard-Profil), 1710MHz (OC-Profil)
- Übertaktung
- +45MHz Boost (OC-Profil), +30MHz Boost (Standard-Profil)
- Kühlung
- 3x Axial-Lüfter (92mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 350W (NVIDIA)
- Stromanschlüsse
- 2x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- mit LHR (Lite Hash Rate), Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode)
- Gesamthöhe
- Triple Slot
- Abmessungen
- 329x130x61mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 273 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 546 TOPS (FP16)
- GPU-Rechenleistung
- 34.82 TFLOPS (FP16), 34.82 TFLOPS (FP32), 0.54 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ampere (ab 2020/Q3)
- Chip-Bezeichnung
- GA102 (GA102-225-A1)
- Chip-Ausbau
- 95.2% aktive Recheneinheiten (80/84 SM)
- Chip-Konfiguration
- 80SM (10240SP/320TMU/112ROP), 80 RT-Cores, 320 Tensor-Cores, 6MiB L2-Cache
- Chip-Fertigung
- Samsung 8nm (8nm)
- Chip-Größe
- 628mm², monolithisch, 28.3 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen, 273 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 3090 Ti
GeForce RTX 3090
GeForce RTX 3080 Ti
GeForce RTX 3080
RTX A6000
RTX A5500
RTX A5000
RTX A4500
A40
A10 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.6 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (7th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 31.05.2021, Verkaufsstart: 03.06.2021, UVP: 999 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 3080 Ti - 12GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 07.06.2021, 10:04
Bewertung für KFA2 GeForce RTX 3080 Ti SG (1-Click OC), 12GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu KFA2 GeForce RTX 3080 Ti SG (1-Click OC), 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
hardware-mag.de: KFA2 RTX 3080 Ti SG (1-Click OC) im Test

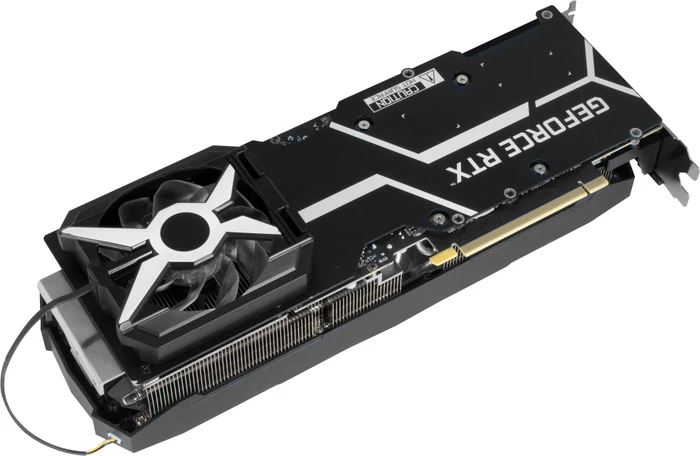

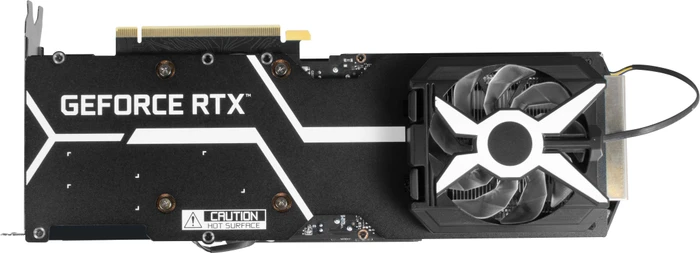

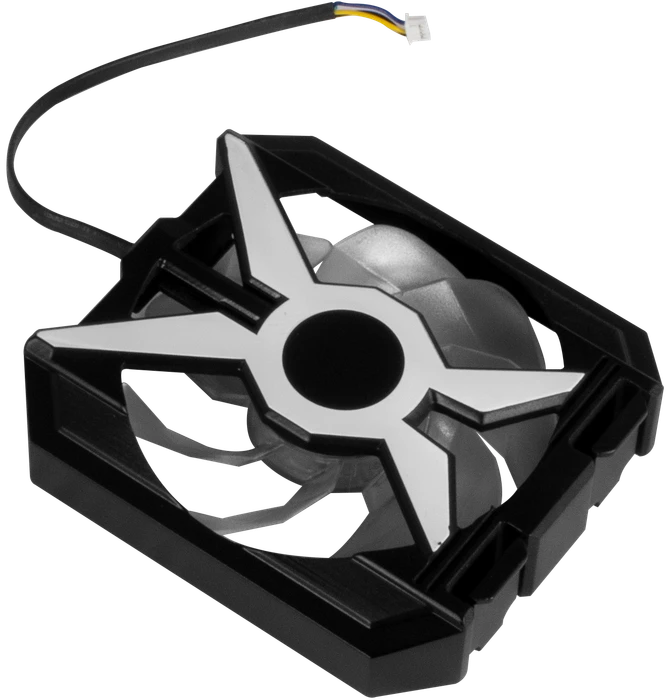

Mit der GeForce RTX 3080 Ti SG von KFA2 haben wir heute einen Boliden inkl. extravaganter Kühlung und Optik, optionalem Zusatzlüfter „1-Clip Booster“ sowie einfachem Overclocking per „1-Click OC“ Feature im Test.
-
hardwareinside.de: KFA2 GEFORCE RTX 3080 Ti SG (1-Click OC) im Test
Mit Geforce RTX 3080 Ti SG (1-Click OC) hat KFA2 eine wirklich Leistungsstarke zusätzlich ab Werk übertaktete Grafikkarte auf den Markt gebracht, die ihres Gleichen sucht. Die zusätzliche 1- Click Übertaktungsfunktion mittels Software lässt sich nicht nur einfach bedienen, sondern gibt auch noch die Möglichkeit das letzte bisschen Leistung herauszukitzeln. Sie bietet neben ihrem schicken Design auch eine Top-Verarbeitung.
-
hardwareluxx.de: EVGA und KFA2: Zwei Modelle der GeForce RTX 3080 Ti im Test
Mit der GeForce RTX 3080 Ti kann NVIDIA ein Modell aufbieten, welches in der Leistung dem bisherigen Spitzenmodell, der GeForce RTX 3090, recht nahe kommt, aber eben "nur" die Hälfte des Speichers bietet. Mit den Varianten von Gigabyte und Inno3D haben wir uns schon einige Einstiegsmodelle angeschaut, von MSI kam ein High-End-Modell hinzu. Jetzt werden wir in diesem Doppeltest die EVGA GeForce RTX 3080 Ti FTW3 Ultra Gaming und KFA2 GeForce RTX 3080 Ti SG unter die Lupe nehmen.
-
guru3d.com: KFA2 GeForce RTX 3080 Ti SG review (translate)
Granted, the KFA2 GS edition GeForce RTX 3080 Ti is not a product that is aiming itself in the 6th gear of performance. It offers close to reference level performance, sometimes a tad faster, sometimes a frame or so slower. It does offer that reference level performance (which for an RX 3080 Ti is terrific), good looks, very decent energy consumption, and a few extras. The temps are fine, the acoustics okay. But in the end, all that design did not bring in a lot of additional performance; the card is running with a close to 350W power limiter yet manages to increase overall framerates by 1 maybe two percent. It did tweak well manually, though, but more on that later. I'll keep saying this, but it is a bizarre time to write reviews on graphics cards with the shortages and insane price hikes related to that. Really what the market needs are affordable, high-performing graphics cards that sit well under the 500 USD marker. The 3080 Ti does fall into a very premium niche and likely will be hard to get. The good news is that the new NVIDIA SKUs are mostly hash-rate limited on the AIB side, preventing cryptocurrency miners from dominating sales. The reality, however, is also that NVIDIA can only fabricate only a certain number of GPUs, and they'll still need to make the call on how much allocation ends up at gamers and how much is intended for other markets. We hope NVIDIA will make wise decisions because if the trend continues, the PC gaming market will die off as they need to realize what software houses will invest in PC gaming if that market is on a sharp decline?
