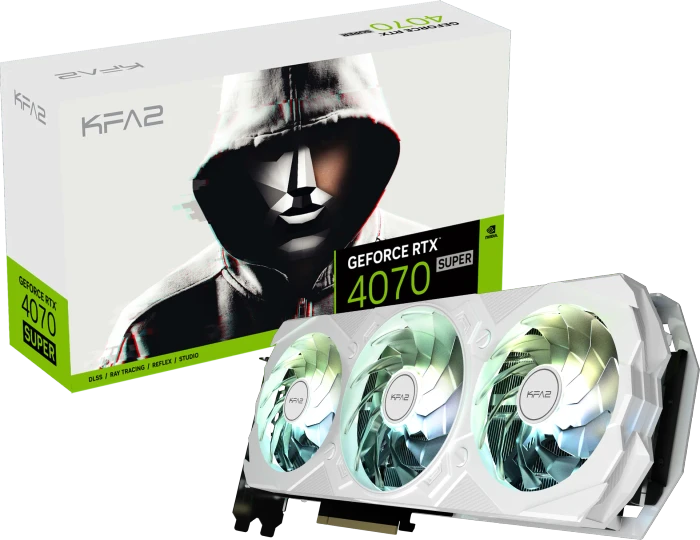

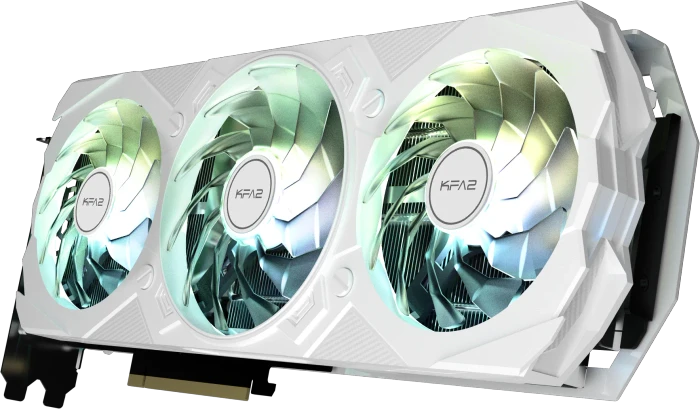

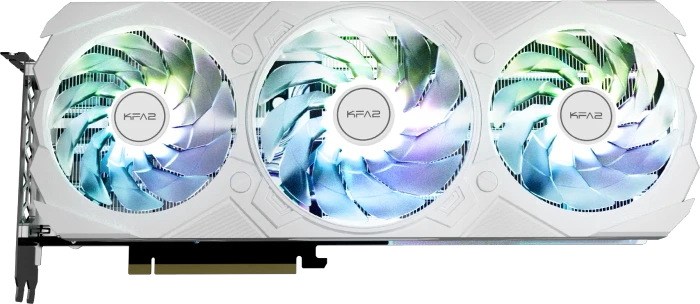

KFA2 GeForce RTX 4070 SUPER EX Gamer White (1-Click OC), 12GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 SUPER
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz (Standard-Profil), 1920MHz (OC-Profil)
- Takt Boost
- 2565MHz (Standard-Profil), 2580MHz (OC-Profil)
- Übertaktung
- +105MHz Boost (OC-Profil), +90MHz Boost (Standard-Profil)
- Kühlung

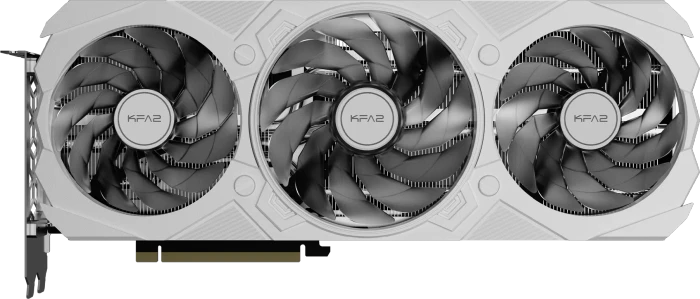

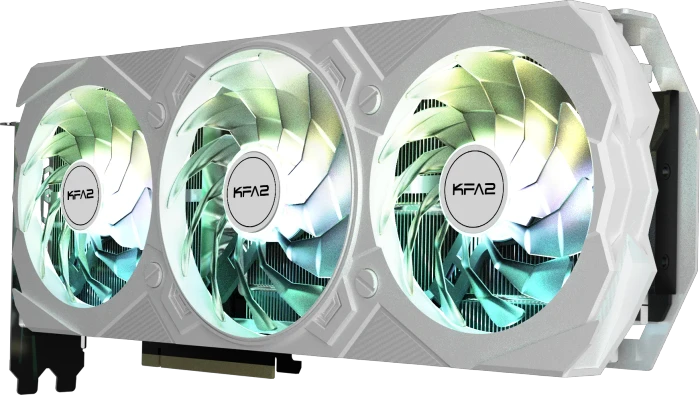

- 3x Axial-Lüfter (102mm + 2x 92mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 220W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse

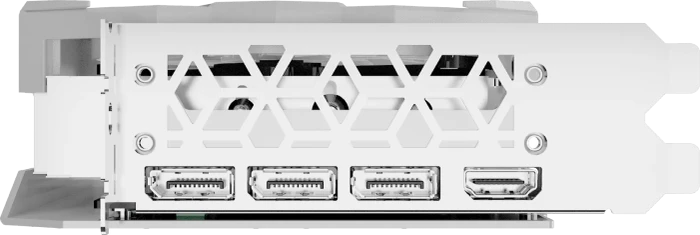

- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten

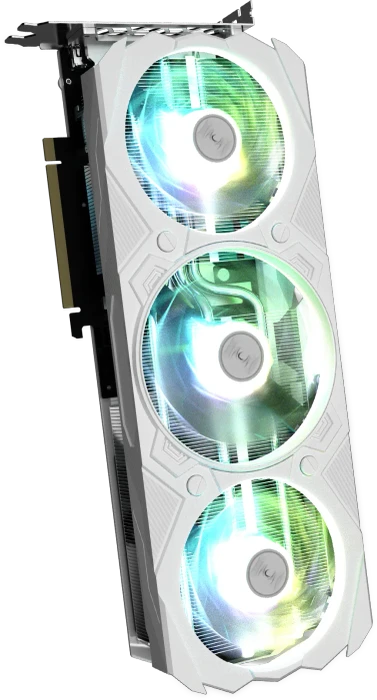

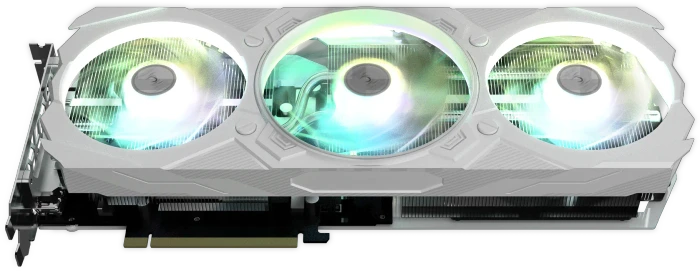

- Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), White Build-kompatibel (weiße Farbgebung)
- Gesamthöhe
- Triple Slot (2.5 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00MSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9Sapphire Pulse Radeon RX 9070 XT, 16GB GDDR6, 2x HDMI, 2x DP, lite retail
11348-03-20G- Modell
- NVIDIA GeForce RTX 4070 SUPER
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz (Standard-Profil), 1920MHz (OC-Profil)
- Takt Boost
- 2565MHz (Standard-Profil), 2580MHz (OC-Profil)
- Übertaktung
- +105MHz Boost (OC-Profil), +90MHz Boost (Standard-Profil)
- Kühlung
- 3x Axial-Lüfter (102mm + 2x 92mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 220W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), White Build-kompatibel (weiße Farbgebung)
- Gesamthöhe
- Triple Slot (2.5 Slots)
- Abmessungen
- 336x146x48mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 284 TOPS (FP8), 142 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 568 TOPS (FP8), 284 TOPS (FP16)
- GPU-Rechenleistung
- 37.27 TFLOPS (FP16), 37.27 TFLOPS (FP32), 0.58 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD104 (AD104-350-A1)
- Chip-Ausbau
- 93.3% aktive Recheneinheiten (56/60 SM)
- Chip-Konfiguration
- 56SM (7168SP/224TMU/80ROP), 56 RT-Cores, 224 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 294mm², monolithisch, 35.8 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 142 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4070 Ti
GeForce RTX 4070 SUPER
GeForce RTX 4070
RTX 4000 SFF Ada
RTX 4000 Ada
L4 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 17.01.2024, UVP: 599 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 SUPER - 12GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 10.01.2024, 16:02
2 Bewertungen für KFA2 GeForce RTX 4070 SUPER EX Gamer White (1-Click OC), 12GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu KFA2 GeForce RTX 4070 SUPER EX Gamer White (1-Click OC), 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
allround-pc.com: KFA2 RTX 4070 Super & RTX 4080 Super im Test: Nicht alles super-duper?
Das SG-Modell der RTX 4080 Super ist zum Testzeitpunkt eines der teureren Custom-Modelle. Dafür erhält man eine einwandfreie Kühlleistung sowie mehrere RGB-Elemente und RGB-Zubehör für ein auffälliges Design.
-
techpowerup.com: Galax GeForce RTX 4070 Super EX Review (translate)

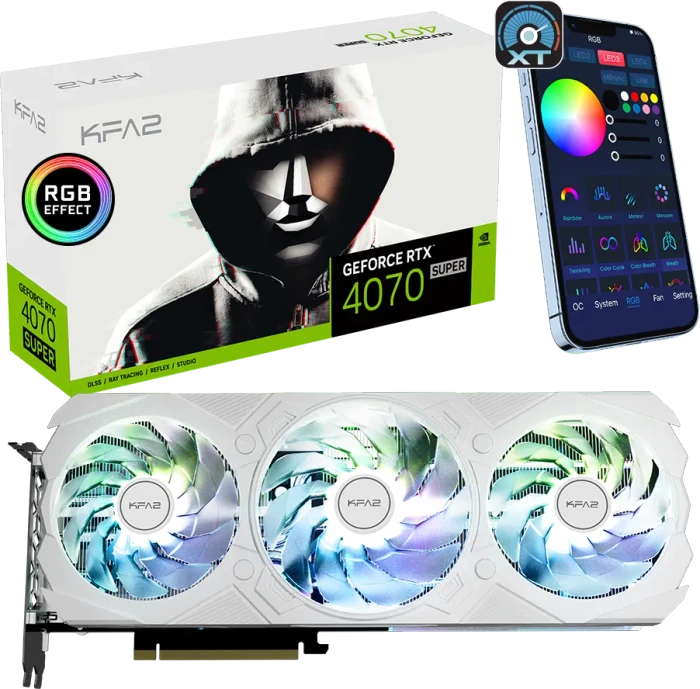

Galax GeForce RTX 4070 Super EX is an affordable yet premium-looking custom-design graphics card based on NVIDIA's recently announced performance segment GPU. This card is also available with an identical name and model identifier, but under the KFA2 brand, in some markets. The Galax RTX 4070 Super EX sports a premium appearance, with a triple-slot design, and cooler that looks like it's from a segment above. It uses an aluminium fin-stack heatsink with three heatpipes; and a trio of fans. The one in the middle is slightly larger 102 mm than the ones on the sides, at 92 mm, each. The three fans, along with a GeForce RTX logo on the topside of the cooler shroud, are RGB LED illuminated, and you can control it using the Galax Xtreme Tuner app. The card has its own RGB controller; but also puts out a 3-pin addressable RGB header, so you can sync the rest of your lighting to the card. The Galax EX comes with a handy factory overclock of 2565 MHz out of the box, compared to 2475 MHz reference. The card is priced at $615, an acceptable $15 premium over the NVIDIA baseline price.
