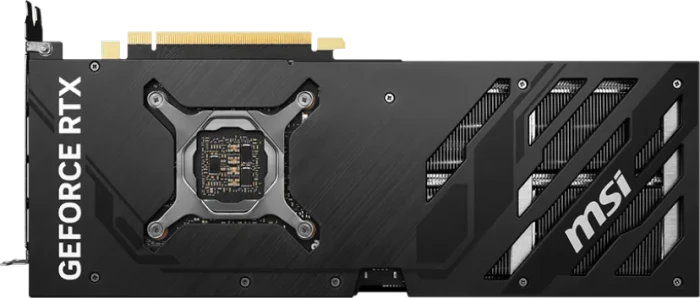

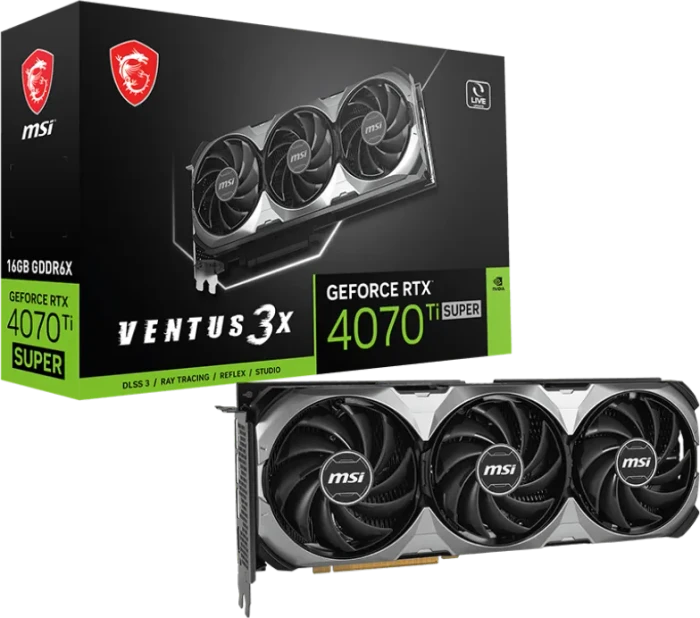

MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X, 16GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz (Standard-Profil)
- Takt Boost
- 2610MHz (Standard-Profil), 2625MHz (OC-Profil)
- Übertaktung
- +15MHz Boost (OC-Profil)
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA), max. 285W (MSI)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)

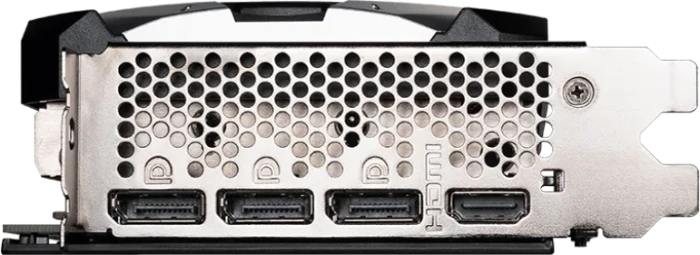

- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot (3.0 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00MSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9Sapphire Pulse Radeon RX 9070 XT, 16GB GDDR6, 2x HDMI, 2x DP, lite retail
11348-03-20G- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz (Standard-Profil)
- Takt Boost
- 2610MHz (Standard-Profil), 2625MHz (OC-Profil)
- Übertaktung
- +15MHz Boost (OC-Profil)
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA), max. 285W (MSI)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot (3.0 Slots)
- Abmessungen
- 308x120x52mm (LxBxH), Gewicht: 1107g
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 353 TOPS (FP8), 176.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 706 TOPS (FP8), 353 TOPS (FP16)
- GPU-Rechenleistung
- 43.93 TFLOPS (FP16), 43.93 TFLOPS (FP32), 0.69 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-275-A1)
- Chip-Ausbau
- 82.5% aktive Recheneinheiten (66/80 SM)
- Chip-Konfiguration
- 66SM (8448SP/264TMU/96ROP), 66 RT-Cores, 264 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 176.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 24.01.2024, UVP: 799 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 Ti SUPER - 16GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 12.01.2024, 16:22
-
Stand: 12.01.2024 .pdf [1.17 MB]
Bewertung für MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X, 16GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X, 16GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
tech-critter.com: Review – MSI GeForce RTX 4070 Ti SUPER 16G Ventus 3X (translate)
The RTX 4070 Ti SUPER is approximately 8-10% better than the RTX 4070 Ti in terms of gaming performance but still not as impressive compared to the 13-18% gain that we have observed on the RTX 4070 SUPER. The power efficiency is just as impressive as other RTX 40 series cards we’ve tested so far, as the power draw during gaming sessions hovers at around 230-260W while being able to deliver performance that easily exceeds the previous-gen flagship RTX 3090 while using 20% less power.
-
techpowerup.com: MSI GeForce RTX 4070 Ti Super Ventus 3X Review (translate)
MSI GeForce RTX 4070 Ti Super Ventus 3X is the company's base model for the RTX 4070 Ti Super, it still offers a triple-slot, triple-fan cooling solution. In terms of clock speeds you get the NVIDIA reference boost of 2610 MHz. Averaged over the 25 games in our test suite, at 1440p, we find the card only 2% faster than 4070 Ti non-Super, which is much less than expected. While the gains at 4K are slightly bigger with 5%, the performance is definitely lower than the other cards tested today, which reach around 6% and 9% respectively. Originally the card was even slower, showing virtually no performance gains over the RTX 4070 Ti. NVIDIA provided the MSI Ventus sample to us directly, to act as "reference baseline" solution in our reviews—due to the lack of a Founders Edition. With these performance numbers RTX 4070 Ti Super is a perfect match for 1440p with maximum settings, it's actually slightly overkill, which means that the card is a decent option for 4K monitors, too, or for 1440p at 120/144 Hz. While you won't be able to game at 4K60 at highest settings, just dropping them down a bit should help get those 60 frames and there's always the various upscaling technologies, especially if you plan on enabling ray tracing.
- Serienübergreifende Testberichte
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
