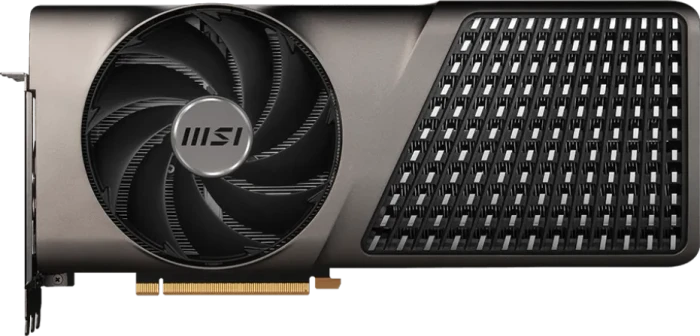

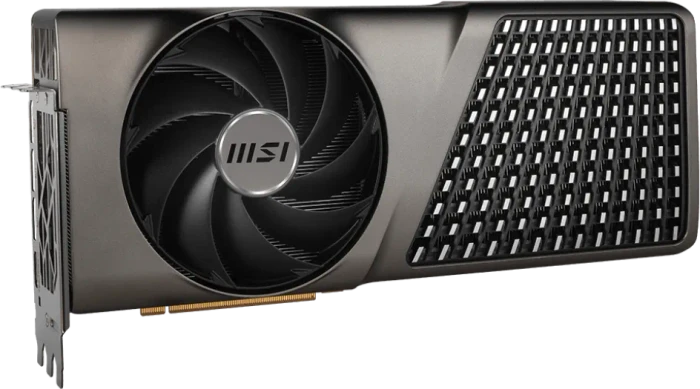

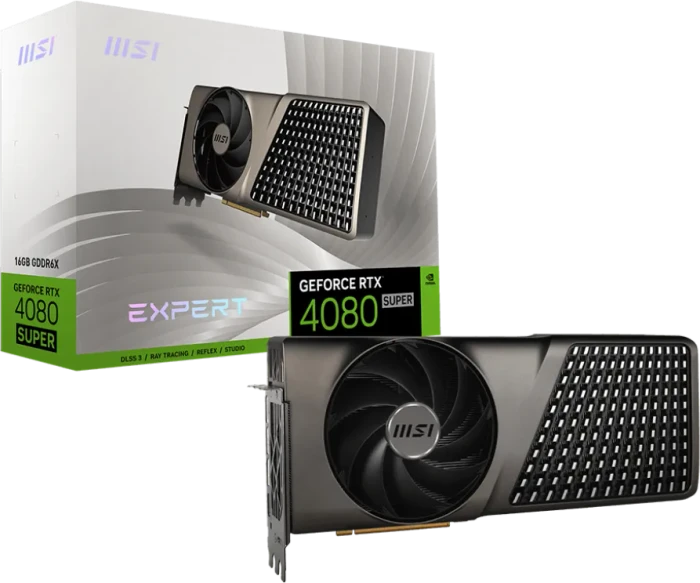

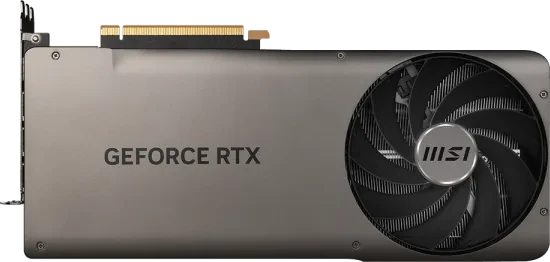

MSI GeForce RTX 4080 SUPER 16G Expert, 16GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4080 SUPER
- Speicher
- 16GB GDDR6X, 256bit, 23Gbps, 1438MHz, 736GB/s
- Takt Basis
- 2295MHz (Standard-Profil), 2295MHz (OC-Profil)
- Takt Boost
- 2610MHz (Standard-Profil), 2625MHz (OC-Profil)
- Übertaktung
- +75MHz Boost (OC-Profil), +60MHz Boost (Standard-Profil)
- Kühlung
- 2x Axial-Lüfter (120mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 320W (NVIDIA), max. 320W (MSI)
- Stromanschlüsse

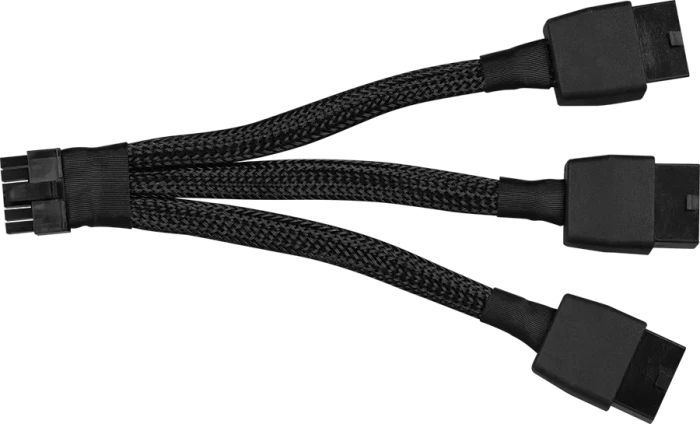

- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00GIGABYTE Radeon RX 9070 XT Gaming OC 16G, 16GB GDDR6, 2x HDMI, 2x DP
GV-R9070XTGAMING OC-16GDMSI GeForce RTX 5080 16G Ventus 3X OC, G5080-16V3C, 16GB GDDR7, HDMI, 3x DP
V531-095RASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00Sapphire Pulse Radeon RX 9060 XT, 16GB GDDR6, 2x HDMI, DP, lite retail
11350-03-20GASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS TUF Gaming GeForce RTX 5080 OC, TUF-RTX5080-O16G-GAMING, 16GB GDDR7, 2x HDMI, 3x DP
90YV0M30-M0NA00Sapphire Pulse Radeon RX 9070 XT, 16GB GDDR6, 2x HDMI, 2x DP, lite retail
11348-03-20G- Modell
- NVIDIA GeForce RTX 4080 SUPER
- Speicher
- 16GB GDDR6X, 256bit, 23Gbps, 1438MHz, 736GB/s
- Takt Basis
- 2295MHz (Standard-Profil), 2295MHz (OC-Profil)
- Takt Boost
- 2610MHz (Standard-Profil), 2625MHz (OC-Profil)
- Übertaktung
- +75MHz Boost (OC-Profil), +60MHz Boost (Standard-Profil)
- Kühlung
- 2x Axial-Lüfter (120mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 320W (NVIDIA), max. 320W (MSI)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot
- Abmessungen
- 312x141x61mm (LxBxH), Gewicht: 1909g
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 418 TOPS (FP8), 209 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 836 TOPS (FP8), 418 TOPS (FP16)
- GPU-Rechenleistung
- 53.25 TFLOPS (FP16), 53.25 TFLOPS (FP32), 0.83 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-400-A1)
- Chip-Ausbau
- Vollausbau (80/80 SM)
- Chip-Konfiguration
- 80SM (10240SP/320TMU/112ROP), 80 RT-Cores, 320 Tensor-Cores, 64MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 209 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 31.01.2024, UVP: 999 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4080 SUPER - 16GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 31.01.2024, 15:44
-
Stand: 31.01.2024 .pdf [1.33 MB]
Bewertung für MSI GeForce RTX 4080 SUPER 16G Expert, 16GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu MSI GeForce RTX 4080 SUPER 16G Expert, 16GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
thepcenthusiast.com: MSI GeForce RTX 4080 SUPER Expert Review (translate)
The GeForce RTX 4080 Super’s release is less exciting than the RTX 4070 Super. The RTX 4070 Super offered performance near an RTX 4070 Ti and, at the same time, kept the price of the RTX 4070. The RTX 4070 Ti Super was released at the same price as the RTX 4070 Ti. Although it offered increased VRAM and dual NVENC encoder, its performance is just around 5% faster than the outgoing RTX 4070 Ti. I guess the RTX 4080 Super is a bit better than the RTX 4070 Ti Super since its starting price is $200 less despite offering the same performance. I hope retailers will honor the starting price and that we will see many MSRP models on the release date.
-
techpowerup.com: MSI GeForce RTX 4080 Super Expert Review (translate)
The new MSI GeForce RTX 4080 Super Expert graphics card releasing today, introduces the company's latest attempt at an ultra-premium custom design tier. MSI is among the few NVIDIA board partners that's been making serious efforts to beat the NVIDIA Founders Edition in aesthetics and cooling performance. The new Expert brand sits alongside the company's SUPRIM X and SUPRIM Liquid tiers. It's also the first GeForce RTX product from the company to feature the MSI PRO logo that's usually found in notebooks, monitors, and pre-built desktops from the company targeted at workstation and creator PC market segments. So the MSI RTX 4080 Super Elite is meant for the high-end gaming PC crowd that does quite a bit of creator work on the side, paired with NVIDIA's Studio drivers. As for the GeForce RTX 4080 Super, it sits at the top of the Super series mid-lifecycle refresh of the RTX 40-series Ada. This refresh aims to being more performance at existing or lower price points. The RTX 4080 Super is recommended by NVIDIA for maxed out gaming at the 4K Ultra HD resolution, including with ray tracing. It is built on the same AD103 silicon as the original RTX 4080, but maxes it out, enabling all its available shaders. Perhaps the best aspect of the RTX 4080 Super isn't this increase in shaders, but a lowering in its MSRP to $1,000, from the $1,200 that the RTX 4080 launched at. This ensures that premium custom-design cards such as the MSI RTX 4080 Super Expert we're reviewing here, are priced similar to the original baseline price of the RTX 4080.
