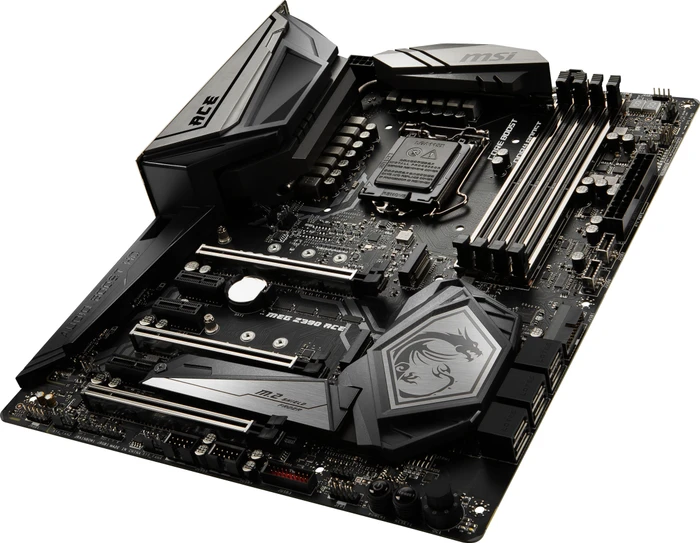

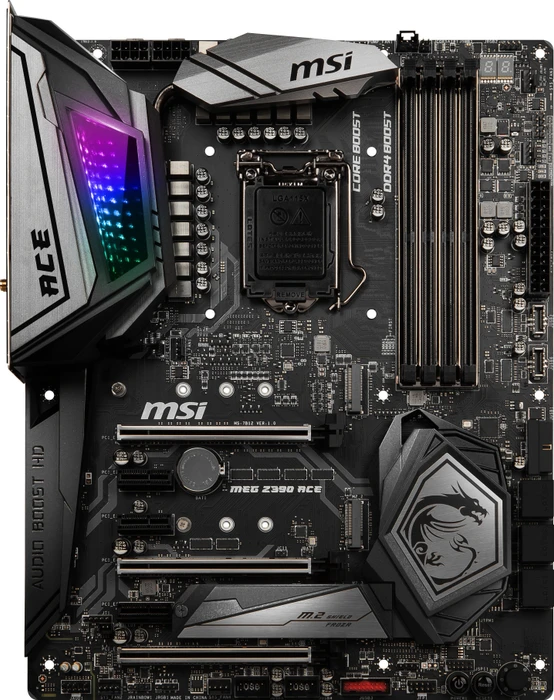

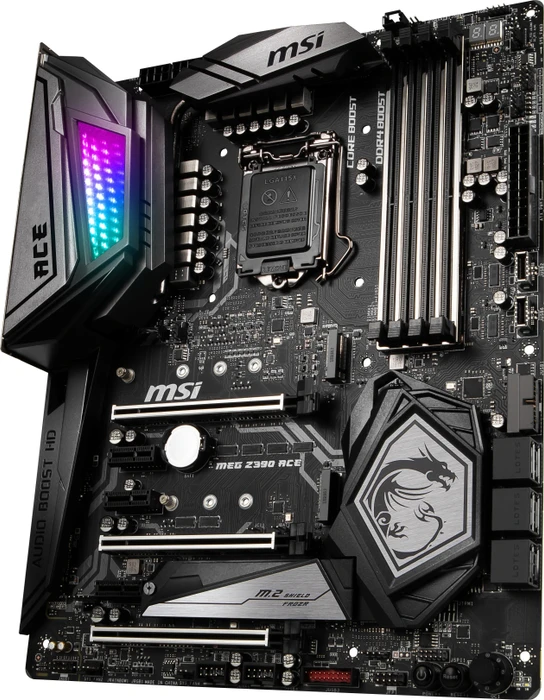

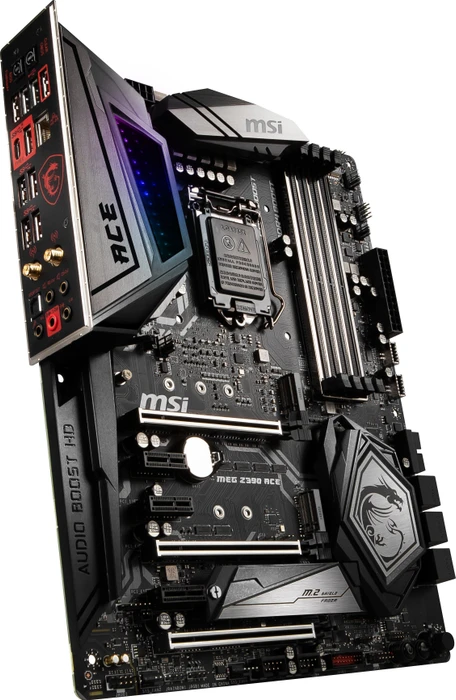

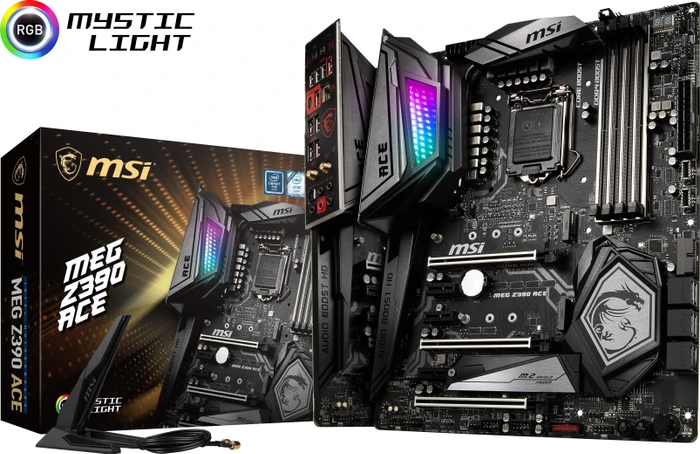

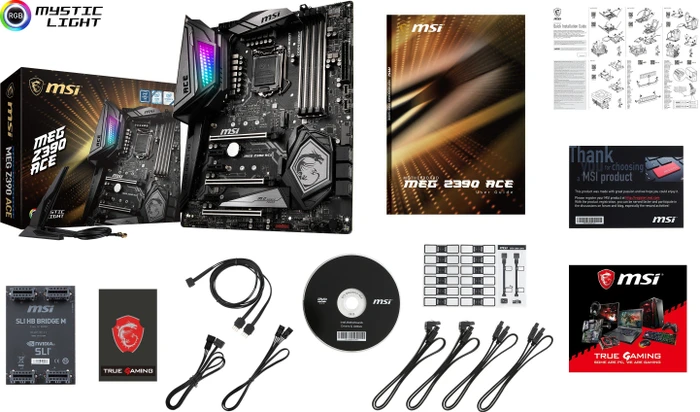

MSI MEG Z390 Ace (Intel 1151 v2)
- Formfaktor
- ATX
- Sockel
- Intel 1151 v2 (LGA1151)
- Chipsatz
- Intel Z390
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-4500 OC
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x USB-C 3.1 (10Gb/s, PCH), 5x USB-A 3.1 (10Gb/s, PCH), 4x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (1000Base-T, Intel Killer E2500), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 3x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z390)
- Anschlüsse intern - USB
- 2x USB 3.1 Header Key-A (10Gb/s, 2x USB-C, Z390), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in Mainboards)
GIGABYTE B550M Gaming X WIFI6 (AMD AM4)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZASUS ROG Strix B850-F Gaming WIFI (AMD AM5)
90MB1J70-M0EAY0ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0GIGABYTE B650 Gaming X AX V2 (AMD AM5)
GIGABYTE B850 Gaming WIFI6 (AMD AM5)
- Formfaktor
- ATX
- Sockel
- Intel 1151 v2 (LGA1151)
- Chipsatz
- Intel Z390
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-4500 OC
- ECC-Unterstützung
- nein

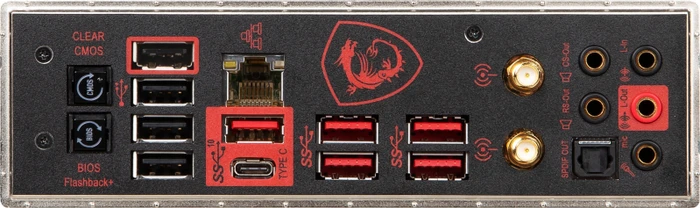

- Anschlüsse extern
- 1x USB-C 3.1 (10Gb/s, PCH), 5x USB-A 3.1 (10Gb/s, PCH), 4x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (1000Base-T, Intel Killer E2500), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 3x PCIe 3.0 x16 (1x x16, 1x x8, 1x x4), 3x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z390)
- Anschlüsse intern - USB
- 2x USB 3.1 Header Key-A (10Gb/s, 2x USB-C, Z390), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
- Anschlüsse intern - sonstige
- N/A
- Anschlüsse intern - Kühlung
- 1x CPU-Lüfter 4-Pin PWM, 5x Lüfter 4-Pin PWM, 1x Pumpe 4-Pin PWM
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung
- 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A), 1x 3-Pin Corsair RGB (+5V/DATA/GND)
- Buttons/Switches
- Clear-CMOS-Button (extern), USB BIOS Flashback (extern), OC-Button (intern), Power-Button (intern), Reset-Button (intern)
- Audio
- Realtek ALC1220
- Netzwerk
- Intel Killer E2500 (1Gb/s)
- Grafik
- N/A
- RAID-Level
- 0/1/5/10 (Z390)
- Wireless
- Wi-Fi 5 (WLAN 802.11a/b/g/n/ac, 2x2, Intel 9560), Bluetooth 5.1
- Beleuchtung
- RGB, 1 Zone (I/O-Abdeckung)
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (Segmentanzeige), I/O-Blende integriert, 1x M.2-Passivkühler, unterstützt NVIDIA 2-Way-SLI (x8/x8)/AMD 3-Way-CrossFireX (x8/x8, x8/x4/x4)
- Garantie
- 3 Jahre (Info)
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 05.10.2018, 10:13
-
Stand: 09.10.2018 .pdf [1.48 MB]
-
Stand: 09.10.2018 .pdf [15.28 MB]
-
de.msi.com: TPM 2.0 auf MSI Motherboards aktivieren
-
de.msi.com: Garantieservice
-
igorslab.de: Wer es gern bunt treibt: der ultimative RGB-Guide für alle, die nach einer Erleuchtung suchen
-
computerbase.de: RGB-LED-Plattformen im Test: Aura, RGB Fusion, Mystic Light und iCUE im Vergleich
-
msi.com: MSI Warranty Policy
1 Bewertung für MSI MEG Z390 Ace (Intel 1151 v2)
Teilen Sie uns Ihre Meinung zu MSI MEG Z390 Ace (Intel 1151 v2) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
-
allround-pc.com: MSI MEG Z390 ACE Test
MSI schickt mit dem MEG Z390 ACE ein Mainboard ins Rennen, das auf Intels neuem Z390-Chipsatz basiert. Wir haben geprüft, welche Funktionen das Mainboard bietet und es einem Leistungstest unterzogen.
-
-
-
bit-tech.net: MSI MEG Z390 Ace Review (translate)
We can't say definitively if this board is exceptional yet having not tested others, but with Z370 and Z390 being so similar and CPUs being backwards compatible, there's clearly a strong case for saving some cash and opting for a previous-generation motherboard - nearly £300 is a lot to pay for a mainstream motherboard, even if the Core i9-9900K is stepping on HEDT CPU shoes. However, for premium features such as USB 3.1 Gen 2, overclocking tools, M.2 heatsinks, RGB lighting and extensive power delivery, MSI doesn't have any options in the price range with Z370 instead leaping from the likes of the much cheaper Z370 GAMING M5 up to the hugely expensive Godlike Gaming. The MEG Z390 Ace, despite its price, actually has the Asus Maximus XI Hero in its sights with the latter costing a similar and sizeable £270. All we can say for now is that the MEG Z390 Ace is hugely impressive and the other manufacturers will have to pack a mighty sub-£300 punch in terms of features and aesthetics to beat it.
-
-
