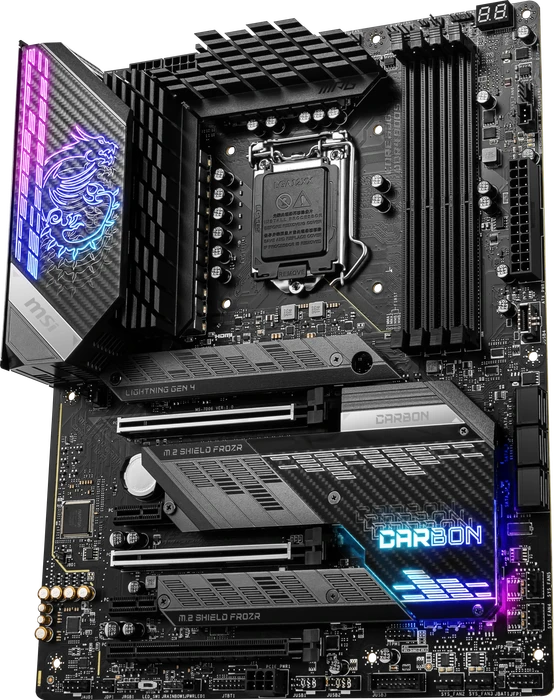

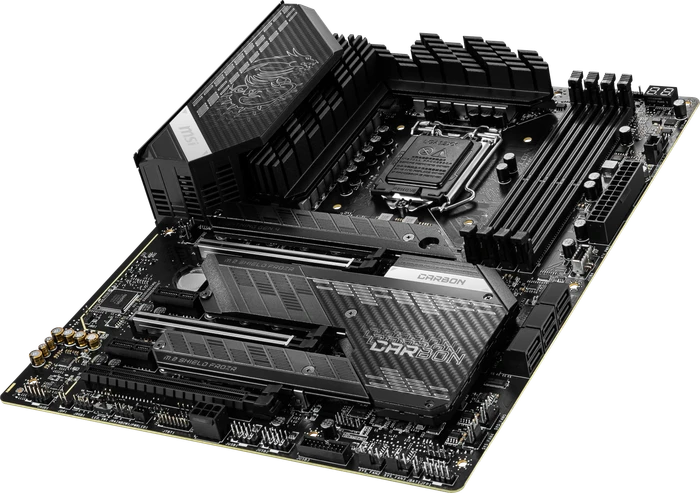

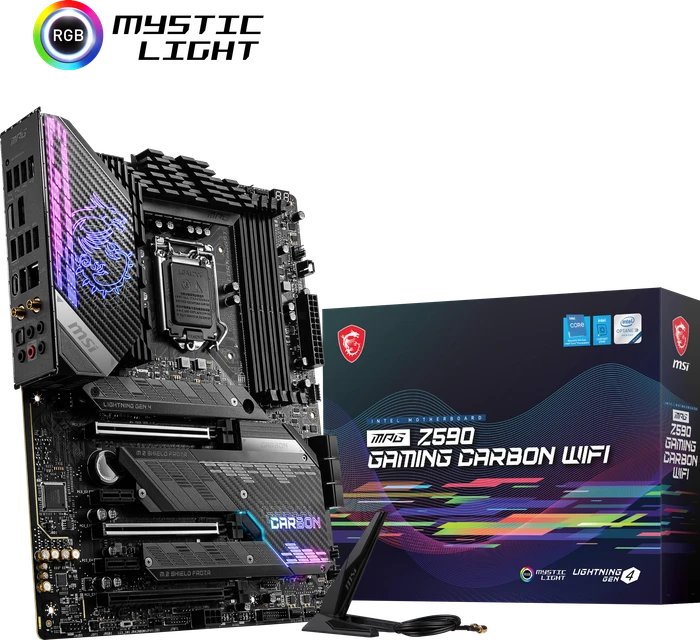

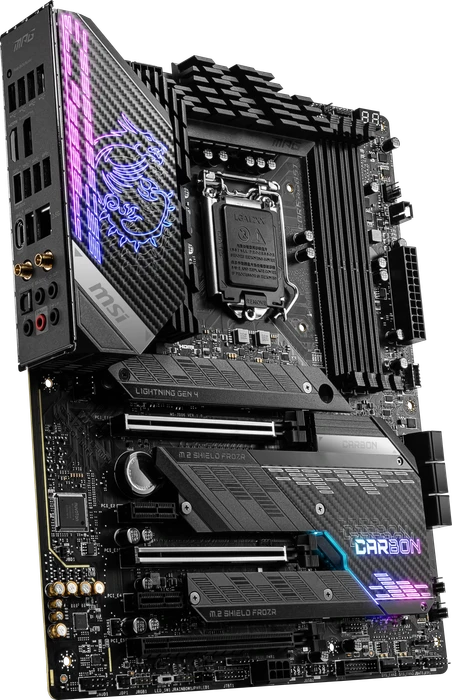

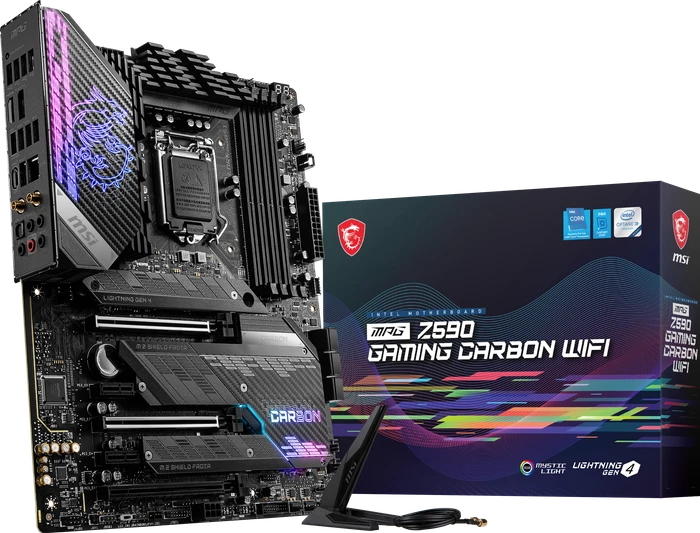

MSI MPG Z590 Gaming Carbon WIFI (Intel 1200)
- Formfaktor
- ATX
- Sockel
- Intel 1200 (LGA1200)
- Chipsatz
- Intel Z590
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-5333 OC
- RAM-Profile
- Intel XMP 2.0
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x DisplayPort 1.4a (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 3x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s, PCH), 1x Toslink S/PDIF Out (Realtek ALC4080), 5x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 2x PCIe 4.0 x16 (1x x16, 1x x8), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z590)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in Mainboards)
GIGABYTE B550M Gaming X WIFI6 (AMD AM4)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0GIGABYTE B650 Eagle AX (AMD AM5)
ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASUS ProArt X870E-Creator WiFi (AMD AM5)
90MB1IG0-M0EAY0ASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZGIGABYTE B850 Gaming WIFI6 (AMD AM5)
- Formfaktor
- ATX
- Sockel
- Intel 1200 (LGA1200)
- Chipsatz
- Intel Z590
- CPU-Kompatibilität
- CPU-Kompatibilitätsliste
- RAM
- 4x DDR4 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- max. DDR4-5333 OC
- RAM-Profile
- Intel XMP 2.0
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x DisplayPort 1.4a (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 3x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s, PCH), 1x Toslink S/PDIF Out (Realtek ALC4080), 5x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 2x PCIe 4.0 x16 (1x x16, 1x x8), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z590)
- Anschlüsse intern - USB
- 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C, Z590), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A, Z590)
- Anschlüsse intern - sonstige
- 1x TPM Header, 1x Thunderbolt Header 15-Pin (MSI), 1x Chassis Intrusion Header, 1x MSI Tuning Controller Header Header (MSI JDASH)
- Anschlüsse intern - Kühlung
- 1x CPU-Lüfter 4-Pin PWM, 6x Lüfter 4-Pin PWM, 1x Pumpe 4-Pin PWM
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
- Anschlüsse intern - Beleuchtung
- 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A), 1x 3-Pin Corsair RGB (+5V/DATA/GND)
- Buttons/Switches
- USB BIOS Flashback (extern), LED-Switch (intern)
- Audio
- Realtek ALC4080
- Netzwerk
- Intel I225-V (2.5Gb/s)
- Grafik
- iGPU
- RAID-Level
- 0/1/5/10 (Z590)
- Wireless
- Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX210), Bluetooth 5.3
- VRM-Design
- 16+1, 17 virtuelle CPU-Phasen (2x8+1), 9 reale CPU-Phasen (8+1)
- MOSFETs VCORE
- 16x 75A RAA220075 (SPS)
- MOSFETs SOC/VCCGT
- 1x 75A RAA220075 (SPS)
- PWM-Controller
- ISL69269 (max. 12 Phasen)
- Beleuchtung
- RGB, 2 Zonen (Chipsatz-Kühler, I/O-Abdeckung)
- BIOS
- 1x 32MB (256Mb)
- Segment
- Mainstream
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), Diagnostic LED (Segmentanzeige), I/O-Blende integriert, 3x M.2-Passivkühler, unterstützt AMD 2-Way-CrossFireX (x16/x4)
- Garantie
- 3 Jahre (Info)
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 04.02.2021, 22:01
-
Stand: 04.02.2021 .pdf [1000.98 KB]
-
Stand: 04.02.2021 .pdf [5.19 MB]
-
Stand: 04.02.2021 .pdf [11.77 MB]
2 Bewertungen für MSI MPG Z590 Gaming Carbon WIFI (Intel 1200)
Teilen Sie uns Ihre Meinung zu MSI MPG Z590 Gaming Carbon WIFI (Intel 1200) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
hardwareluxx.de: Verbraucht zu viel: MSI MPG Z590 GAMING CARBON WIFI im Kurztest
In diesem Kurztest wollen wir uns MSIs MPG Z590 GAMING CARBON WIFI zu Gemüte führen, das für einige Umrüstwillige eine interessante Platine zu sein scheint. Doch eigentlich ist das Mainboard für uns kein Unbekannter mehr, denn die Basis des MSI MPG Z590 GAMING CARBON WIFI hatten wir bereits im ausführlichen Test.
-
overclock3d.net: MSI Z590 Gaming Carbon WiFi Review (translate)
Lastly the VRM temperatures, whilst the warmest of the six motherboards we're testing today, are still well inside what we'd be happy living with, and that is with a Intel Core i9-11900K doing its best to pretend to be a George Foreman Grill. With a Core i5 or Core i7 11th Gen CPU in it those VRM temperatures will be even lower. The MSI Z590 Gaming Carbon WiFi might not have some of those extra aesthetics that put it into the next class, but if what you want from your motherboard is plenty of connectivity, good performance, inoffensive looks and a nice price then the Carbon ticks every box.
-
eteknix.com: MSI MPG Z590 Gaming Carbon WiFi Motherboard Review (translate)
The MPG Z590 Gaming Carbon WIFI is a good looking board with plenty of features and options for both novice and experienced users. It performs as good as it looks and being made by MSI, it will also offer great reliability. It has almost everything one could want from the Z590 chipset and when pairing it with an 11th Gen CPU, it goes just that extra bit further in offering even more performance for your money.
