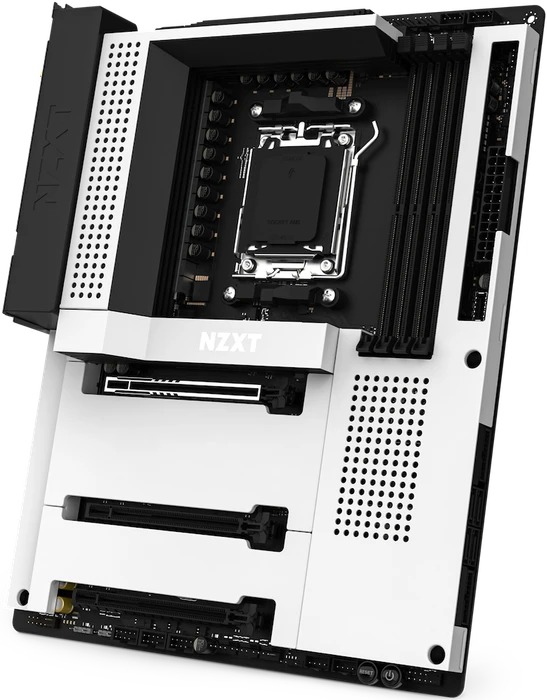

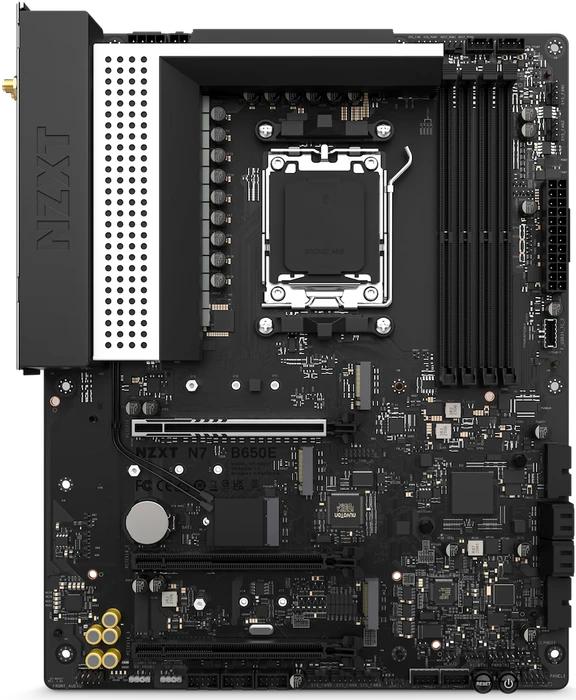

NZXT N7 B650E White (AMD AM5)
- Formfaktor
- ATX
- Sockel
- AMD AM5
- Chipsatz
- AMD B650E
- CPU-Kompatibilität
- Ryzen 7000, Ryzen 8000G, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- DDR5-5200 (Ryzen 7000/Ryzen 8000G), max. DDR5-6000 OC
- ECC-Unterstützung
- nein
- Anschlüsse extern

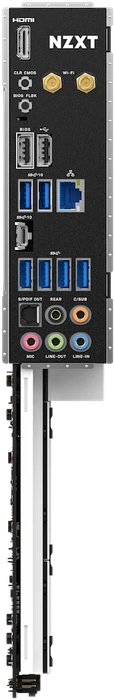

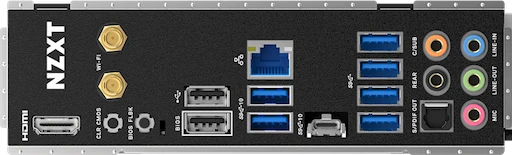

- 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x2)
- M.2-Slots
- 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x2, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (B650E)
- Anschlüsse intern - USB
- 1x USB 3.2 Header Key-A (20Gb/s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 3x USB 2.0 Header 9-Pin (480Mb/s, 6x USB-A)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in Mainboards)
GIGABYTE B550M Gaming X WIFI6 (AMD AM4)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZASUS ROG Strix B850-F Gaming WIFI (AMD AM5)
90MB1J70-M0EAY0ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0GIGABYTE B650 Gaming X AX V2 (AMD AM5)
GIGABYTE B850 Gaming WIFI6 (AMD AM5)
- Formfaktor
- ATX
- Sockel
- AMD AM5
- Chipsatz
- AMD B650E
- CPU-Kompatibilität
- Ryzen 7000, Ryzen 8000G, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC
- RAM-Datenrate
- DDR5-5200 (Ryzen 7000/Ryzen 8000G), max. DDR5-6000 OC
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out (Realtek ALC1220), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x2)
- M.2-Slots
- 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x2, 2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (B650E)
- Anschlüsse intern - USB
- 1x USB 3.2 Header Key-A (20Gb/s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A), 3x USB 2.0 Header 9-Pin (480Mb/s, 6x USB-A)
- Anschlüsse intern - sonstige
- N/A
- Anschlüsse intern - Kühlung
- 1x CPU-Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 5x Lüfter 4-Pin PWM
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 1x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung
- 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A), 4x 4-Pin NZXT HUE+ (+5V/DATA/GND/DETECT)
- Buttons/Switches
- Clear-CMOS-Button (extern), USB BIOS Flashback (extern), Power-Button (intern), Reset-Button (intern)
- Audio
- Realtek ALC1220
- Netzwerk
- Realtek RTL8125BG (2.5Gb/s)
- Grafik
- iGPU
- RAID-Level
- 0/1/10 (B650E)
- Wireless
- Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, MediaTek), Bluetooth 5.2
- VRM-Design
- 16+2, 18 virtuelle CPU-Phasen (2x8+2), 10 reale CPU-Phasen (8+2)
- MOSFETs VCORE
- 16x 90A ISL99390 (SPS)
- MOSFETs SOC/VCCGT
- 2x 60A ISL99360 (SPS)
- PWM-Controller
- RAA229620 (max. 12 Phasen)
- Beleuchtung
- N/A
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/O-Blende integriert, Backplate, White Build-kompatibel (PCB primär schwarz)
- Garantie
- 3 Jahre
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 05.10.2022, 17:27
-
Stand: 10.01.2023 .pdf [6.31 MB]
7 Bewertungen für NZXT N7 B650E White (AMD AM5)
Teilen Sie uns Ihre Meinung zu NZXT N7 B650E White (AMD AM5) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
eteknix.com: NZXT N7 B650E Motherboard Review &2d; eTeknix (translate)
NZXT has nailed the design here, with the N7 still being one of the best-looking motherboard series on the market today. Sure, style is subjective, but when it comes to a clean aesthetic, it’s very much on point. The design also closely matches the designs NZXT use on their current range of coolers, cases, monitors and other peripherals, so NZXT fans can get a unified design throughout their entire range of products. The performance was pretty excellent too, and while the memory performance has room for improvement, this didn’t seem to impact the overall CPU performance at all, with some of the fastest rendering times and synthetic benchmarks we’ve had yet, and while gaming performance wasn’t the fastest, it was competitive with similarly priced solutions, and it makes this a great motherboard for gamers and content creators alike, while also holding up well for daily system tasks. Connectivity is very good too, with both WiFi 6E and 2.5 GbE LAN giving you all the performance you need for gigabit or greater fibre connections, and fast home networking options too. There are three M.2 storage slots, including the latest PCIe Gen 5 for ultra-fast storage solutions. There are plenty of USB ports too, with up to six USB 2.0 ports, 4 USB 3.2 Gen 1 posts, and Gen 2×2 Type-C front panel support. There are five audio jacks, optical out, and even a handy BIOS flashback button.
