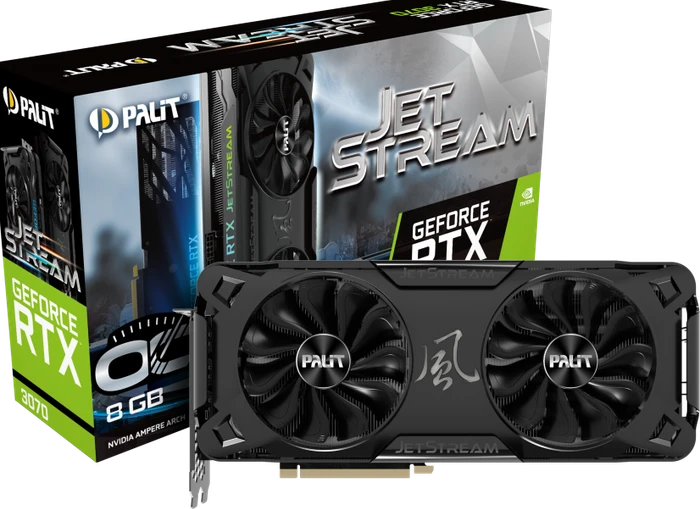

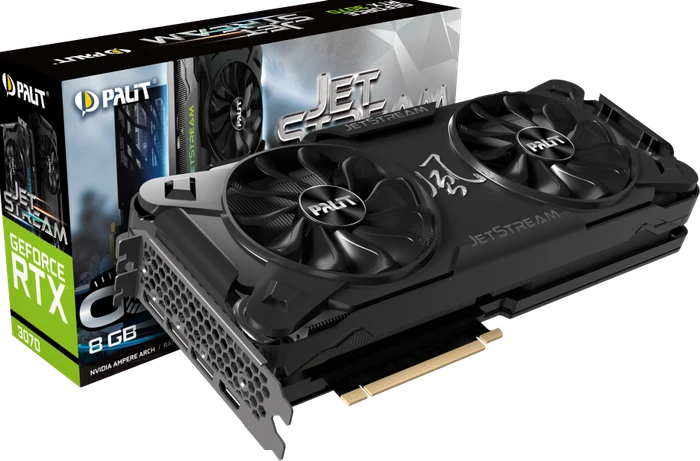

Palit GeForce RTX 3070 JetStream OC V1 (LHR), 8GB GDDR6, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 3070
- Speicher
- 8GB GDDR6, 256bit, 14Gbps, 1750MHz, 448GB/s
- Takt Basis
- 1500MHz
- Takt Boost
- 1815MHz
- Übertaktung
- +90MHz Boost
- Kühlung
- 2x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 220W (NVIDIA), max. 270W (Palit)
- Stromanschlüsse
- 2x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- mit LHR (Lite Hash Rate), Beleuchtung (RGB), Backplate, AI-Beschleunigung
- Gesamthöhe
- Triple Slot (2.7 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-6)
Palit GeForce RTX 3070 GamingPro V1 (LHR), 8GB GDDR6, HDMI, 3x DP
NE63070019P2-1041APalit GeForce RTX 3070 JetStream V1 (LHR), 8GB GDDR6, HDMI, 3x DP
NE63070019P2-1040JPalit GeForce RTX 3070 GameRock OC V1 (LHR), 8GB GDDR6, HDMI, 3x DP
NE63070H19P2-1040GPalit GeForce RTX 3070 GameRock V1 (LHR), 8GB GDDR6, HDMI, 3x DP
NE63070019P2-1040GPalit GeForce RTX 3070 GamingPro OC V1 (LHR), 8GB GDDR6, HDMI, 3x DP
NE63070S19P2-1041AÄhnliche Produkte (Top-10 in PCIe)
ASUS Prime Radeon RX 9070 XT OC, PRIME-RX9070XT-O16G, 16GB GDDR6, HDMI, 3x DP
90YV0L71-M0NA00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00ASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00ASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RMSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9Sapphire Pulse Radeon RX 9070 XT, 16GB GDDR6, 2x HDMI, 2x DP, lite retail
11348-03-20G- Modell
- NVIDIA GeForce RTX 3070
- Speicher
- 8GB GDDR6, 256bit, 14Gbps, 1750MHz, 448GB/s
- Takt Basis
- 1500MHz
- Takt Boost
- 1815MHz
- Übertaktung
- +90MHz Boost
- Kühlung
- 2x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 220W (NVIDIA), max. 270W (Palit)
- Stromanschlüsse
- 2x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- mit LHR (Lite Hash Rate), Beleuchtung (RGB), Backplate, AI-Beschleunigung
- Gesamthöhe
- Triple Slot (2.7 Slots)
- Abmessungen
- 304x136x60mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 163 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 326 TOPS (FP16)
- GPU-Rechenleistung
- 21.20 TFLOPS (FP16), 21.20 TFLOPS (FP32), 0.33 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ampere (ab 2020/Q3)
- Chip-Bezeichnung
- GA104 (GA104-300-A1)
- Chip-Ausbau
- 95.8% aktive Recheneinheiten (46/48 SM)
- Chip-Konfiguration
- 46SM (5888SP/184TMU/96ROP), 46 RT-Cores, 184 Tensor-Cores, 4MiB L2-Cache
- Chip-Fertigung
- Samsung 8nm (8nm)
- Chip-Größe
- 392mm², monolithisch, 17.4 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen, 163 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 3070 Ti
GeForce RTX 3070
GeForce RTX 3060 Ti
GeForce RTX 3060
RTX A4000 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.6 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (7th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 01.09.2020, Verkaufsstart: 29.10.2020, UVP: 499 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 3070 - 8GB GDDR6 - Desktop (LHR)
- Letztes Preisupdate
- -
- Gelistet seit
- 09.11.2020, 15:45
-
3dcenter.org: Launch-Analyse nVidia GeForce RTX 3070
-
pcgameshardware.de: Geforce RTX 3070 8 GB im Test: Spezial-Benchmarks visualisieren Speichermangel
-
computerbase.de: Nvidia Ampere RTX-3000-Technik im Detail
-
nvidia.com: GeForce RTX 3070 Family
-
techpowerup.com: NVIDIA GeForce Ampere Architecture, Board Design, Gaming Tech & Software
Bewertung für Palit GeForce RTX 3070 JetStream OC V1 (LHR), 8GB GDDR6, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu Palit GeForce RTX 3070 JetStream OC V1 (LHR), 8GB GDDR6, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
techpowerup.com: Palit GeForce RTX 3070 JetStream OC Review (translate)
NVIDIA released the GeForce RTX 3070 just six weeks ago, and today, we're reviewing the Palit RTX 3070 JetStream OC. I had the review mostly finished, but couldn't get the last bits done because of the RX 6800 XT and RTX 3060 Ti launches. Out of the box, Palit has overclocked their RX 3070 JetStream OC to a rated boost clock of 1815 MHz, which is a 90 MHz increase over the Founders Edition. This turns into a real-life performance gain of 2%—not a whole lot, but other custom designs are similar. On average, at 1440p, we found the JetStream OC to be 2% faster than the RTX 2080 Ti, 15% ahead of the RTX 3060 Ti, and 53% faster than the RTX 2070, which is pretty nice. The RTX 3080 is 21% faster, at 30% higher pricing. AMD's Radeon RX 6800 is only 4% faster than the Palit JetStream, at higher MSRP.
-
hexus.net: Review: Palit GeForce RTX 3070 JetStream OC (translate)
Palit's dual-fan interpretation of RTX 3070 isn't perfect, yet it delivers on the performance front and right now the manufacturer needs to do only one thing to guarantee sales: get it on shelves.
-
guru3d.com: Palit GeForce RTX 3070 Jetstream OC review (translate)
Nice job Palit, we like it. Where the 3080 and 3090 mostly sit at a price level that many can't or are willing to afford, the sub 500 US price bracket we feel is where it begins (but still a lot of money). Overall the RTX 3070 series cannibalizes the GeForce RTX 2080 Ti domain and territory. So from that perspective, you quite honestly just cannot go wrong here. The predicament at launch as said will be actual availability. And if you do not buy through Nvidia or an NVIDIA assigned e-tailer, the prices will go up due to shortages. Is the price higher than say 550 USD? Then you as a consumer should absolutely refuse that, seriously don't buy at prices over 500~500 USD, WAIT until there is volume availability as retailers and etailers will otherwise rip that wallet of your empty. That said and done, there's little to report otherwise that is negative about the graphics card, super performance combined with fitting cooling and acoustics is what you'll get. And next to that, it's just a nice looking graphics card, isn't it?. Now we can argue about the nature and choice of an 8GB GDDR6 framebuffer, but in most use cases it's enough and we understand the choice made here, NVIDIA needs to keep that bill of materials healthy, as otherwise, this 499 USD card would have easily been 650 USD based on that 16GB decision. With future games in mind, this will turn out to become a WQHD (2560x1440) resolution card, and with current games, you can quite easily play Ultra HD games, in that domain, it shines whether that is using shading (regular rendered games) or when using hybrid ray-tracing + DLSS as that combo will offer a very decent performance. Palit did it correctly, you could perhaps argue the need for triple-fan cooling over dual-fan, but as you have been able to see the temperatures are under control and the silent mode quite silent. Of course people like 60 Degrees over 70 Defrees C in temperature, but for the GPU that doesn't really matter, it's just that we all consider that cooler = better. Palit ticks the right boxes with the Jetstream model. I mean 37 or 40 DBA depending on dual BIOS choice, then the nice looks as well as a product that already has been clocked at a boost frequency of 1815 MHz for you. You really cannot complain there. The performance you gain from any 3070 of course also is nice, for 500 bucks you sit at that RTX 2080 TI performance level, and that is not a bad deal. Overall you'll run 3 to 4% faster than reference and when tweaked you can further extend that. This is something we definitely can recommend (if priced right and if available of course).
