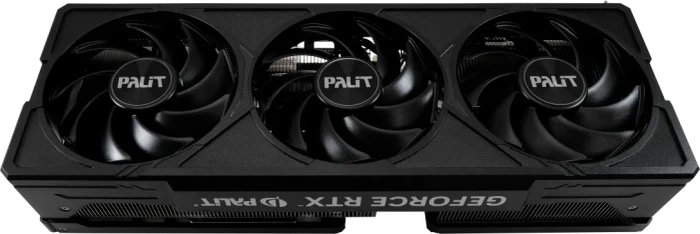

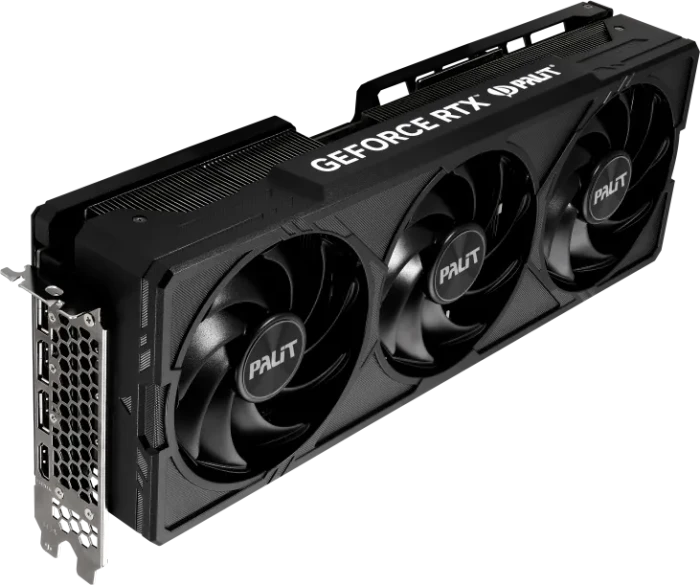

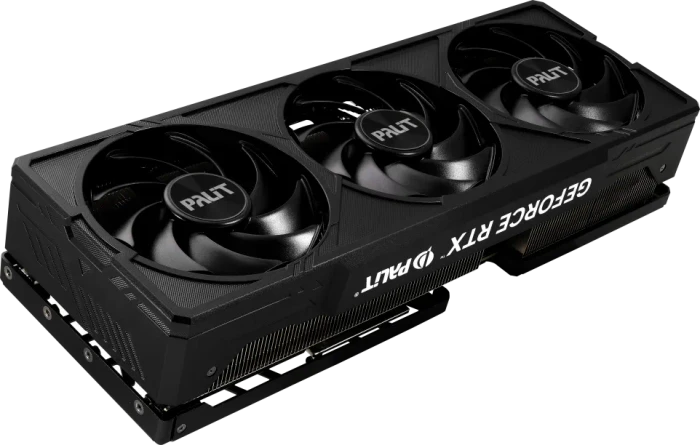

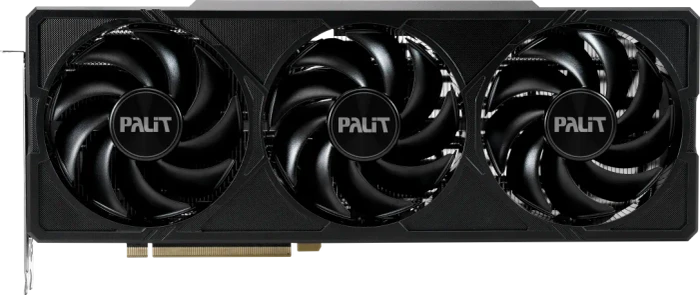

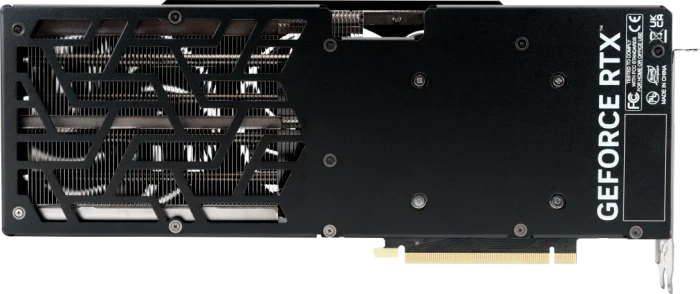

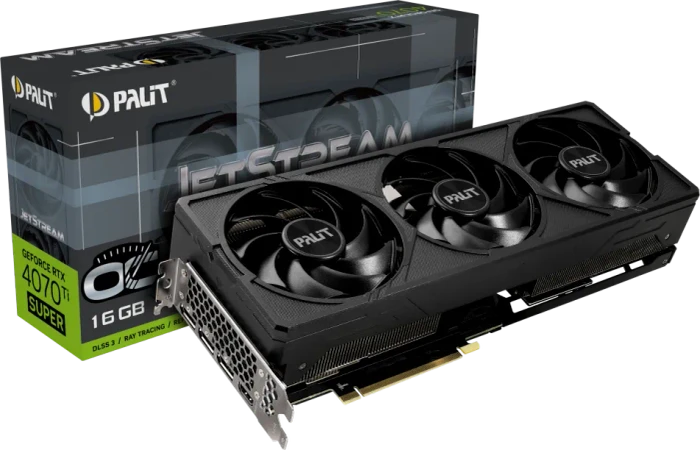

Palit GeForce RTX 4070 Ti SUPER JetStream OC, 16GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz
- Takt Boost
- 2640MHz
- Übertaktung
- +30MHz Boost
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA), max. 285W (Palit)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)

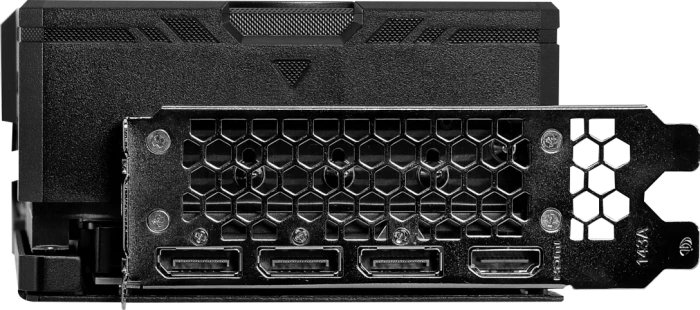

- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung
- Gesamthöhe
- Quad Slot (3.1 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00ASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RGIGABYTE GeForce RTX 5080 Windforce OC SFF 16G, 16GB GDDR7, HDMI, 3x DP
GV-N5080WF3OC-16GDXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz
- Takt Boost
- 2640MHz
- Übertaktung
- +30MHz Boost
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA), max. 285W (Palit)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung
- Gesamthöhe
- Quad Slot (3.1 Slots)
- Abmessungen
- 328.9x130.5x63.5mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 353 TOPS (FP8), 176.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 706 TOPS (FP8), 353 TOPS (FP16)
- GPU-Rechenleistung
- 43.93 TFLOPS (FP16), 43.93 TFLOPS (FP32), 0.69 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-275-A1)
- Chip-Ausbau
- 82.5% aktive Recheneinheiten (66/80 SM)
- Chip-Konfiguration
- 66SM (8448SP/264TMU/96ROP), 66 RT-Cores, 264 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 176.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 24.01.2024, UVP: 799 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 Ti SUPER - 16GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 15.01.2024, 14:23
3 Bewertungen für Palit GeForce RTX 4070 Ti SUPER JetStream OC, 16GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu Palit GeForce RTX 4070 Ti SUPER JetStream OC, 16GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
techpowerup.com: Palit GeForce RTX 4070 Ti Super Jetstream OC Review 0 Palit GeForce RTX 4070 Ti Super Jetstream OC Review (translate)
Palit's RTX 4070 Ti Super JetStream OC is priced at NVIDIA MSRP of $800, yet it still comes with a small factory overclock of 30 MHz or 1.1%—nothing worth mentioning, and no way you'd ever notice it subjectively. Averaged over the 25 games in our test suite, at 1440p, we find the card only 6% faster than RTX 4070 Ti non-Super, which is much less than expected. At 4K, the gains are slightly bigger with 9%, but it's definitely not the 15%+ jump that we got with the RTX 4070 Super. Still, these gains help make up ground against AMD's RX 7900 XT, which still remains 4% faster in a pure raster scenario. Compared to last generation's flagship, the RTX 3090 Ti, the new Super card can beat it by a small margin of 4%, which is still impressive. You're basically getting last gen's x90 Ti performance with the x70 Ti Super. Compared to RTX 4070 Super, the performance uplift is 13% and the new card is 33% faster than the RTX 4070 non-Ti non-Super, too. The fastest card from Team Red, the Radeon RX 7900 XTX, is still 18% ahead, 22% at 4K—RTX 4080 Super is designed to rival this card.
