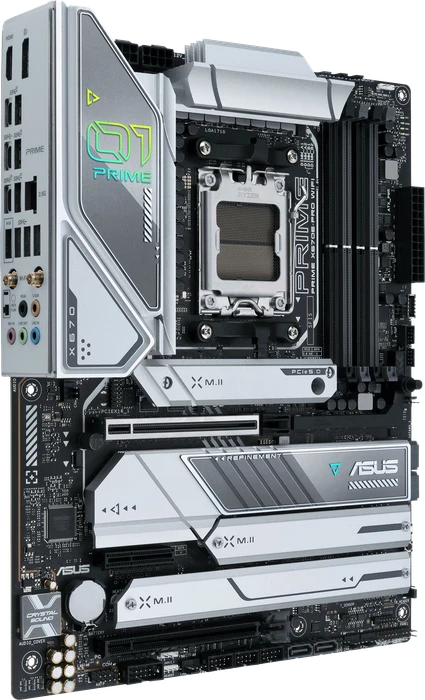

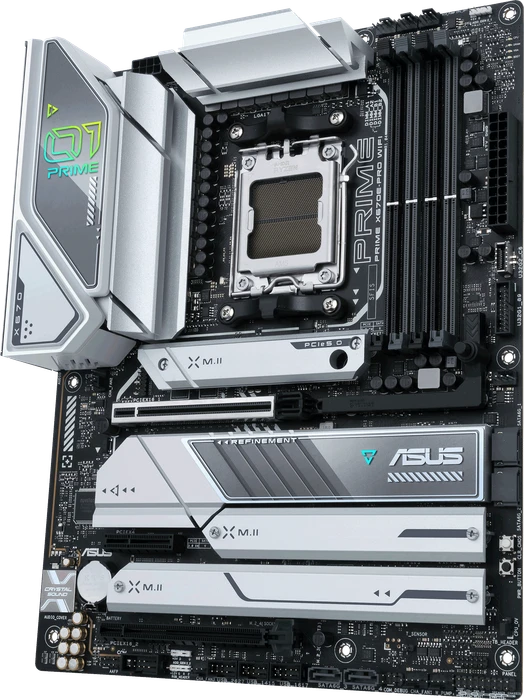

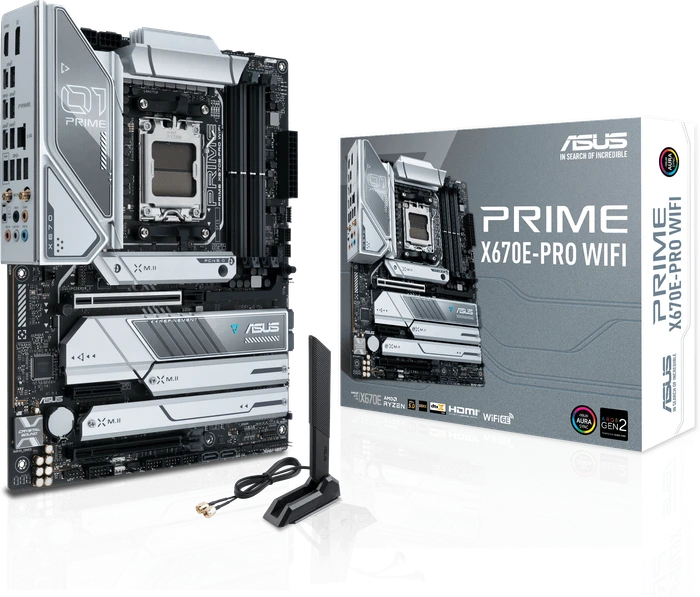

ASUS Prime X670E-Pro WIFI-CSM (AMD AM5)
- Formfaktor
- ATX
- Sockel
- AMD AM5
- Chipsatz
- AMD X670E
- CPU-Kompatibilität
- Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 192GB UDIMM Non-ECC+ECC
- RAM-Datenrate
- DDR5-5200 (Ryzen 7000/Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000 OC
- ECC-Unterstützung
- ja

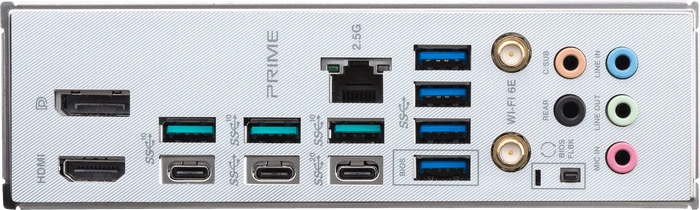

- Anschlüsse extern
- 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4
- M.2-Slots
- 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (X670E)
- Anschlüsse intern - USB
- 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 3x USB 2.0 Header 9-Pin (480Mb/s, 6x USB-A)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-10)
ASUS ROG Strix X670E-E Gaming WIFI (AMD AM5)
90MB1BR0-M0EAY0ASUS Prime X670E-Pro WIFI (AMD AM5)
90MB1BL0-M0EAY0ASUS TUF Gaming X670E-Plus WIFI (AMD AM5)
90MB1BK0-M0EAY0ASUS ROG Crosshair X670E Hero (AMD AM5)
90MB1BC0-M0EAY0ASUS ROG Strix X670E-A Gaming WIFI (AMD AM5)
90MB1BM0-M0EAY0ASUS ROG Strix X670E-F Gaming WIFI (AMD AM5)
90MB1BA0-M0EAY0ASUS ROG Strix X670E-I Gaming WIFI (AMD AM5)
90MB1B70-M0EAY0ASUS TUF Gaming X670E-Plus (AMD AM5)
90MB1BJ0-M0EAY0ASUS ProArt X670E-Creator WIFI (AMD AM5)
90MB1B90-M0EAY0Ähnliche Produkte (Top-10 in Mainboards)
MSI MAG B850 Tomahawk WIFI (AMD AM5)
7E53-001RGIGABYTE B550M Gaming X WIFI6 (AMD AM4)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0ASUS ROG Strix B850-F Gaming WIFI (AMD AM5)
90MB1J70-M0EAY0GIGABYTE B650 Eagle AX (AMD AM5)
GIGABYTE B650 Gaming X AX V2 (AMD AM5)
- Formfaktor
- ATX
- Sockel
- AMD AM5
- Chipsatz
- AMD X670E
- CPU-Kompatibilität
- Ryzen 7000, Ryzen 8000G, Ryzen 9000, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 192GB UDIMM Non-ECC+ECC
- RAM-Datenrate
- DDR5-5200 (Ryzen 7000/Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000 OC
- ECC-Unterstützung
- ja
- Anschlüsse extern
- 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 5x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek), 2x Antennenanschluss RP-SMA
- PCIe-Slots
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4
- M.2-Slots
- 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
- Sonstige Schnittstellen
- 4x SATA 6Gb/s (X670E)
- Anschlüsse intern - USB
- 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 3x USB 2.0 Header 9-Pin (480Mb/s, 6x USB-A)
- Anschlüsse intern - sonstige
- 1x seriell Header, 1x TPM Header, 1x Thunderbolt Header 13-Pin, 1x COM Debug Header, 1x Chassis Intrusion Header
- Anschlüsse intern - Kühlung
- 2x CPU-Lüfter 4-Pin PWM, 4x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Pumpe 4-Pin PWM, 1x Thermal-Sensor Header
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung
- 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches
- USB BIOS Flashback (extern), Clear-CMOS-Button (intern), Power-Button (intern)
- Audio
- Realtek ALC1220, DTS:X Ultra
- Netzwerk
- Realtek (2.5Gb/s)
- Grafik
- iGPU
- RAID-Level
- 0/1/10 (X670E)
- Wireless
- Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3 (AMD RZ608 [MediaTek MT7921K] oder AMD RZ616 [MediaTek MT7922])
- VRM-Design
- 14+2, 16 virtuelle CPU-Phasen (2x7+2), 9 reale CPU-Phasen (7+2)
- MOSFETs VCORE
- 14x 50A MP86992 (DrMOS) [ASUS: 70A]
- MOSFETs SOC/VCCGT
- 2x 50A MP86992 (DrMOS) [ASUS: 70A]
- PWM-Controller
- ASP2206 (MP2857, max. 12 Phasen)
- Beleuchtung
- N/A
- BIOS
- 1x 32MB (256Mb)
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (Segmentanzeige), White Build-kompatibel (PCB primär schwarz), 4x M.2-Passivkühler
- Garantie
- 3 Jahre inkl. CSM-Programm
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 27.09.2022, 13:34
-
Stand: 28.09.2022 .pdf [7.05 MB]
-
Stand: 28.09.2022 .pdf [7.44 MB]
-
Stand: 28.09.2022 .pdf [1.74 MB]
Bewertung für ASUS Prime X670E-Pro WIFI-CSM (AMD AM5)
Teilen Sie uns Ihre Meinung zu ASUS Prime X670E-Pro WIFI-CSM (AMD AM5) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
eteknix.com: ASUS Prime X670E-Pro WiFi Motherboard Review (translate)
I think ASUS have a lot to be proud of with their latest motherboard, and it fits the system I’ve always used when purchasing ASUS motherboards in the past. I look at the ROG XTREME and think “I want that motherboard” I start to save up some money, realise this I don’t want to spend nearly £1000 on a motherboard and go buy a PRIME or TUF series instead and live happily ever after. However, after doing that for a few generations, and seeing the performance here today, I think I’d just b-line right to the PRIME X670E-PRO WIFI as it is one of the best performing and one of the most consistent motherboards we’ve tested.
-
overclock3d.net: ASUS Prime X670E-Pro WiFi Review (translate)
The ASUS Prime X670E-Pro WiFi definitely finds itself in the latter of those two camps. Primarily (heh) because as part of the regular ASUS range instead of their famous Republic of Gamers brand, it is a motherboard shorn of those flashy considerations and with a price tag to match. We've seen loads of Prime motherboards in our time and they usually were the white model in the ASUS range, and so earned a place in the hearts of all those who had grown weary of a black PCB in the depths of their rig. This time around ASUS have, instead, moved the Prime from white to a light silvery colour. How much you can tolerate this is naturally a matter of personal preference, but we think it's a bit of a misstep. Anyone who wants a white motherboard will be disappointed at how not white it is, and those who like the dark system with nothing but RGB lighting will find it too bright. The niche of people who neither want a white based system nor a black one is a sliver, particularly as all the accoutrements that make up a system are usually found in one of those two colours. There aren't many silver fans or AIOs on the market for one thing.
