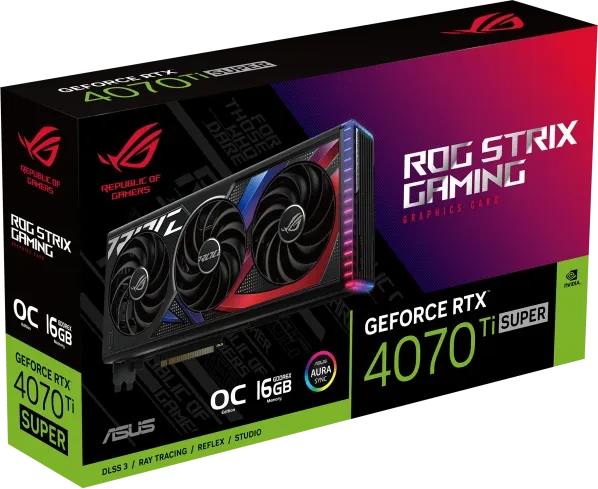

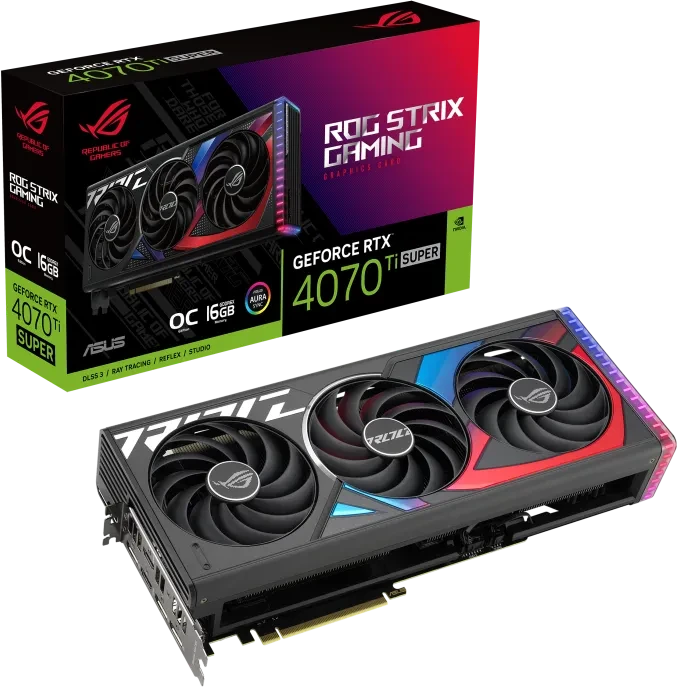

ASUS ROG Strix GeForce RTX 4070 Ti SUPER OC, ROG-STRIX-RTX4070TIS-O16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz (Standard-Profil), 2310MHz (OC-Profil)
- Takt Boost
- 2670MHz (Standard-Profil), 2700MHz (OC-Profil)
- Übertaktung
- +90MHz Boost (OC-Profil), +60MHz Boost (Standard-Profil)
- Kühlung
- 3x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 2x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), Lüftersteuerung (2x 4-Pin), Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
- Gesamthöhe
- Quad Slot (3.15 Slots)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00ASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFGIGABYTE Radeon RX 9070 XT Gaming OC 16G, 16GB GDDR6, 2x HDMI, 2x DP
GV-R9070XTGAMING OC-16GDASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00MSI GeForce RTX 5070 Ti 16G Gaming Trio OC, G507T-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-240RASUS Prime Radeon RX 9070 XT White OC Edition, PRIME-RX9070XT-O16G-WHITE, 16GB GDDR6, HDMI, 3x DP
90YV0L75-M0NA00- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz (Standard-Profil), 2310MHz (OC-Profil)
- Takt Boost
- 2670MHz (Standard-Profil), 2700MHz (OC-Profil)
- Übertaktung
- +90MHz Boost (OC-Profil), +60MHz Boost (Standard-Profil)
- Kühlung
- 3x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 2x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Default Mode/OC Mode), Lüftersteuerung (2x 4-Pin), Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
- Gesamthöhe
- Quad Slot (3.15 Slots)
- Abmessungen
- 336x150x63mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 353 TOPS (FP8), 176.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 706 TOPS (FP8), 353 TOPS (FP16)
- GPU-Rechenleistung
- 45.62 TFLOPS (FP16), 45.62 TFLOPS (FP32), 0.71 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-275-A1)
- Chip-Ausbau
- 82.5% aktive Recheneinheiten (66/80 SM)
- Chip-Konfiguration
- 66SM (8448SP/264TMU/96ROP), 66 RT-Cores, 264 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 176.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 24.01.2024, UVP: 799 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 Ti SUPER - 16GB GDDR6X - Desktop
- Segment
- Consumer
- Letztes Preisupdate
- -
- Gelistet seit
- 09.01.2024, 11:25
6 Bewertungen für ASUS ROG Strix GeForce RTX 4070 Ti SUPER OC, ROG-STRIX-RTX4070TIS-O16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu ASUS ROG Strix GeForce RTX 4070 Ti SUPER OC, ROG-STRIX-RTX4070TIS-O16G-GAMING, 16GB GDDR6X, 2x HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
techpowerup.com: ASUS GeForce RTX 4070 Ti Super Strix OC Review (translate)
The Strix is the ASUS flagship model for the RTX 4070 Ti Super, you get a powerful triple-slot, triple-fan cooler with an all-metal construction. Also included is a factory overclock to a rated boost of 2670 MHz or +3%. Averaged over the 25 games in our test suite, at 1440p, we find the card only 9% faster than 4070 Ti non-Super, which is much less than expected. At 4K, the gains are slightly bigger with 13%, and the ASUS Strix OC comes with a large factory OC. That's definitely not the 15%+ jump that we got with the RTX 4070 Super. Still, these gains help make up ground against AMD's RX 7900 XT, which the ASUS Strix can match in a pure raster scenario. Compared to last generation's flagship, the RTX 3090 Ti, the new Super card can beat it by a small margin of 7%, which is still impressive. You're basically getting last gen's x90 Ti performance with the x70 Ti Super. Compared to RTX 4070 Super, the performance uplift is 16% and the new card is 33% faster than the RTX 4070 non-Ti non-Super, too. The fastest card from Team Red, the Radeon RX 7900 XTX, is still 13% ahead, 17% at 4K—RTX 4080 Super is designed to rival this card.
