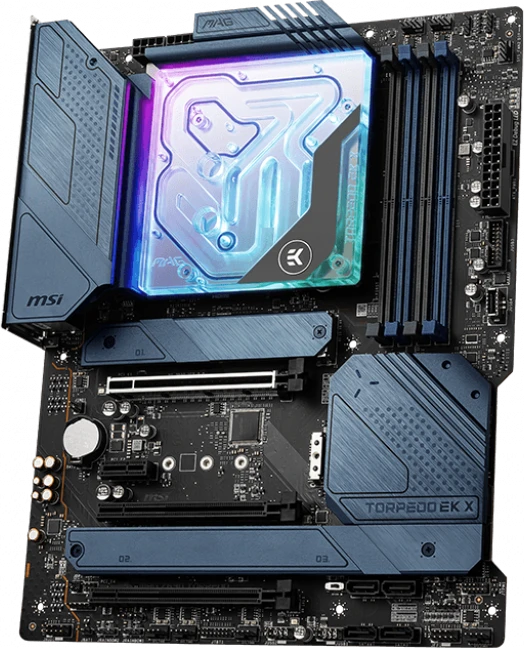

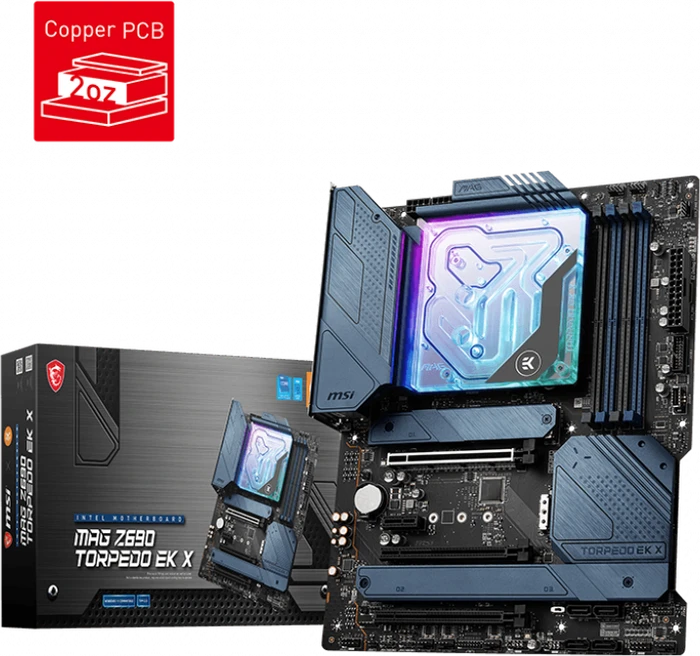

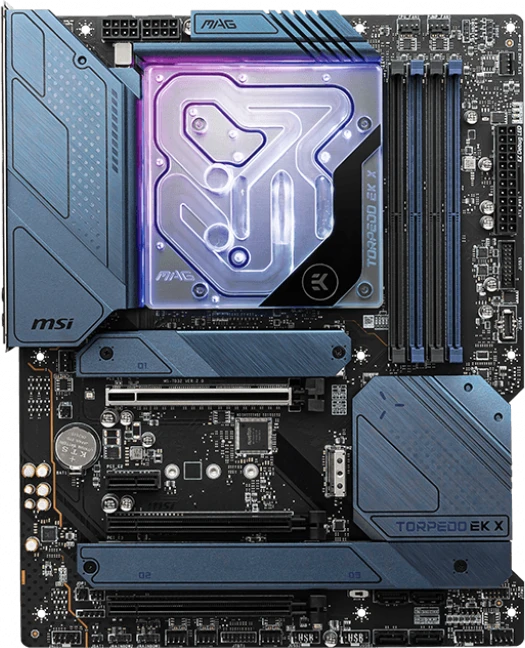

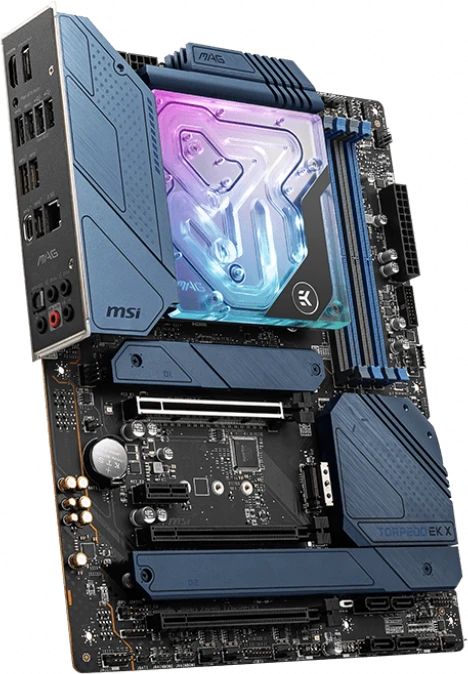

MSI MAG Z690 Torpedo EK X (Intel 1700)
- Formfaktor
- ATX
- Sockel
- Intel 1700 (LGA1700)
- Chipsatz
- Intel Z690
- CPU-Kompatibilität
- Celeron G6000, Pentium Gold G7000, Core i-12000, Core i-13000, Core i-14000, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 192GB UDIMM Non-ECC
- RAM-Datenrate
- DDR5-4800 (Celeron G6000/Pentium Gold G7000/Core i-12000), DDR5-4800/DDR5-5600 (Core i-13000/Core i-14000), max. DDR5-6400 OC
- ECC-Unterstützung
- nein
- Anschlüsse extern

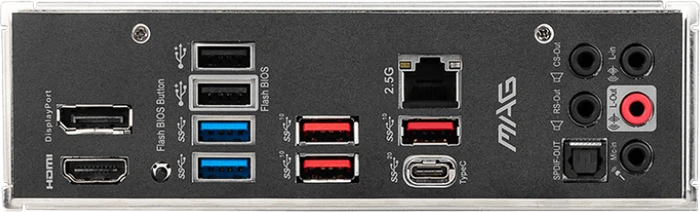

- 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 3x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s, PCH), 2x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out, 5x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V)
- PCIe-Slots
- 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1), 1x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z690)
- Anschlüsse intern - USB
- 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C, Z690), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A, Z690), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
Bitte die EU-Übersicht verwenden oder ggf. die Filterkriterien ändern.
Weitere Varianten (Top-10)
MSI MAG Z690 Tomahawk WIFI (Intel 1700)
7D32-008RMSI PRO Z690-A WIFI (Intel 1700)
7D25-017RMSI MAG Z690 Torpedo (Intel 1700)
7D32-001RMSI PRO Z690-P DDR4 (Intel 1700)
7D36-004RMSI PRO Z690-A DDR4 (Intel 1700)
7D25-002RMSI PRO Z690-A WIFI DDR4 (Intel 1700)
7D25-012RMSI PRO Z690-A (Intel 1700)
7D25-011RMSI MAG Z690M Mortar WIFI (Intel 1700)
7D42-014RMSI MAG Z690 Tomahawk WIFI DDR4 (Intel 1700)
7D32-002RÄhnliche Produkte (Top-10 in Mainboards)
MSI MAG B850 Tomahawk WIFI (AMD AM5)
7E53-001RGIGABYTE B550M Gaming X WIFI6 (AMD AM4)
ASUS TUF Gaming B850-Plus WIFI (AMD AM5)
90MB1J30-M0EAY0GIGABYTE B850 AORUS Elite WIFI7 (AMD AM5)
ASRock Z790 PG Lightning (Intel 1700)
90-MXBKA0-A0UAYZASRock Phantom Gaming B850I Lightning WiFi (AMD AM5)
90-MXBQR0-A0UAYZASUS ROG Strix B850-F Gaming WIFI (AMD AM5)
90MB1J70-M0EAY0ASUS ROG Strix B550-F Gaming (AMD AM4)
90MB14S0-M0EAY0GIGABYTE B650 Gaming X AX V2 (AMD AM5)
GIGABYTE B850 Gaming WIFI6 (AMD AM5)
- Formfaktor
- ATX
- Sockel
- Intel 1700 (LGA1700)
- Chipsatz
- Intel Z690
- CPU-Kompatibilität
- Celeron G6000, Pentium Gold G7000, Core i-12000, Core i-13000, Core i-14000, CPU-Kompatibilitätsliste
- RAM
- 4x DDR5 DIMM-Slots, Dual Channel, max. 192GB UDIMM Non-ECC
- RAM-Datenrate
- DDR5-4800 (Celeron G6000/Pentium Gold G7000/Core i-12000), DDR5-4800/DDR5-5600 (Core i-13000/Core i-14000), max. DDR5-6400 OC
- ECC-Unterstützung
- nein
- Anschlüsse extern
- 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s, PCH), 3x USB-A 3.1 (10Gb/s, PCH), 2x USB-A 3.0 (5Gb/s, PCH), 2x USB-A 2.0 (480Mb/s), 1x Toslink S/PDIF Out, 5x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V)
- PCIe-Slots
- 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1), 1x PCIe 3.0 x1
- M.2-Slots
- 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
- Sonstige Schnittstellen
- 6x SATA 6Gb/s (Z690)
- Anschlüsse intern - USB
- 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C, Z690), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A, Z690), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
- Anschlüsse intern - sonstige
- 1x TPM Header, 1x Thunderbolt Header 15-Pin (MSI), 1x Chassis Intrusion Header, 1x MSI Tuning Controller Header Header (MSI JDASH)
- Anschlüsse intern - Kühlung
- 1x CPU-Lüfter 4-Pin PWM, 1x Pumpe 4-Pin PWM, 6x Lüfter 4-Pin PWM
- Anschlüsse intern - Stromversorgung
- 1x 24-Pin ATX, 2x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung
- 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
- Buttons/Switches
- USB BIOS Flashback (extern), LED-Switch (intern)
- Audio
- Realtek ALC4080
- Netzwerk
- Intel I225-V (2.5Gb/s)
- Grafik
- iGPU
- RAID-Level
- 0/1/5/10 (Z690)
- VRM-Design
- 16+1, 17 virtuelle CPU-Phasen (2x8+1), 9 reale CPU-Phasen (8+1)
- MOSFETs VCORE
- 16x 70A MP87992 (SPS)
- MOSFETs SOC/VCCGT
- 1x 70A MP87992 (SPS)
- PWM-Controller
- MP2960 (max. 9 Phasen)
- Beleuchtung
- RGB, 1 Zone (Chipsatz-Kühler)
- BIOS
- 1x 32MB (256Mb)
- Besonderheiten
- Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/O-Blende integriert, 3x M.2-Passivkühler, vorinstallierter Wasserkühler (CPU/VRM), unterstützt AMD 2-Way-CrossFireX (x16/x4)
- Garantie
- 3 Jahre (Info)
- USB-Schreibweise
- Link
- Letztes Preisupdate
- -
- Gelistet seit
- 22.10.2021, 12:48
-
Stand: 14.01.2022 .pdf [899.91 KB]
1 Bewertung für MSI MAG Z690 Torpedo EK X (Intel 1700)
Teilen Sie uns Ihre Meinung zu MSI MAG Z690 Torpedo EK X (Intel 1700) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
guru3d.com: MSI MAG Z690 Torpedo EK X - EK launching a Torpedo in water (translate)
MSI MAG Z690 TORPEDO EK X is a streamlined and intriguing ATX motherboard that migrated towards DDR5 with a bucketload of M2 options and PCIe Gen 5.0. The Torpedo looks stylish and simple, which is what you'll want as the focus needs to be that monoblock, which you do need to add into your own liquid cooling loop of course. The sheer reality is that with today's build quality of motherboards the VRM does not heat up that much anymore, but keeping it chilled with that monoblock of course always brings down the temps a notch further. But yeah, it is not really needed. Aesthetics wise the look is fantastic with the aRGB integration + you got your widespread essential element cooling covered. As an end result, we have a well-designed motherboard that supports all of the Z690 platform's characteristics + a DDR5 and PCIe Gen 5.0 interface. The storage, network, and audio solutions all perform admirably. To recap, if you're looking for a motherboard that delivers the performance of Intel's 12th generation microprocessors, this one will not disappoint. We believe that the board is an attractive proposition for 399 EUR with the EK monoblock included. Of course, you need to add or add it into a liquid cooling loop, and that's where the real money is to be found. Definitely a top pick.
